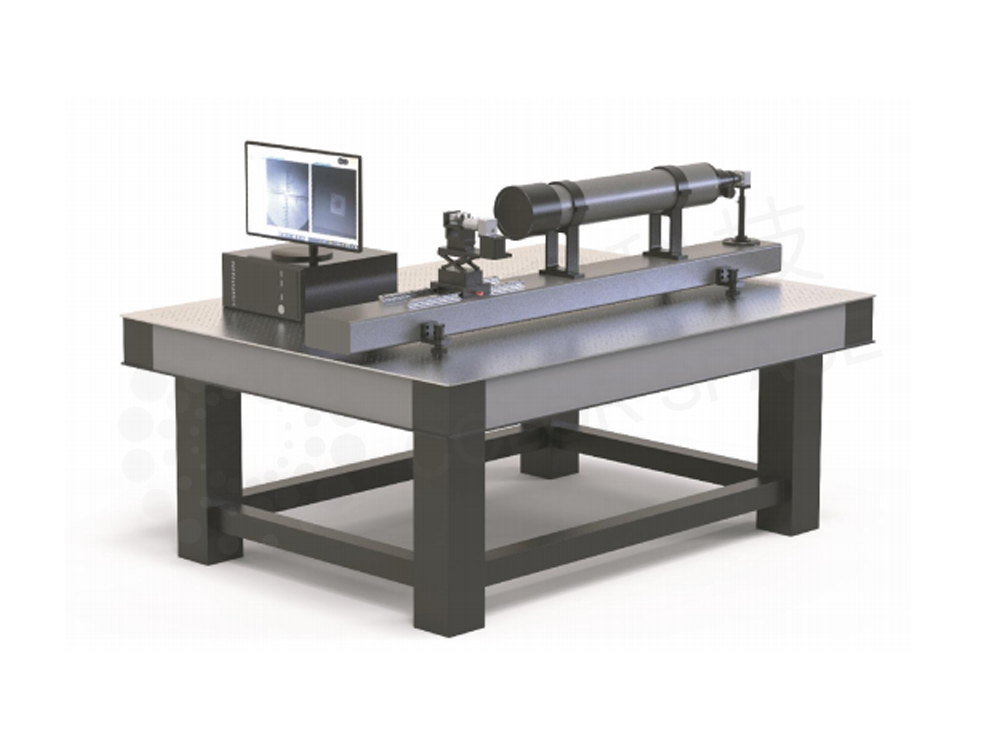

1013 Laser Optical Axis Calibration Instrument

The 1013 Laser Optical Axis Calibration Instrument is designed for online alignment of transmit and receive optical axes in 905nm laser ranging and LiDAR optical systems. It is suitable for optical system assembly, axis calibration, and laboratory testing applications.

Featuring a transmission-type optical configuration, the instrument provides stable optical performance and compatibility for a wide range of laser and electro-optical systems.

Features

• High-Precision Optical Axis Alignment：With parallelism of ≤10 arcsec, the system supports precise alignment of transmit and receive optical channels.
• Optimized for 905nm Applications：Designed for 905nm wavelength applications commonly used in laser ranging and LiDAR systems.
• Transmission-Type Optical Design：The transmission optical structure offers stable performance and convenient integration for laboratory and production environments.
• Suitable for Online Calibration：Supports online optical alignment and system adjustment during assembly and testing processes.
• Large Effective Aperture：The Ø130 mm effective aperture accommodates various optical system configurations.

Specifications
