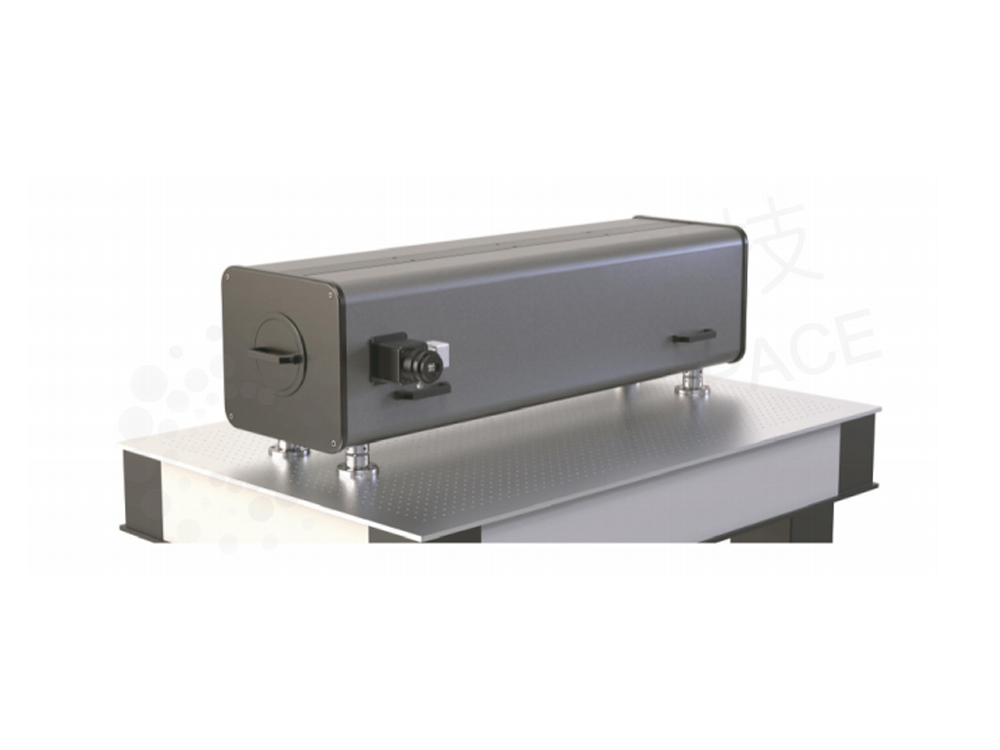

Multi-Band Laser Optical Axis Calibration Instrument

The 1515LB Multi-Band Laser Optical Axis Calibration Instrument is designed for multi-spectral collimated beam generation, focused beam detection, and transmit/receive optical axis alignment applications. It is suitable for laser, infrared, and electro-optical system calibration, assembly, and laboratory testing.

The instrument features an off-axis Newtonian reflective optical configuration with wide spectral coverage, large effective aperture, and high optical parallelism for precision alignment applications.

Features

• Wide Spectral Coverage：Supports operating wavelengths from 0.4 to 14 μm, covering visible, near-infrared, and infrared applications.
• Off-Axis Newtonian Reflective Design：The off-axis reflective optical structure helps reduce central obstruction and improves optical efficiency.
• Large Effective Aperture：The Ø150 mm aperture accommodates a wide range of laser and infrared optical systems.
• High Parallelism Performance：Parallelism of ≤10 arcsec supports precise transmit and receive optical axis alignment.

• Suitable for Multi-Wavelength Alignment：Designed for alignment and testing of multi-band laser and electro-optical systems.

Specifications
