Product description: The ZYH Series Surface Blackbody Source is designed for infrared imaging calibration and thermal imaging system evaluation. Featuring PID automatic temperature control, high emissivity, stable thermal
INQUIRY

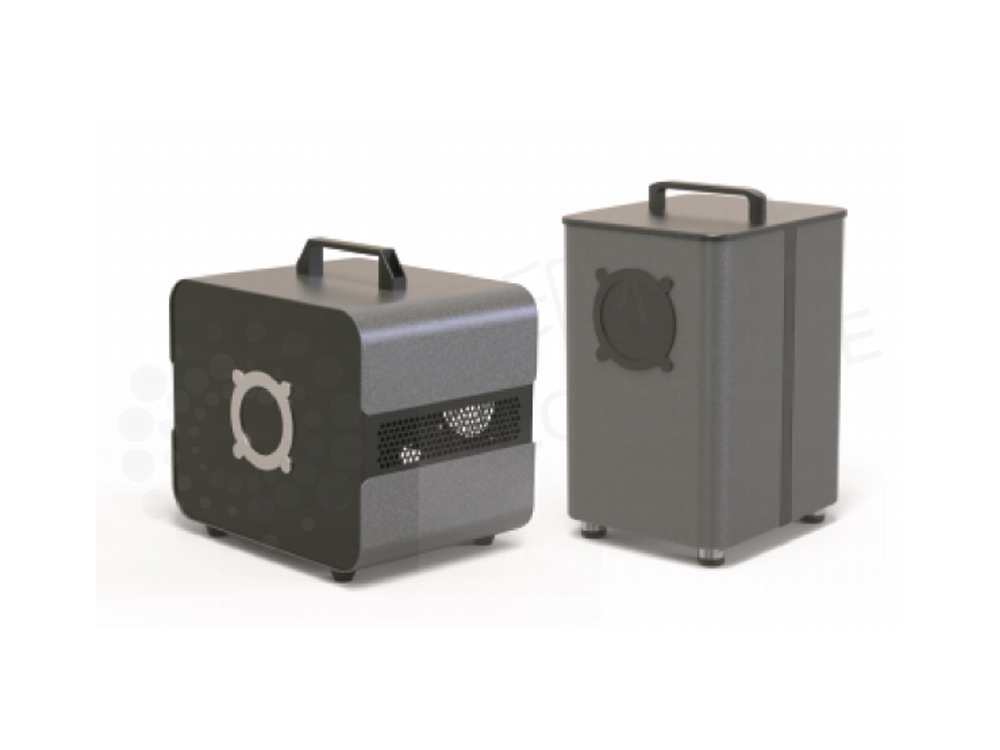

ZYH Series Surface Blackbody Source

The ZYH Series Surface Blackbody Source is designed for infrared imaging calibration systems. Combined with infrared collimation optics and infrared targets, it can be used for infrared optical axis alignment, thermal imaging system testing, and imaging performance evaluation.

Featuring PID automatic temperature control, the system provides stable thermal radiation output, high emissivity, and reliable temperature uniformity for various infrared testing applications.

It is suitable for infrared imaging R&D, laboratory testing, industrial inspection, and scientific research applications.

Surface Blackbody Source

Features

High Emissivity Radiation Surface：The emissivity of the radiation surface is ≥0.95, providing a stable infrared radiation reference source.
PID Automatic Temperature Control：PID-based temperature control ensures stable operation and improved testing repeatability.
Stable Thermal Performance：Temperature stability is maintained within the greater of 0.15°C or 0.15% of the source temperature over 10 minutes.
Excellent Temperature Uniformity：Temperature uniformity within the central 2/3 radiation area is maintained within the greater of 0.2°C or 0.2% of the source temperature.
Multiple Configuration Options：Different center-height configurations are available for compatibility with various infrared optical testing platforms.

Specifications

Parameter	800N-2D	800N-4D	ZYH-135M	800N-7D
Center Height	135mm	175mm	225mm	265mm
Weight	6KG	3.5KG	4KG	5KG
Radiation Surface	Ø 50mm	Ø 50mm	Ø 50mm	Ø 50mm
Operating Temperature	Ambient +5°C to 500°C	Ambient +5°C to 500°C	Ambient +5°C to 500°C	Ambient +5°C to 500°C
Temperature Resolution	0.1℃	0.1℃	0.1℃	0.1℃
Temperature Control	PID Automatic Control	PID Automatic Control	PID Automatic Control	PID Automatic Control
Operation Method	Instrument Panel	Instrument Panel	Instrument Panel	Instrument Panel
Emissivity	≥0.95	≥0.95	≥0.95	≥0.95
Temperature Stability	Greater of 0.15°C or 0.15% of source temperature (within 10 min)
Temperature Uniformity	Greater of 0.2°C or 0.2% of source temperature (within central 2/3 area)
Power Supply	200V AC 10A800W	200V AC 10A800W	200V AC 10A800W	200V AC 10A800W
