Wide-Angle Camera Test Chart Mount

Brand：ColorSpace
Product description: The ColorSpace wide-angle camera test chart mount features three adjustable chart supports, caster wheels, and compatibility with 50 × 50 cm charts. Designed for reflective SFR testing and camera imag
INQUIRY

Wide-Angle Camera Test Chart Mount

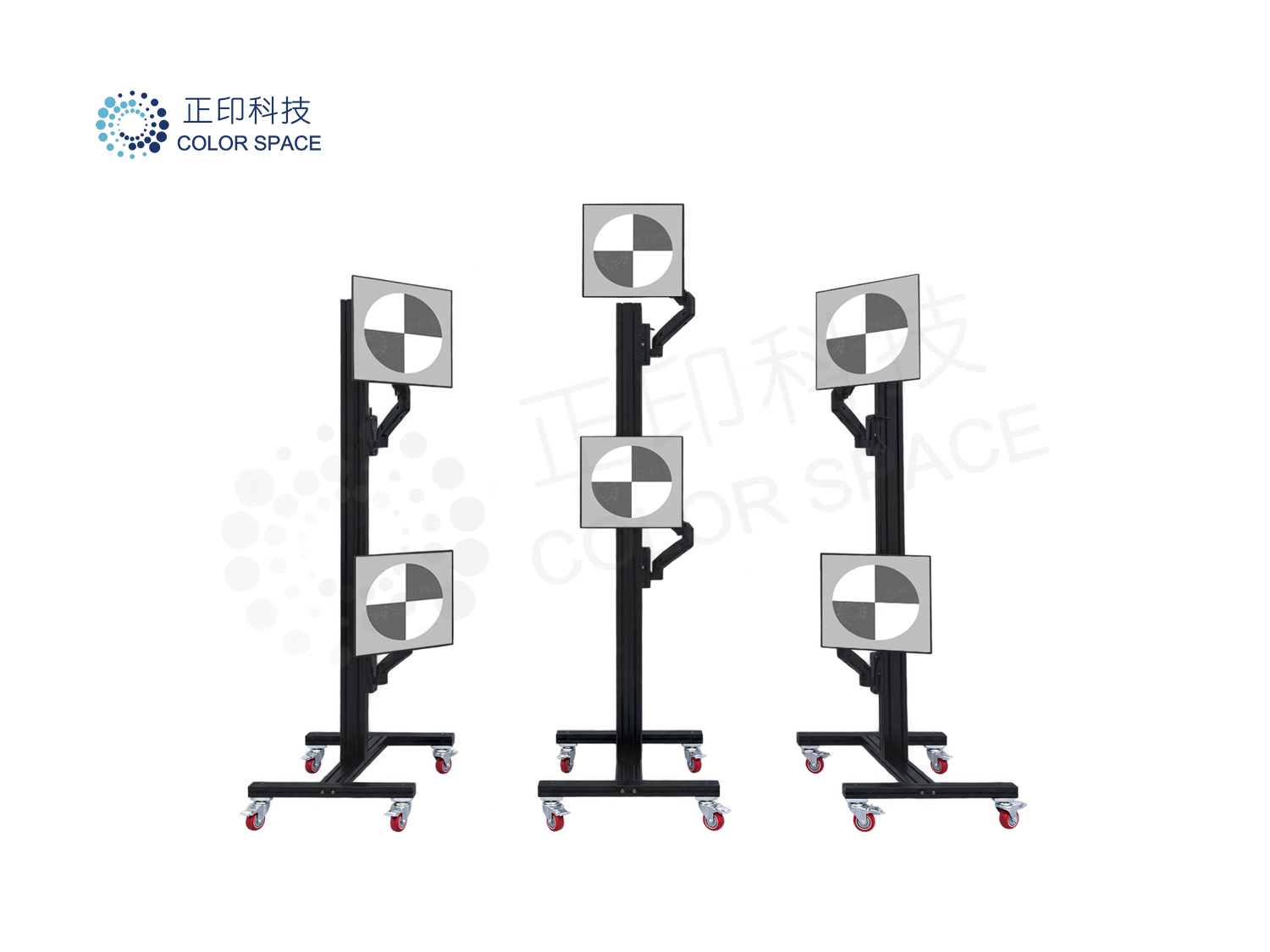

The Wide-Angle Camera Test Chart Mount is a fixture designed to position test charts for camera image quality evaluation. Its three-support layout, arranged on the left, center, and right, accommodates reflective SFR test charts and helps establish test setups for evaluating the sharpness and other imaging parameters of wide-angle cameras.

The mount stands 2.1 m tall and is equipped with caster wheels for movement in multiple directions. The chart mounting positions can be adjusted vertically, and the chart angles can be changed to suit different test configurations. The system accommodates test charts measuring 50 × 50 cm, with chart capacity depending on the support configuration.

Technical Specifications

Parameter	Wide-Angle Camera Test Chart Mount
Support Configuration	Three supports: left, center, and right
Stand Height	2.1m
Compatible Chart Size	50 × 50 cm
Mobility	Caster wheels for multidirectional movement
Adjustment	Vertical chart positioning and angle adjustment
Chart Mounting Capacity	Multiple charts, depending on support configuration
Primary Application	Wide-angle camera sharpness and other imaging parameter tests
