CS-PJ-CA Series High-Speed Motion Blur Test System

For high-speed motion blur and trailing performance testing of cameras and imaging systems

In camera, imaging device, and other imaging system testing, high relative motion between the subject and the camera can cause motion blur or trailing artifacts in captured images. Factors such as exposure time, image processing, and overall system response may affect imaging performance under these conditions.

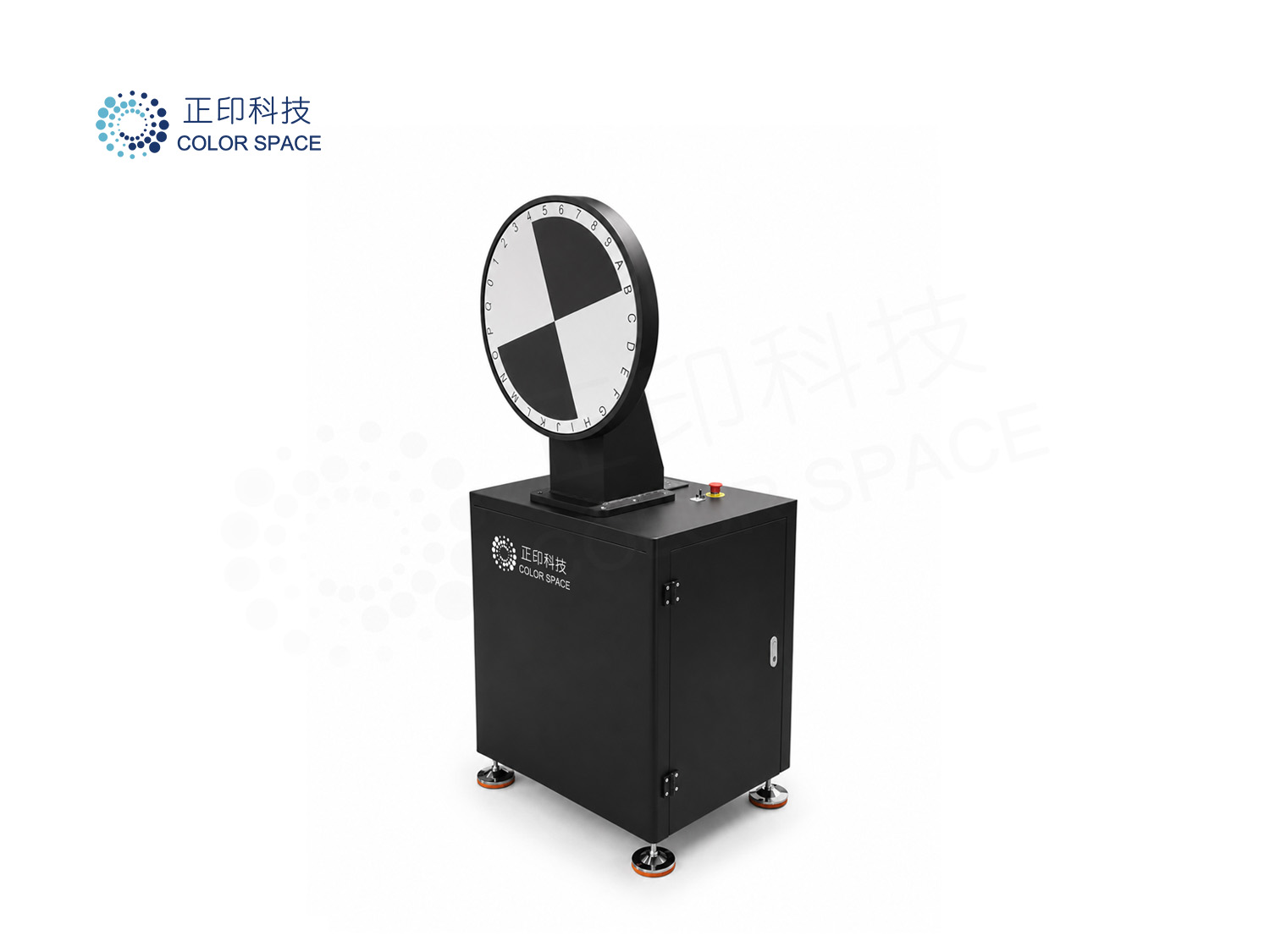

The CS-PJ-CA Series High-Speed Motion Blur Test System uses a large-diameter high-speed rotating disc to establish controlled motion conditions for testing. With a 600 mm diameter rotating disc and a maximum speed of 320 km/h, the system can be used for motion blur and trailing-related testing of cameras and other imaging systems under high-speed motion conditions.

The system provides precise control of the rotating speed, with speed positioning points available for speed accuracy verification, helping establish stable and repeatable motion conditions for high-speed motion blur testing.

600 mm large-diameter rotating disc | Up to 320 km/h | High-speed motion blur testing

Why Test Motion Blur Under High-Speed Motion？

Motion blur is not determined by camera resolution alone.

When there is relative motion between the camera and the subject, the subject continues to move during the exposure period. This movement can appear in the captured image as blur or trailing along the direction of motion.

For different types of imaging products, imaging performance under high-speed motion conditions can be affected by factors such as:

⦁ Exposure time

⦁ Image sensor characteristics

⦁ Shutter operation

⦁ ISP image processing

⦁ Motion compensation and related algorithms

⦁ Overall camera system response

For product development and image quality evaluation, it is therefore important to establish repeatable and controllable motion conditions and observe how the imaging system performs at different motion speeds.
The CS-PJ-CA Series provides a controlled high-speed motion environment using a high-speed rotating target, supporting motion blur and trailing-related testing for cameras and other imaging systems.

600 mm High-Speed Rotating Disc for Controlled Motion Testing

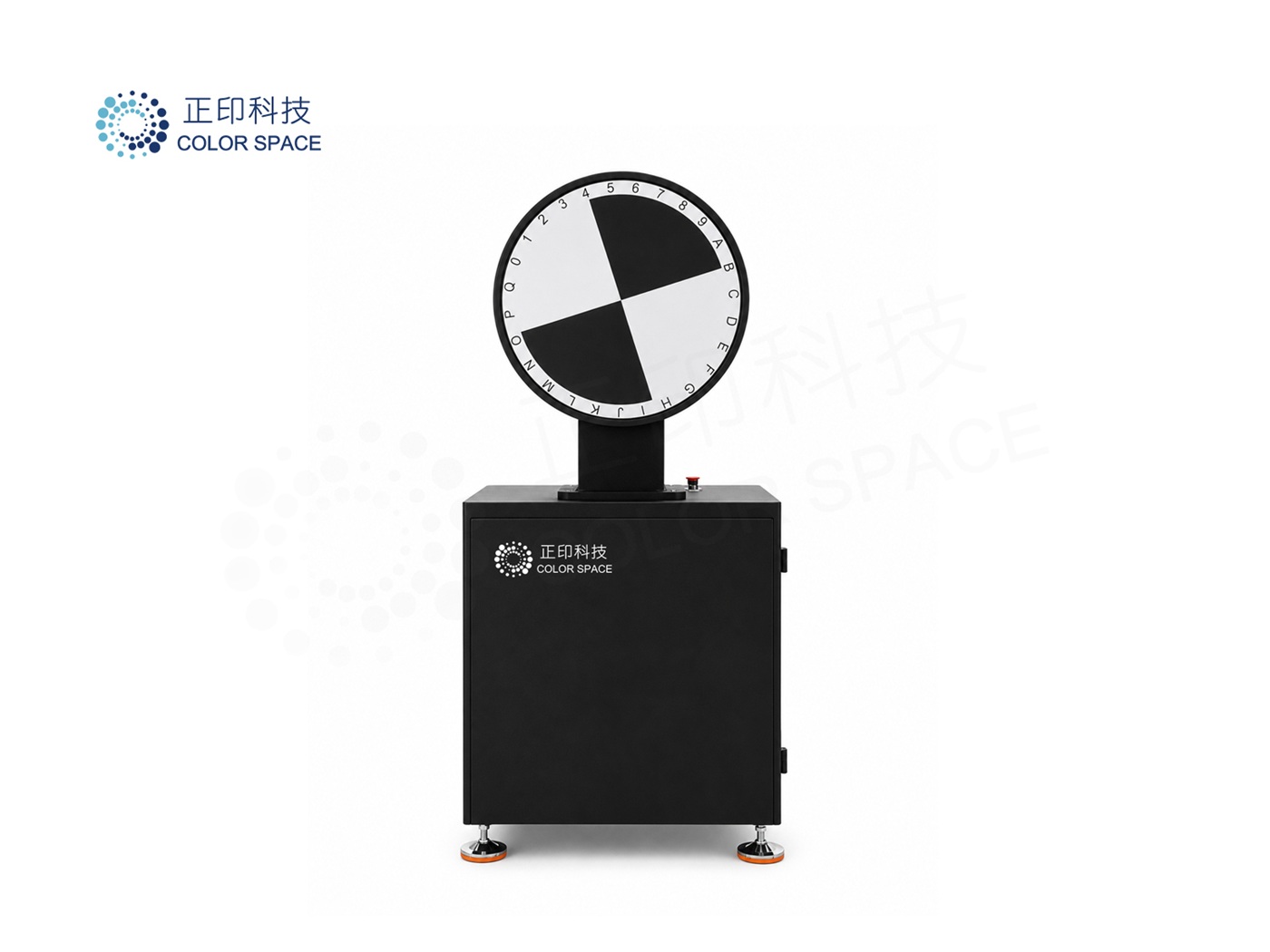

The CS-PJ-CA Series uses a 600 mm diameter rotating disc as the motion target carrier.
Designed for motion blur testing at higher motion speeds, the system supports a maximum rotating speed of:320 km/h
By controlling the rotating speed, different motion conditions can be established to evaluate the imaging performance of the camera under test at different high-speed motion conditions.

Specifications

Parameter	High-Speed Motion Blur Test System
Model	CS-PJ-CA Series
Rotating disc diameter	600mm
Maximum speed	320 km/h
Rotating speed accuracy	≤ ±0.2 km/h
Test target / test chart	SFRreg Chart
Dimensions	800mm × 600mm × 1700mm
Power supply	AC 220 V ±5%
Power consumption	Approx. 2.2kw
Applications	⦁ Cameras and imaging devices ⦁ Automotive cameras and in-vehicle imaging systems ⦁ Network cameras ⦁ Industrial cameras ⦁ Security and surveillance cameras ⦁ Other imaging systems operating under high-speed motion conditions

Establish Controlled High-Speed Motion Conditions for Camera Testing
If you are conducting motion blur testing for cameras, imaging devices, or other imaging systems, the appropriate test equipment can be selected according to the product under test, required motion speed, and test methodology.

Contact us for CS-PJ-CA Series product information, technical specifications, and testing solutions.
