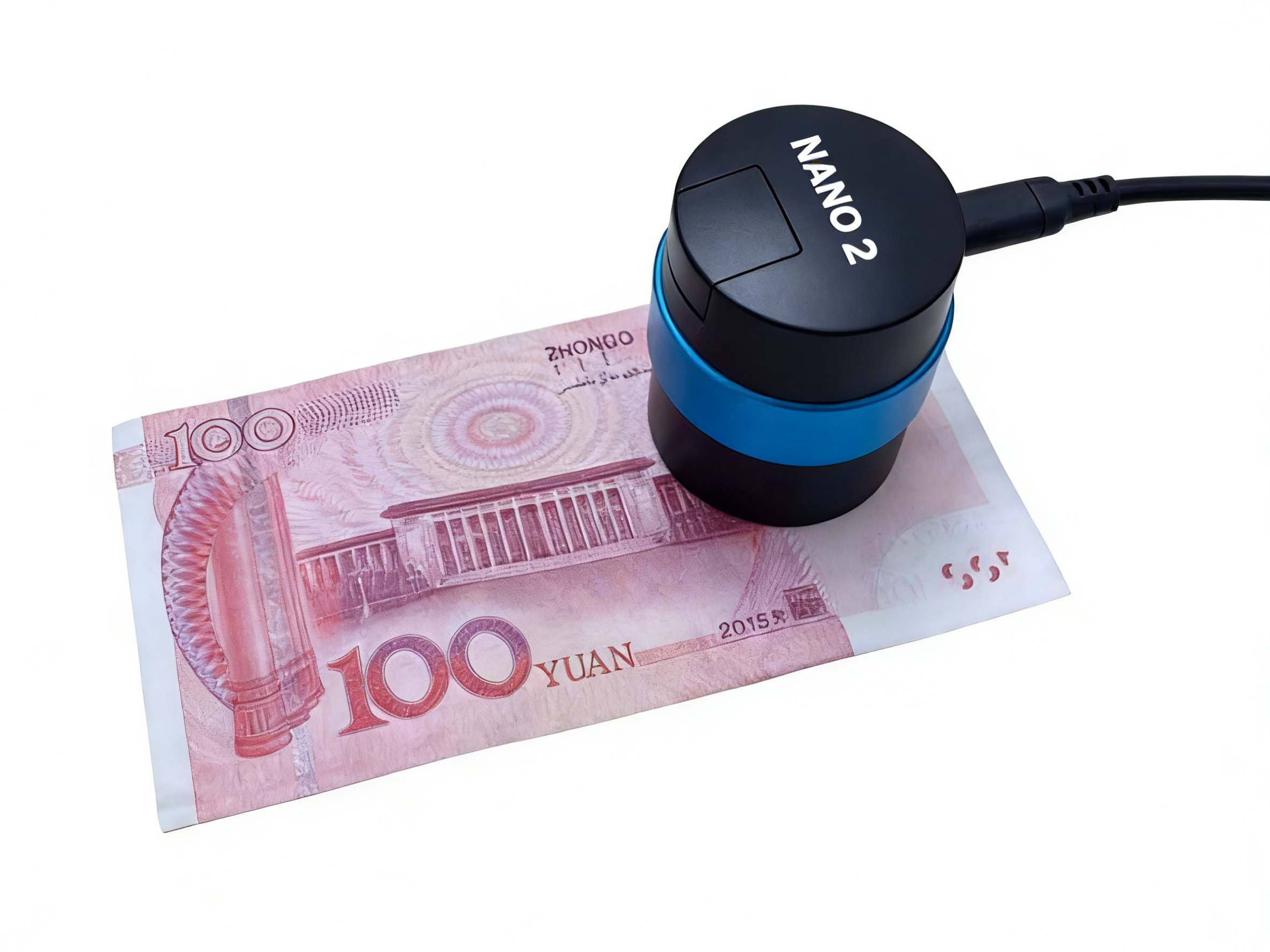

COLORCATCH NANO 2 Smart Colorimeter_ Portable Imaging Color Measurement Device for Textured Surfaces

COLORCATCH NANO 2 is a portable smart colorimeter designed for accurate color measurement on textured, reflective and non-uniform surfaces.
By combining imaging-based measurement technology with advanced optical design, it delivers reliable color data where conventional point colorimeters often struggle.

The device supports Bluetooth connection to mobile and desktop platforms and provides intuitive visualization of measurement results, making it suitable for professional color inspection, comparison and communication.

Key Features & Advantages

1. Imaging-based Color Measurement

Advanced optical probe design minimizes gloss and stray light, improving color accuracy on plastics, coatings and textured materials.

2. Multi-pixel Color Analysis

Analyzes more than 50,000 pixels per measurement, automatically removing shadows and contaminants to extract true dominant colors.

3. Visualized Measurement Results

Built-in camera allows users to clearly identify the measured area, reducing errors when working with small patterns or fine details.

4. Fast Dominant Color Extraction

Up to 5 dominant colors extracted with one click, supported by a 6.25× optical magnification system.

5. Built-in Calibration Design

Integrated calibration structure ensures long-term stability and consistent measurement performance.

6. Digital Color Application

Measured colors can be directly applied to digital images or scenes, accelerating color evaluation and decision-making.

---

Technical Specifications

Model	NANO 2 Smart Colorimeter
Measuring Area	0.36mm~ 8mm
Dominant Colors	Up to 5
Light Source	9 × D65 LED
Sensor	CCD camera, 224 × 224 pixels
Geometry	45 ° / 0 °
Inter-instrument Agreement	△E≤0.30
Battery	400 mAh rechargeable lithium battery
Operating Time	4–6 hours，Approx. 300 days（Standby Time）
Charging Time	≤6 hours
Size	51mm × 51mm
Weight	approx. 60 g

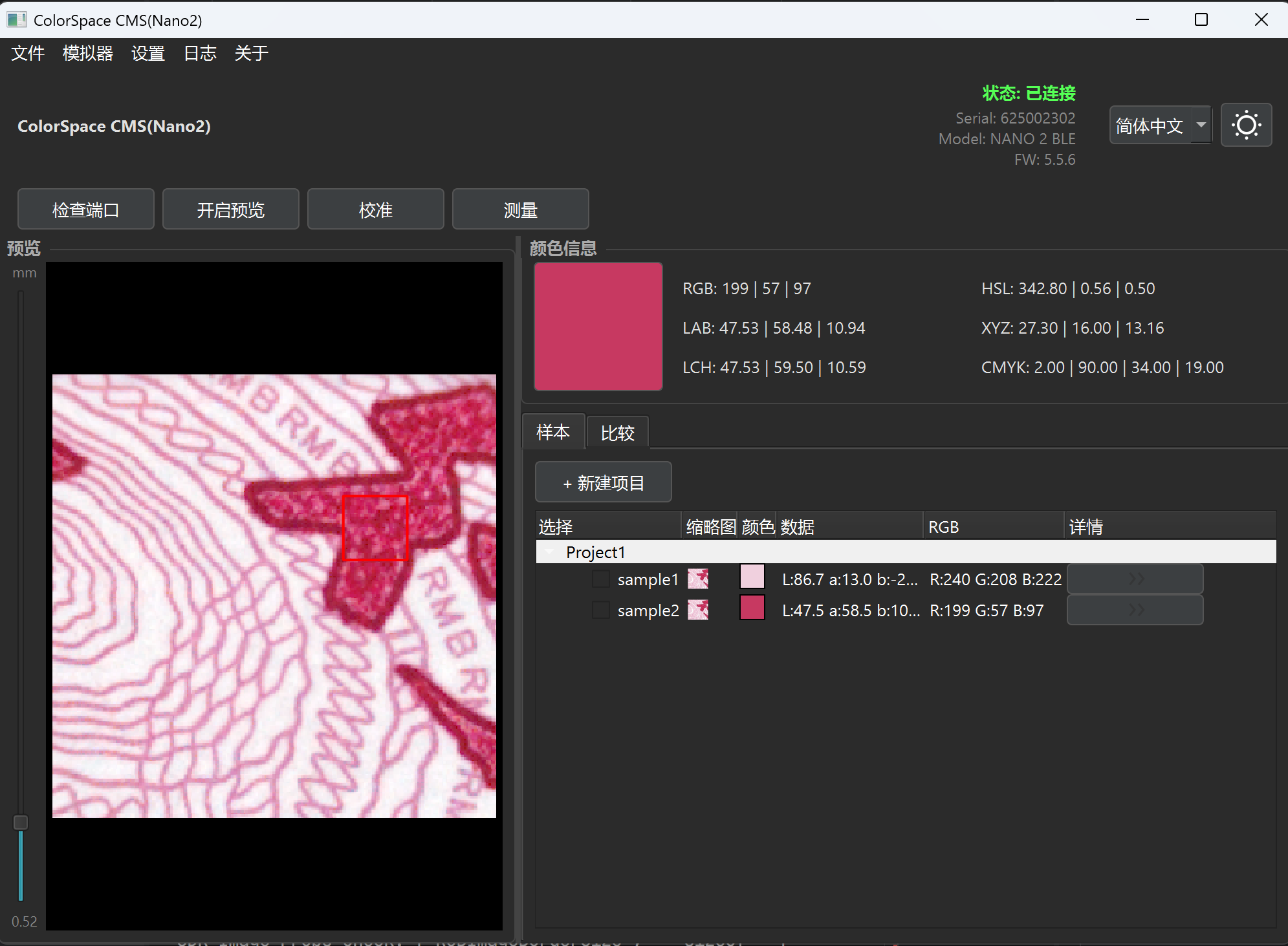

Software	ColorSpace CMS(NANO2)
System & Accessories	· Compatible Systems: Smartphones, tablets, and desktop software     · Standard Accessories: Protective case, USB-C data cable, USB-C charging adapter
Applications	Design, display, printing, materials, inspection

Related Reading:

1. ColorSpace CMS(NANO 2)Software User Guide
