Imaging System Solution

Ultra-high resolution optical lens

Model：CS- CL-8K001
Ultra-high-definition smart eyes No. 1

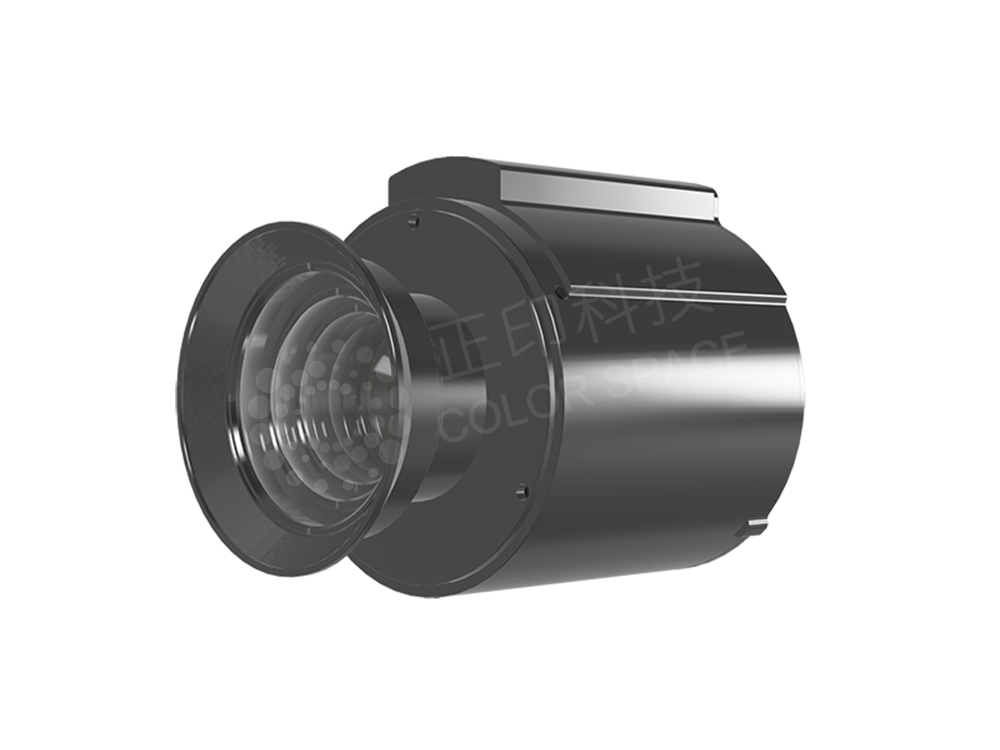

Product description: CS-CL-8K001 ultra-high resolution optical lens uses multiple aspherical lenses to effectively reduce phase difference and suppress chromatic aberration. It has an ultra-large aperture and a 72° horizo
INQUIRY

CS-CL-8K001 ultra-high resolution optical lens——meeting various monitoring scenarios

CS-CL-8K001 ultra-high resolution optical lens uses multiple aspherical lenses to effectively reduce phase difference and suppress chromatic aberration, ensuring ultra-high resolution performance from center to edge. With a large aperture, the imaging system performs well in low-light environments, and the 72° horizontal field of view can meet a variety of monitoring scenarios.

超高解像力光学镜头

Product features:
    1. Ultra-high resolution: multiple aspherical lens design, effectively reducing phase difference and suppressing chromatic aberration
    2. Ultra-large aperture: F1.25 large aperture, ensuring the performance of the imaging system in low-light environments
    3. Ultra-wide field of view: 72° horizontal field of view, wider range, meeting a variety of monitoring scenarios
    4. Ultra-low optical distortion: optical distortion <3.5%, obtain the true original appearance of the scene

Applicable scenarios: large-scale monitoring, disaster prevention and early warning, forest fire prevention, intelligent transportation, urban hubs, ports and terminals, airport monitoring, environmental monitoring, meteorological observation, etc.

超高解像力光学镜头适用场景

Product parameters:

Model	CS- CL-8K001
Focal length	13mm
Max. Aperture	F1.25
Recommended Sensor Size	4/3 inch
Recommended Sensor Resolution	8192 × 4320
HFOV	72°
Optical Distortion	＜3.5%
Camera Mount	M42（Customizable）
Length	180mm
Weight	1.5kg
