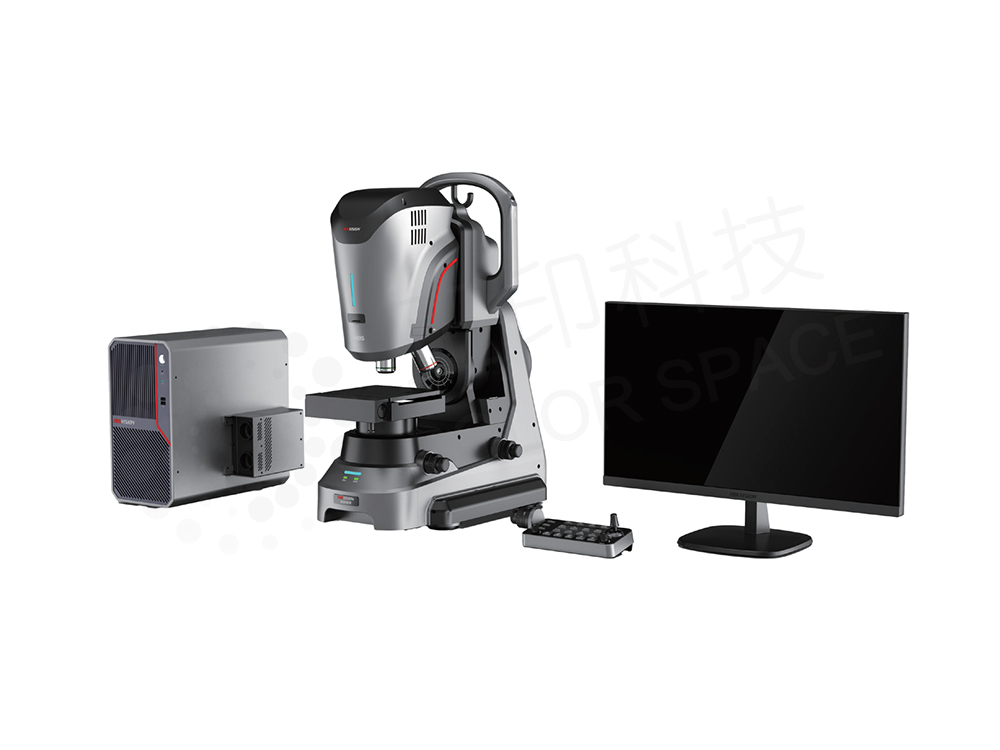

Extended Depth-of-Field 3D Digital Microscope_DI-AM1160

The DI-AM1160 Extended Depth-of-Field 3D Digital Microscope is a digital microscopy system designed for industrial inspection and research applications.

With a high-resolution telecentric optical imaging system and automated motion platform, the microscope supports high-magnification observation, automated focusing, and 3D surface analysis.

It is suitable for production inspection, failure analysis laboratories, academic research platforms, and inspection institutions.

Key Features

High-Resolution Telecentric Optical System

The microscope uses a telecentric optical imaging system providing 30× to 6000× magnification for detailed sample observation.

Multiple Illumination Modes

Supported illumination modes include:

· Brightfield coaxial illumination

· Brightfield oblique illumination

· Darkfield coaxial illumination

· Darkfield oblique illumination

· Mixed illumination

· Transmitted illumination

Brightness can be adjusted to suit different sample surfaces.

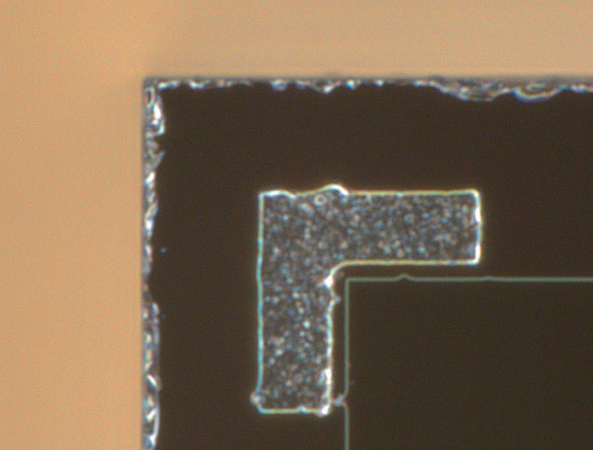

Detector Electrode (Darkfield Illumination, 2000×)

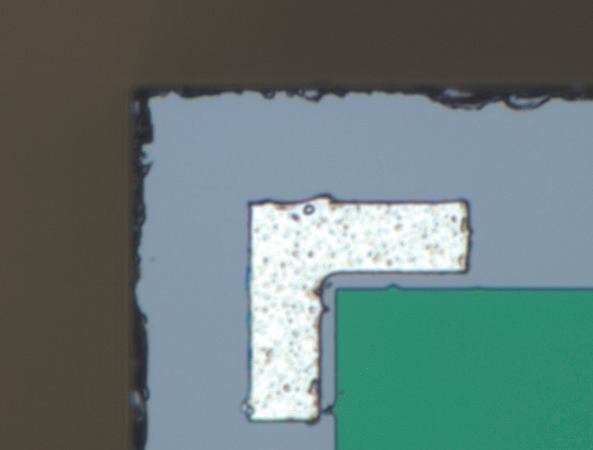

Detector Electrode (Brightfield Illumination, 2000×)

Fully Motorized System

The system integrates motorized control including:

· Motorized XY stage

· Motorized Z-axis focusing

· Motorized objective switching

· Motorized zoom control

This enables automated and repeatable microscopic observation.

Advanced Image Processing

Integrated image enhancement tools include:

· Auto focus

· HDR imaging

· Reflection reduction

· Halo reduction

· Super-resolution capture

· Image stabilization

Snap Fit Component (Original Image, 500×)

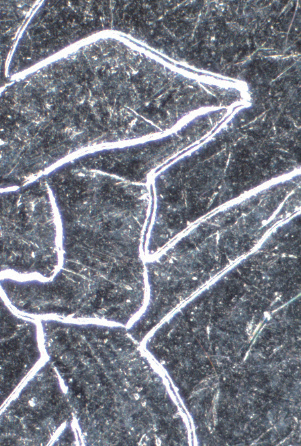

Coin (Original Image, 50×)

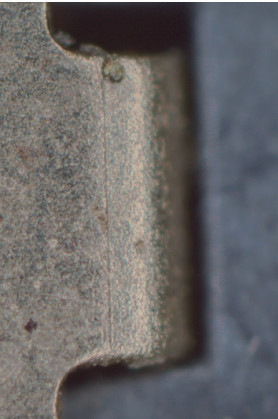

Snap Fit Component (Reflection Reduction Enabled, 500×)

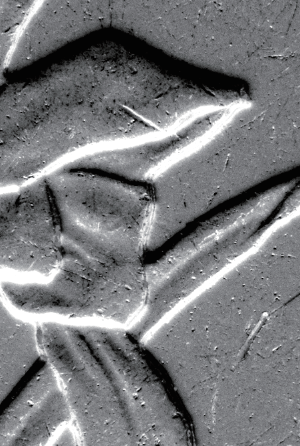

Coin (Optical Shadow Mode, 50×)

Extended Depth-of-Field (EDF) Imaging：

The focus Z-axis drives the optical system to scan along the Z direction and synthesizes multiple focal planes to generate a fully focused image across the entire field of view.

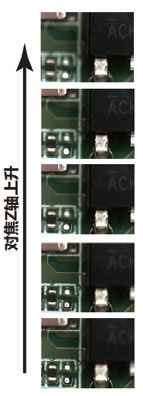

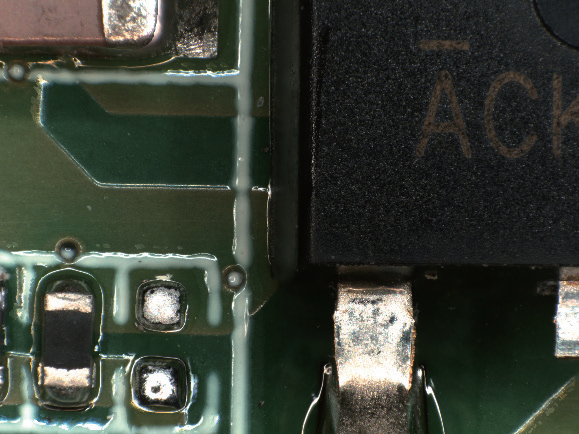

PCB (Extended Depth-of-Field Imaging, 50×)

2D / 3D Image Stitching

For samples that require both high resolution and large-area observation, the 2D stitching function scans the sample across the XY stage over the defined stitching area and automatically merges the captured images into a single composite image. This enables the creation of ultra-large images with a maximum resolution of up to 5 billion pixels.

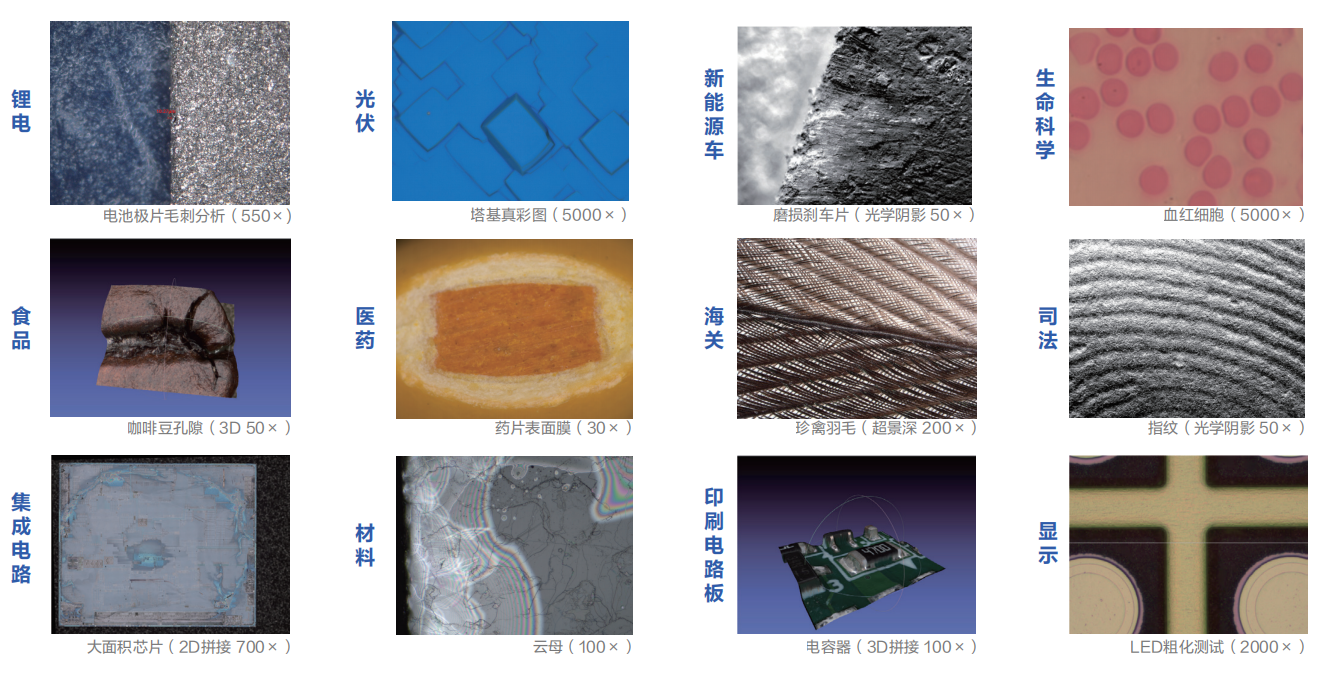

Typical Applications

Technical Specifications

Module	Parameter	Specification
Microscope Body	Magnification Range	30×-6000× （30×、40×、50×、80×、100×、150×、200×、300×、400× 、500×、700×、1000×、1500×、2000×、2500×、4000×、5000×、6000×）
	Maximum Lateral Resolution	0.42 μm@6000×（Standard）（NA 0.8） 0.37 μm@6000×（Optional）（NA 0.9）
	Maximum Working Distance	30mm
	Maximum Sample Height	95mm
	Maximum Extended Depth of Field	30mm
	Illumination Modes	Brightfield (Coaxial / Oblique), Darkfield (Coaxial / Oblique), Mixed Illumination, Transmitted Illumination
	Light Source	LED，approx. 50,000 hours lifetime
	Objective Switching	Motorized
	Zoom Control	Motorized
	Maximum Observable Image Size	Up to 5 billion pixels; single direction <150,000 pixels (during 2D stitching)
	Tilt Observation	−90° to +90°, single-hand operation with self-locking; precise mechanical lock at 0°
Medium XYθ Motorized Stage	XY Stage Control	Motorized
	Travel Range	40 mm × 40mm
	Resolution	1 μm
	θ Rotation Angle	±90°
	Stage Size	228 mm × 205 mm Central Circular Plate Φ 100 mm
Large XY Motorized Stage (Optional)	XY Stage Control	Motorized
	Travel Range	200 mm × 100mm (Reference)
	Resolution	1 μm
	θ Rotation	Not Available
	Stage Size	250 mm × 200 mm Central Circular Plate Φ 170 mm
Focus Z-Axis	Control Mode	Motorized
	Travel Range	50 mm
	Resolution	0.1 μm
Stage Z-Axis	Control Mode	Motorized
	Travel Range	50mm
	Resolution	1 μm
Maximum Load Capacity		5 Kg

Module	Function	Specification
Observation	Basic Microscopic Observation	Supported
	Autofocus	Supported
	Side View Observation	Supported
	Illumination Switching	Brightfield (Coaxial / Oblique), Darkfield (Coaxial / Oblique), Mixed Illumination, Transmitted Illumination
	Tilt Observation	Supported
Display	Split Screen Display	Left/Right, Top/Bottom, 4-Screen, 9-Screen
	Wide-Angle Display	Supported
	Scroll Wheel Zoom	1x ~ 10x
	Annotation	YES
Image Processing	Reflection Reduction	Brightness adjustable (0–100)
	Halo Reduction	Adjustable: Low / Medium / High
	HDR Imaging	Adjustable (0–100)
	Super-Resolution Capture	12000 pixels × 9000 pixels
	Optical Shadow Compensation	Supported
	Image Stabilization	Supported
Image Stitching	2D Image Stitching	Maximum size: up to 5 billion pixels; single direction <150,000 pixels
	3D Image Stitching	Maximum size: 50,000 × 50,000 pixels
	Navigation	Supported
	Registered Position Capture	Supported
3D Reconstruction	3D Reconstruction	Supported
	High-Precision 3D Reconstruction	Supported
	3D Visualization	Supported
	3D Comparison	Supported
2D Measurement	Distance / Angle / Area Measurement	Supported
	Automatic Edge Detection	Supported
	Scale Display	Supported
3D Measurement	Point Brightness Analysis	Supported
	Profile Measurement	Supported
	Volume Measurement	Supported
	Surface Roughness Measurement	Supported
