  • OptiCentric® DUAL dual optical path centre deviation measurement
OptiCentric® DUAL dual optical path centre deviation measurement

OptiCentric® DUAL dual optical path centre deviation measurement

  • Brand: Trioptics
  • Model:OptiCentric® DUAL
  • Product description: The OptiCentric® DUAL is an upgrade to the OptiCentric® and is used in optical systems with a large number of lenses, in measuring the central deviation of lenses that do not transmit visible light (e
  • INQUIRY

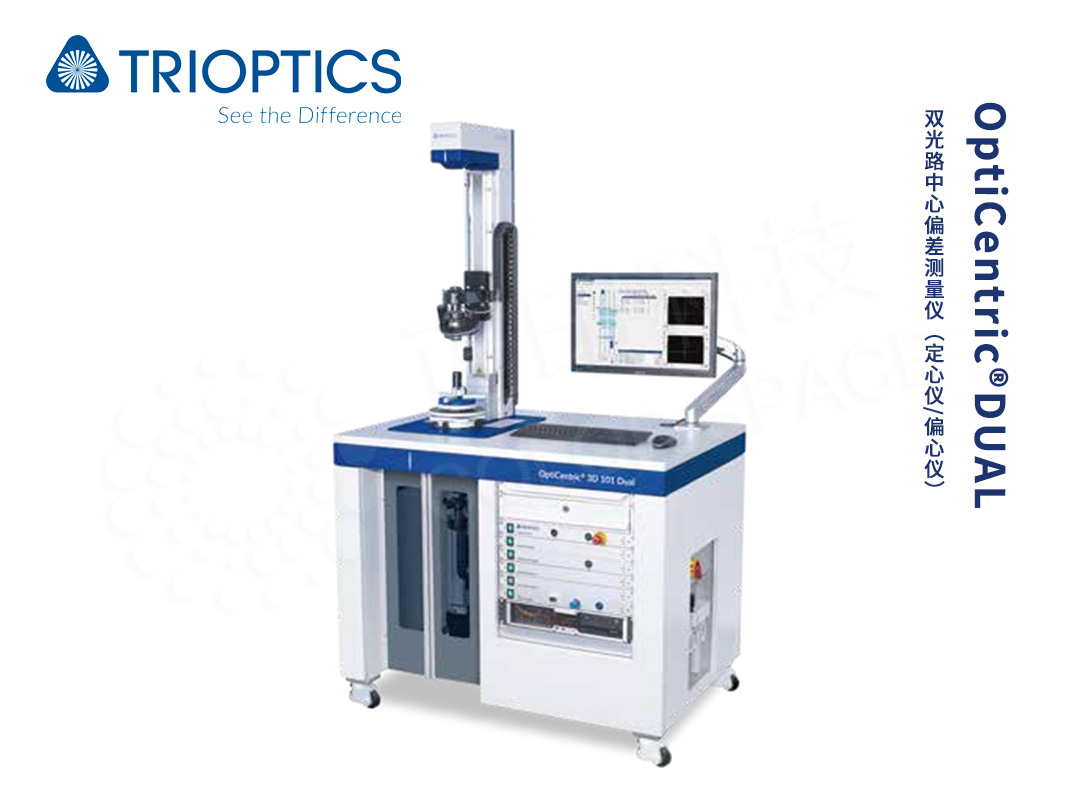

Trioptics OptiCentric® DUAL - the universal centre deviation measurement instrument for measuring and assembling infrared optical systems

The OptiCentric® DUAL is an upgrade to the OptiCentric® and is used in optical systems with a large number of lenses, in measuring the central deviation of lenses that do not transmit visible light (e.g. infrared lenses such as germanium and silicon) and in the assembly of infrared optical lenses. It is the world's most popular instrument for measuring and assembling infrared optical systems.

Extended Applications

Aspheric lens centre deviation measurement Columnar mirror centre deviation measurement
C-Lens Centre deviation measurement Centre deviation measurement for reflexive optical systems
L-shaped or U-shaped optical system centre deviation measurement

Range of applications

Single-lens centre deviation measurement Glued lens centre deviation measurement
Lens set centre deviation measurement Visible optical system set-up
Infrared optical system set-up Single-lens radius of curvature measurement

OptiCentric® DUAL

Product type and technical parameters

Model OptiCentric® 100 DUAL OptiCentric® 300 DUAL
Measurement mode Reflective and transmissive modes
EFL or R range for the lens being measured (standard) +5...+450mm +5...+950mm
EFL or R range of the lens being measured (extended) +5...2000mm
Accuracy of centre deviation measurement ±0.2μm or ±2′′
Repeatability of centre deviation ±0.1μm or ±1′′
Radius of curvature measurement range ±5...±350mm ±5...±900mm
Accuracy of radius of curvature measurement 0.3%
Repeatability of radius of curvature 0.2%
Maximum diameter of the single lens under test 200mm
Maximum diameter of the lens being measured 225mm 500mm
Maximum height of the measured lens 200mm 600mm
Number of lens mirrors under test 40 sides (typical values)


【Reserve a Lab】For more information about related products and testing services, please contactsales@colorspace.com.cn
