JBT 9328-2024 Resolution Test Chart C Version

Brand：ColorSpace
Model：CS-ECTS-TC44
Product description: The CS-ECTS-TC44 is a resolution test chart developed for medical and industrial endoscope imaging systems. It is designed in accordance with the JB/T 9328-2024 resolution test plate standard and is u
INQUIRY

JB/T 9328-2024 Resolution Test Chart – C Version

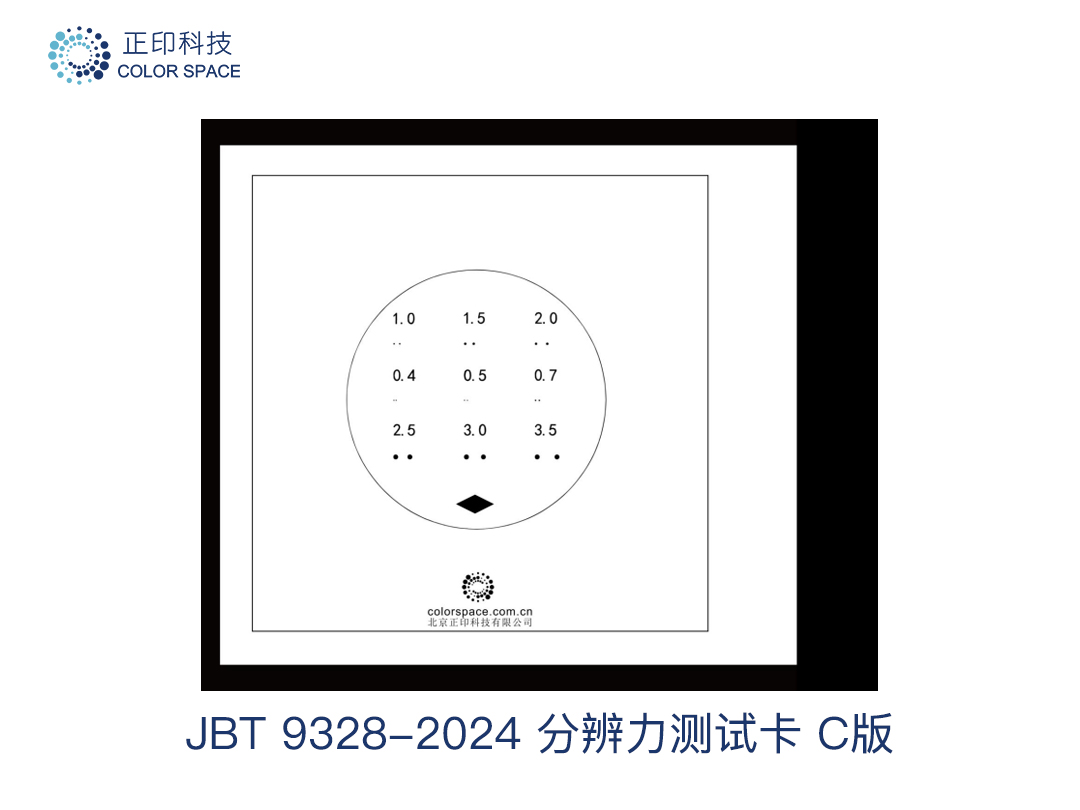

ColorSpace has developed the CS-ECTS-TC series of endoscope test chart for medical and industrial endoscope imaging systems.The JB/T 9328-2024 Resolution Test Chart C Version adopts a transmission-type structure using high-precision film material.The chart consists of nine resolution test units, each including:

· A pair of opaque micro pinholes
· A numeric label indicating angular resolution

The number above each unit represents the corresponding angular resolution value in arcseconds (″).

The labeled values are calibrated by default for a 2500 mm focal length collimator system. For other focal lengths, conversion can be calculated according to optical principles.

CS-ECTS-TC37内窥镜CIPA分辨率测试卡_正印科技

Chart Specifications Parameters：

Parameters	JB/T 9328-2024 Resolution Test Chart C Version
Model	CS-ECTS-TC44
Size	160mm × 134mm
Chart Type	Film-based transmission chart (reflective version optional)
Relevant Standards	JB/T 8328-2024 Resolving power test target
Use	Directly mounted on the CS-ECTS testing system for use
