5-ALA-Fluorescence-Test-chart

品牌：正印科技ColorSpace
Model：CS-ECTS-TC41
Product description: The 5-ALA fluorescence test chart supports PpIX-based tumor imaging validation. Designed for system evaluation and research.
INQUIRY

CS-ECTS-TC41 5-ALA Fluorescence Test Chart

ColorSpace has developed theCS-ECTS-TC series of endoscope test chart for medical and industrial endoscope imaging systems.

The CS-ECTS-TC41 5-ALA fluorescence test chart is a professional tool designed to validate the performance of 5-ALA fluorescence imaging systems.

Based on the fluorescence characteristics of PpIX (Protoporphyrin IX), this test chart supports research, education, and fluorescence imaging system evaluation. It enables engineers to verify imaging consistency and sensitivity under non-invasive and controlled conditions.

* This product does not provide disease diagnosis or therapeutic functions. It is intended solely for imaging system testing and evaluation.

Solution

The CS-ECTS-TC41 5-ALA fluorescence test chart reproduces representative PpIX fluorescence responses under controlled conditions by simulating its characteristic fluorescence behavior. It is used for:

· Fluorescence imaging system performance evaluation
· Fluorescence-guided surgical navigation system setup and adjustment
· Cross-device and multi-batch comparative testing

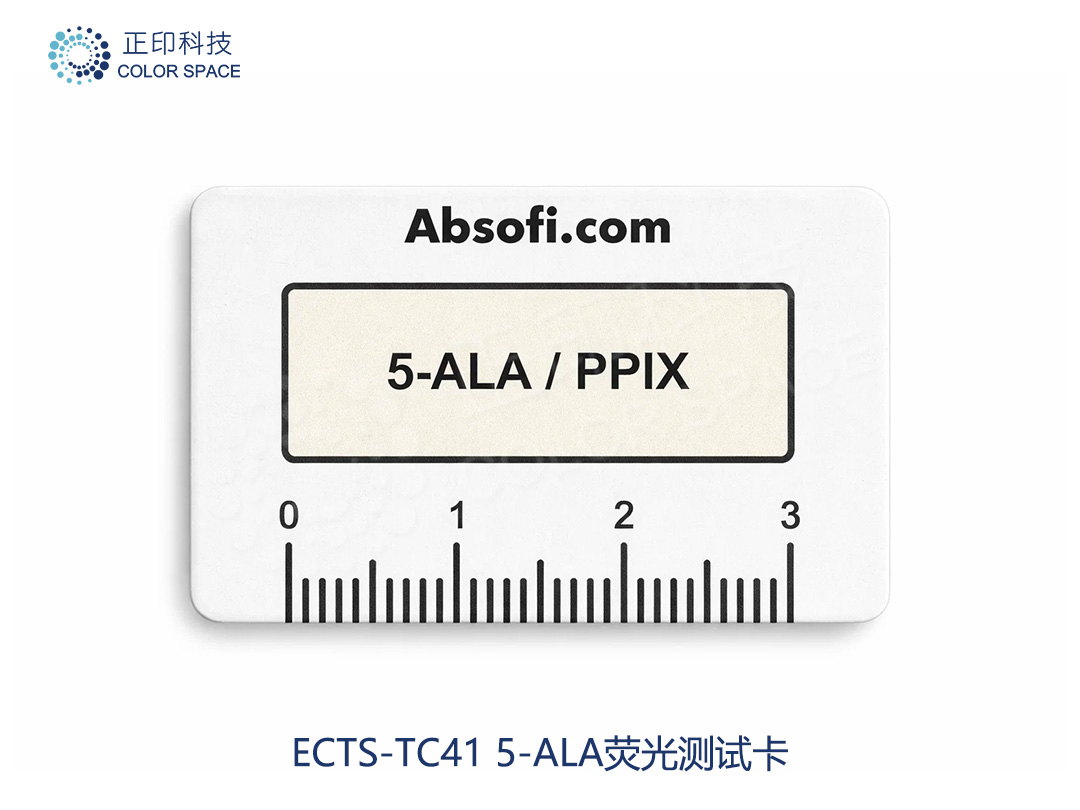

CS-ECTS-TC37内窥镜CIPA分辨率测试卡_正印科技

Specifications

Parameter	5-ALA Fluorescence Test
Model	CS-ECTS-TC41
Size	40mm × 26mm
Excitation Peak	400–410 nm (primary), 450 nm (secondary)
Emission Peak	634–635 nm (primary), 620 nm (secondary)
Effective Detection Range	600-680 nm
Use	Directly mounted on the CS-ECTS testing system for use

Applications

· R&D of 5-ALA fluorescence-guided surgical navigation systems

· Tumor fluorescence imaging algorithm validation

· Medical imaging education and training

· Joint calibration of fluorescence cameras and illumination systems
