Endoscope ISO 12233 Figure 6 Star Chart Test Target

Brand：ColorSpace
Model：CS-ECTS-TC35
Product description: CS-ECTS-TC35 ISO12233 Figure 6 star chart is designed for endoscope image quality testing, accurately measuring spatial frequency response and depth of field. Made with high-stability film material, s
INQUIRY

CS-ECTS-TC35 Endoscope ISO 12233 Figure 6 Star Chart Test Target

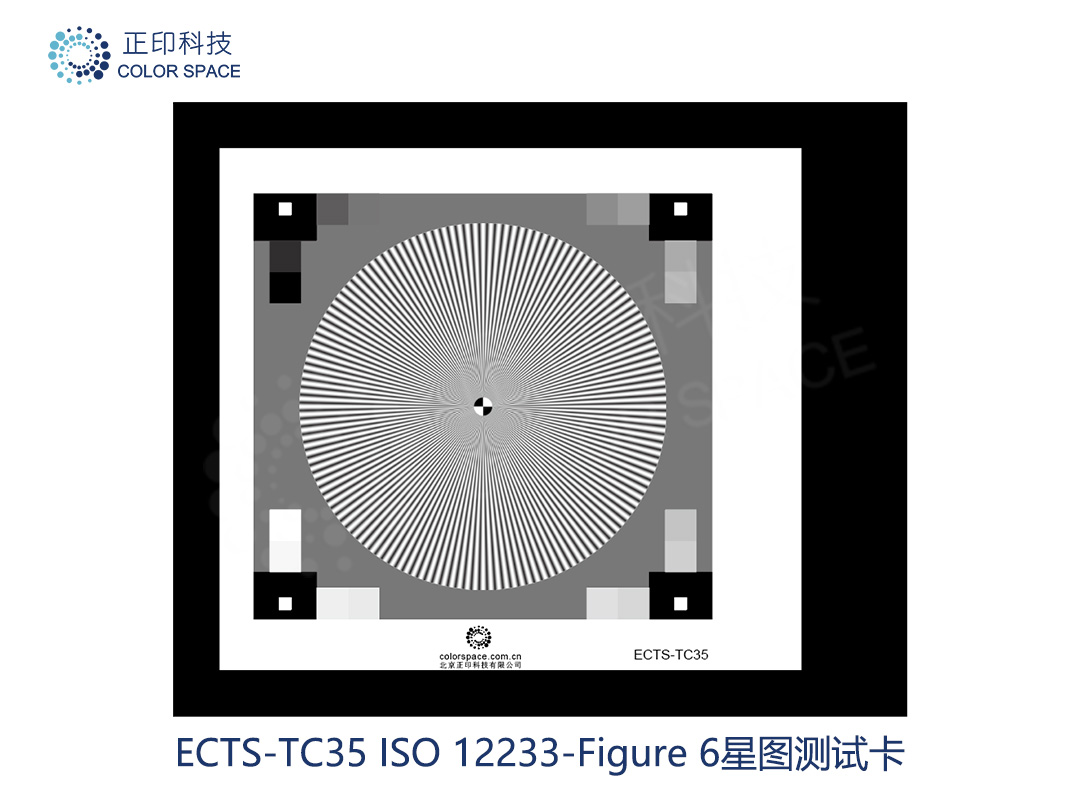

ColorSpace, in response to the needs of medical and industrial endoscope imaging systems, has developed and introduced the CS-ECTS-TC series of endoscope test chart，The CS-ECTS-TC35 Endoscope ISO 12233 Figure 6 Star Chart Test Target is designed for comprehensive evaluation of endoscope image quality.

Featuring a sine-based star pattern (Figure 6), the chart clearly reveals resolution performance variations of the imaging system across different directions and spatial frequencies. It provides reliable reference for assessing resolution degradation, image sharpness, and contrast performance, making it an essential testing tool for endoscope R&D, quality control, and standardized verification.

The chart substrate is made of high-precision film transmission material, offering excellent optical stability and sharp edge definition, effectively minimizing testing errors and ensuring accurate results in high-demand imaging environments. With a standard size of 160 × 134mm, it can be directly mounted onto the CS-ECTS endoscope testing system for convenient and stable use.

CS-ECTS-TC35内窥镜6星图测试卡_正印科技

Technical Specifications：

Parameter	Endoscope ISO 12233 Figure 6 Star Chart Test Target
Model	CS-ECTS-TC35
Size	160mm × 134mm
Chart Type	Film Transmission Target (Reflective version optional)
Pattern Format	Sine-based SFR Star Pattern
Use	Directly mounted on the CS-ECTS testing system for use
