Endoscope ISO 12233 e-SFR Test Chart

Brand：ColorSpace
Model：CS-ECTS-TC36
Product description: The ColorSpace endoscope ISO 12233 e-SFR test chart features a 4:1 edge reflectance ratio and high-precision transmissive film material. With a size of 160×134 mm, it mounts directly onto CS-ECTS test
INQUIRY

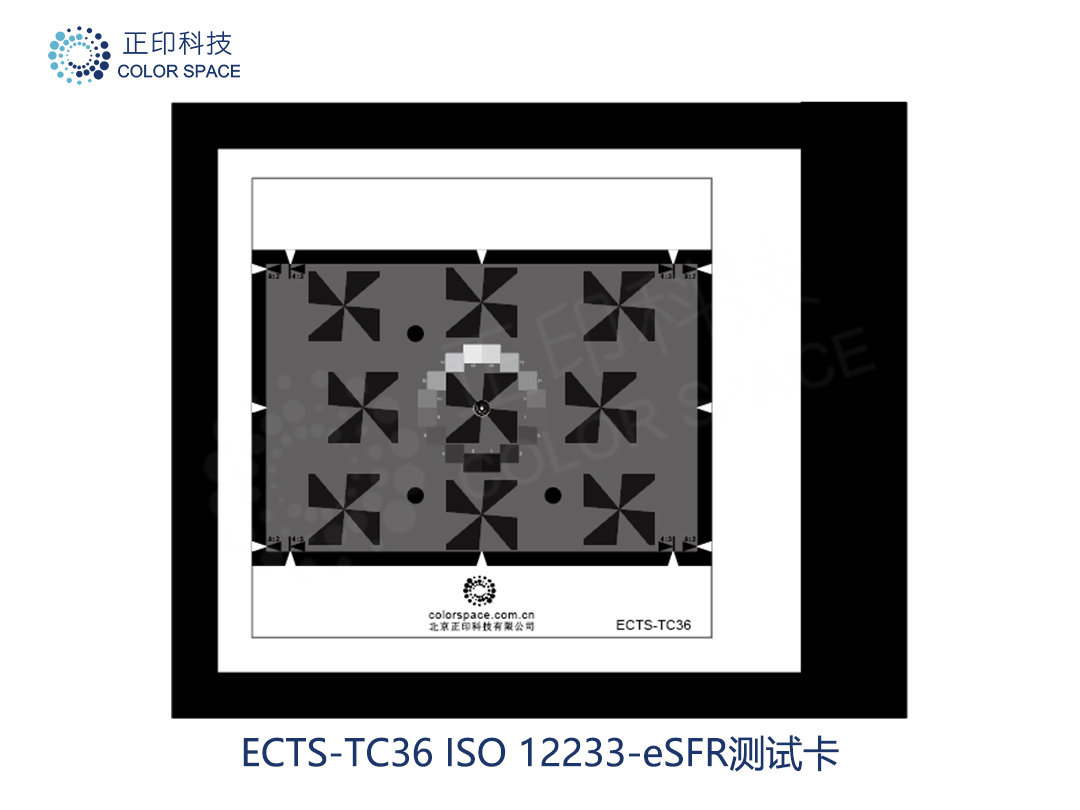

CS-ECTS-TC36 Endoscope ISO 12233 e-SFR Test Chart

ColorSpace, in response to the needs of medical and industrial endoscope imaging systems, has developed and introduced the CS-ECTS-TC series of endoscope test chart，

The CS-ECTS-TC36 ISO 12233 e-SFR test chart is designed according to the ISO 12233 Figure 4a standard and features a 4:1 edge reflectance ratio, enabling accurate evaluation of SFR/MTF, spatial resolution, and image sharpness.

Manufactured using high-precision transmissive optical film, the chart provides stable density and sharp edge patterns, making it ideal for transmissive test environments.With a 160 × 134 mm format, it can be directly mounted on the ColorSpace CS-ECTS endoscope test system, suitable for R&D, quality inspection, and production testing.

CS-ECTS-TC35内窥镜6星图测试卡_正印科技

Technical Specifications：

Parameter	Endoscope ISO 12233 e-SFR Test Chart
Model	CS-ECTS-TC36
Size	160mm × 134mm
Chart Type	Transmissive film chart (custom reflective version optional)
Edge Reflectance Ratio	4:1
Use	Directly mounted on the CS-ECTS testing system for use
