Flare Test Sphere Light Source

Brand：ColorSpace
Model：CS-SLE-Flare-80
Product description: ColorSpace Technology has recently launched the CS-SLE-Flare-80 stray light detection sphere light source, specifically designed to address the testing challenges of cameras with large fields of view.
INQUIRY

CS-SLE-Flare-80 Flare Test Sphere Light Source -Brand New Large Field of View Camera Sensor Testing Equipment

As the field of view of cameras increases, traditional detection methods may not fully cover the entire market, or the consistency of detection may not be high, thereby increasing the difficulty of detecting stray light and ghosting phenomena.

The CS-SLE-Flare-80 stray light detection sphere light source is specifically designed to solve the testing challenges of cameras with large fields of view. The spherical light source ensures uniform light distribution across the entire field of view, while also providing precise independent control of individual LED beads, including on/off control and adjustment of the duration of illumination intervals; the FOV covers from 0 to 220°, offering more refined testing conditions and higher detection accuracy for stray light and ghosting phenomena.

Product Features：

1. Large Field of View Coverage: The FOV covers from 0 to 200°, fully meeting testing requirements.

2. Uniform Light Distribution: The light source beads are evenly distributed within the spherical structure, ensuring the comprehensiveness and consistency of the light.

3. Independent Control: Each LED bead can be controlled independently to achieve precise control over the lighting and extinguishing, as well as the adjustment of the duration and intervals of illumination.

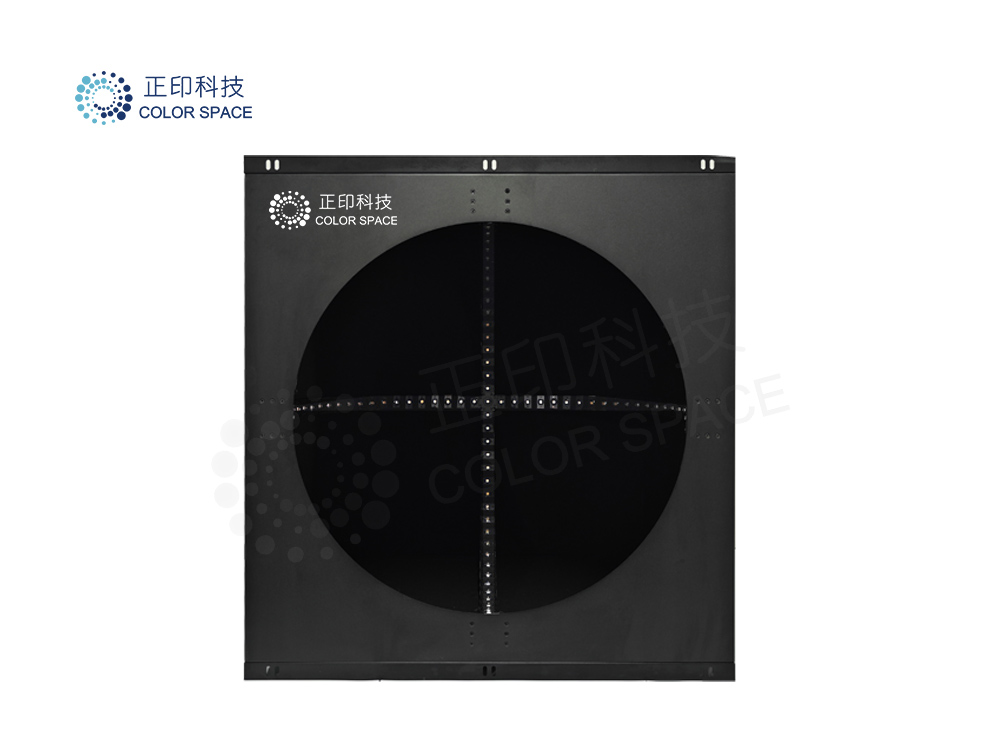

CS-LE-FGT-02大视场角杂散光检测球形光源_正印科技

Parameters：

Parameter	Flare Test Sphere Light Source
Model	CS-SLE-Flare-80
Semi-strength angle	≤30
FOV	≤220°
Internal Diameter	800mm（customizable）
Dimensions	700mm × 570mm × 135mm
Light Source Life Time	＞15,000 hours
LED Bead Layout	Lens Center Axis, with an LED bead spaced at 5° intervals horizontally and vertically, capable of individual control over on/off and brightness (customizable).
Internal Color	Diffused Black Interior of the Light Box（100%）
Control	Built-in Controller，RS485
Power	350W
Supply Voltage	AC100~120V/200~240V；50/60Hz
Work Environment	Temperature：25℃（±10℃）；Humidity：30%~50%
Test Parameters	Stray Light Ghosting, Dirt, and Defects
