Spherical light Source

Integrating sphere light sources

Brand：ColorSpace
Model：CS-LE-IS
Product description: The Integrating Sphere provides a highly uniform, colour-temperature adjustable light source; the Integrating Sphere achieves a uniform Lambertian diffuse light source output, providing a highly unifo
INQUIRY

Integrating sphere light - high uniformity, adjustable colour temperature illumination for camera uniformity measurement

CS-LE-IS integrating sphere light source - its high uniformity, adjustable color temperature and illuminance make it suitable for measuring camera uniformity under different spectrum types.

The system consists of integrating sphere, light source, control system and power supply, etc. It can realize highly uniform output of Lambert diffuse scattering light source, and the uniformity of luminous surface can reach 98~99%.

The device supports the selection of different types of physical light sources (such as deuterium lamp, tungsten lamp, LED lamp, multi-spectral LED, etc.). For some application scenarios with extremely high spectral consistency requirements, you can choose to adjust the diaphragm to adjust the light intensity without changing the spectral distribution.

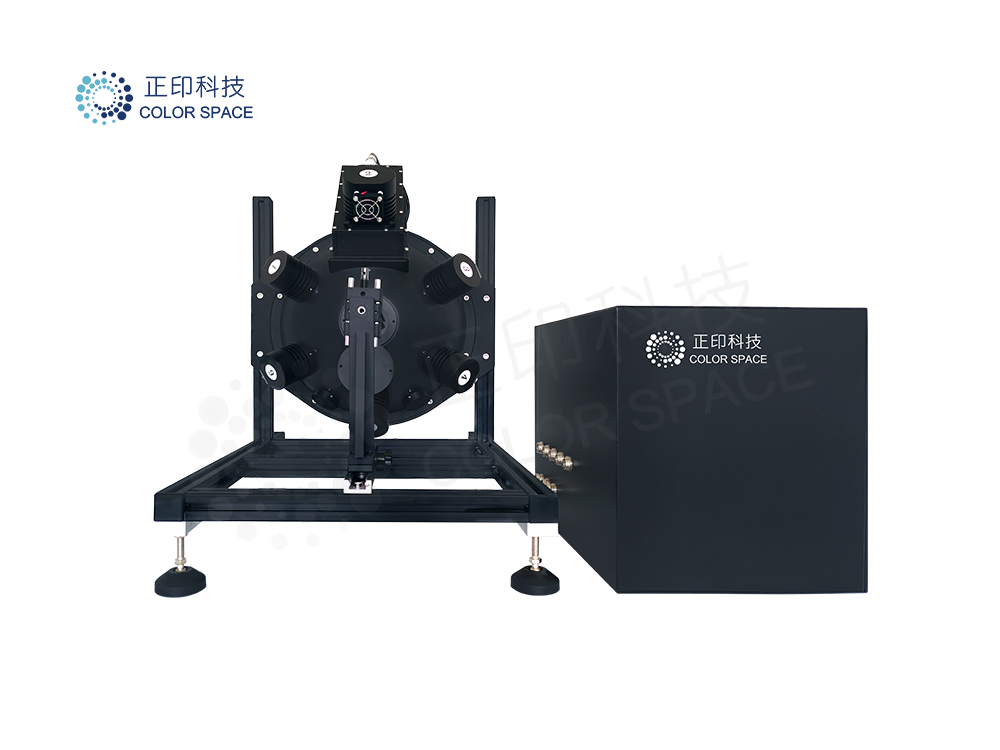

积分球光源均匀系统

Product parameters：

Parameters	CS-LE-IS Integrating Sphere Light Source Uniformity System
Physical Light Source	6500K±50K /2856K±50K
Illuminance Range	≥1500Lux (measure at surface), adjustable illuminance
Illuminance Stability	±0.5%
Light-Emitting Hole Uniformity	≥98~99
Integrating Sphere Diameter	300mm, customizable
Light-Emitting Hole Diameter	50mm, customizable
Internal Coating	White PTFE
Coatiing supported Band Range	250nm~2500nm
Shell material	Stainless steel/carbon steel/aluminum alloy (Standard)
Light Head Quantity	1～16 pcs, customizable
Light Source Type	Xenon lamp/halogen lamp/LED (Choose one or more)
Stand Material	Aluminum alloy profile stands
Control Method	Standard: touch screen Optional: Light Control software V3.0【RS-485】
External Spectrometer	Optional fiber optic spectrometer, to provide feedback on color temperature, illuminance,iradiance, spectrum, etc.
Power	up to 500W (depends on different light source)
Supply Voltage	AC100 ~ 120V / 200 ~ 240V; 50Hz/ 60Hz
Work Environment	Temperature: 25℃ (±10℃); Humidity: 30% ~ 50%
Main Applications	1. Uniformity measurement of wide-angle lens imaging system. 2. Uniformity calibration of imaging systems and devices, cameras, sensors, detectors, etc.
