Relative self-effect of illumination light luminosity Test Chart

Relative self-effect of illumination light luminosity Test Chart

Brand：ColorSpace
Model：CS-ECTS-TC17
Product description: ColorSpace has developed a series of endoscope test charts for medical and industrial endoscope imaging systems. The CS-ECTS-TC17 Relative Self-Effect of Illumination Light Luminoscity Test Chart comp
INQUIRY

CS-ECTS-TC17 Relative Self-Effect of Illumination Light Luminosity Test Chart, Specifically for Endoscope Imaging Quality Testing — Complies with YY0068.1 Standard Requirements

ColorSpace has developed the CS-ECTS-TC series of endoscope test chart for medical and industrial endoscope imaging systems. The CS-ECTS-TC17 Relative Self-Effect of Illumination Light Luminoscity Test Chart complies with the YY0068.1 standard test requirements and is suitable for testing the illumination efficiency and edge uniformity. It can also be used to test the Relative Self-Effect of Imaging Light Energy.This Test Card requires use in conjunction with the T-10MA instrument.

Chart Specifications Parameters：

Parameters	Relative Self-Effect of Illumination Light Luminosity Test Chart	Relative Self-Effect of Illumination Light Luminosity Test Chart rectangular field of view

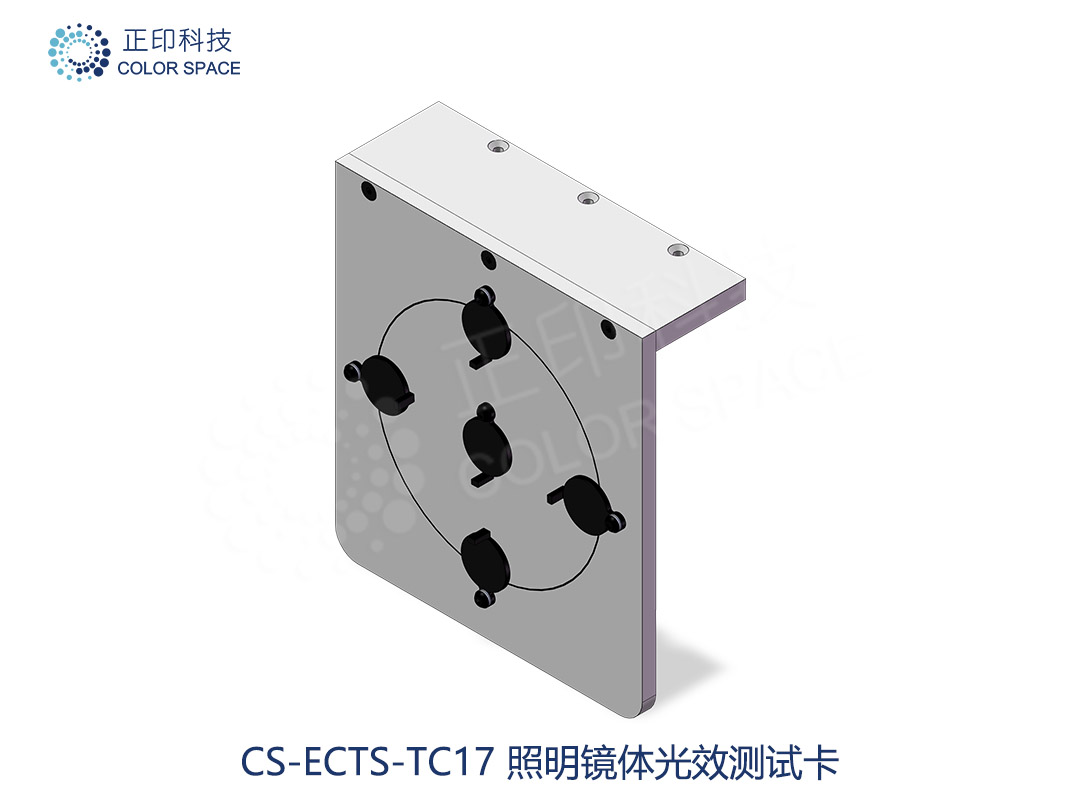

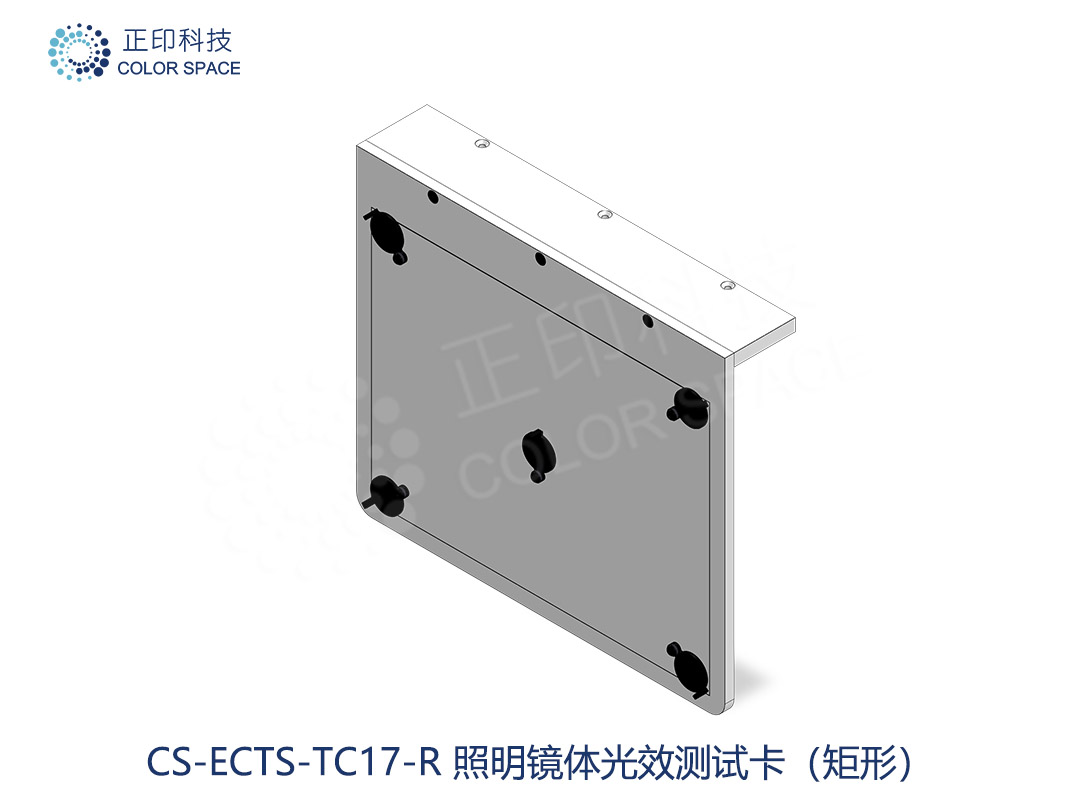

Model	CS-ECTS-TC17	CS-ECTS-TC17-R
Size	160mm × 134mm	160mm × 134mm
Relevant Standards	YY0068.1-2008-Medical endoscopes-rigid endoscopes-part 1: Optical Properties and test methods
Use	Directly mounted on the CS-ECTS testing system for use.
