Details:

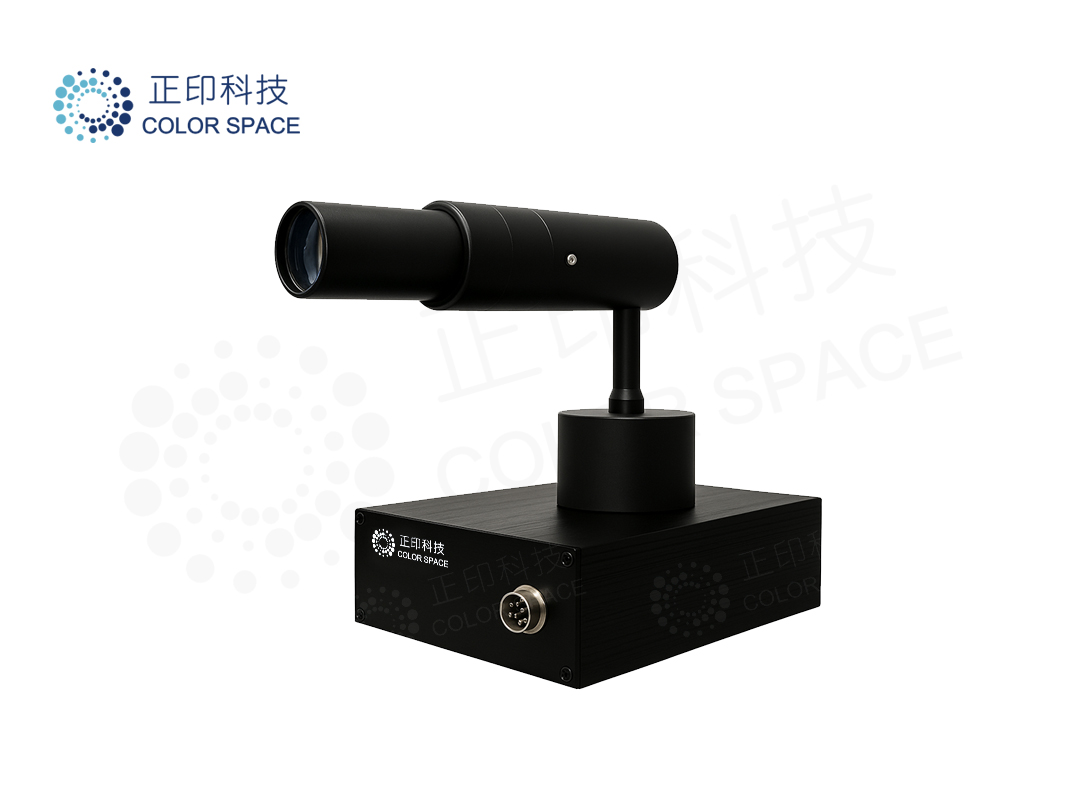

The High Brightness Point Light can be used to test Flare,Ghost and the electronic rearview mirrors of ISO 16505 standard.It can simulate strong light sources such as street lights and car headlights to analyze the camera’s strong light suppression function.
|
|
|
CS-LE-HDPL-01/02/03 |
CS-LE-HDPL-04 |
CS-LE-HDPL-07 |
Specification:
Model |
CS-HDPL-01 | CS-HDPL0-2 | CS-HDPL-03 | CS-HDPL-04 | CS-HDPL-07 |
CCT |
6500K(±200K) | 3000K(±200K) | 6000K(±500K) | 6500K(±1500K) | D50/D65/Red/Green/Blue |
Luminance |
100万 cd/m² | >10万 cd/m² | 450万 cd/m² | 20万 ~ 30万 cd/m² | 80万 cd/m² |
Light Source Type | LED | Tungsten Lamp | Xenon Lamp | LED | LED |
Light output hole |
Ø25 mm(可定制) |
Ø2.2 mm×2 |
Ø20 mm | ||
Angle of divergence |
20° ~ 40°可调 | 120° |
120° |
||
Dimension(LxWxH) | 200 ×200 × 200 mm | 220 ×165 × 160 mm | 165 × 220 × 312mm | ||
Light Life |
>20000 H | 400 H | 800 H | >20000 H | >20000 H |
Control Method |
Push Botton(Optional:Software control) |
Touch Screen/USB | USB | ||
Software Control |
Optional |
||||
Software | Optional | API | |||
Voltage | AC 220V±10% (or 110V) |
|
|||
Power | < 50W | <250W |
<250W |
<20W | <20W |
Working Environment |
indoor Temperature:15℃ ~ 25℃;Humidity: 30% ~50% |
