Details：
ColorSpace Co.ltd designs and produces a series LED light boxes, which can be used for image
quality test for different applications. Such as single light source light box, CCT adjustable
light box, Wide Dynamic Range Light Box, AE Box, Infra-red Light Box etc, also we can do
customization for different size, light level to meet customer`s requirement.
Available Models:
|
LE005-S2
|
Single Color Temperature Light Box
|
|
|
CCT: 5000K (±100K) or 6500K (±100K) (Can be customized)
CRI: >96
Luminance: 3.2 cd/m²~ 3200 cd/m² (0lx~10,000lx), 10000 levels dimmable
Lighting Area: 280x210mm
Maximum Chart Size: 360mmX280mm
Uniformity: >99% (Central 10cmX10cm), >97% (Full Size)
LED Life Time: >20000 Hours
|
|
LE005-D2
|
CCT Adjustable Light Box
|
|
Specification:
|
Adjustable CCT: 2800K~6800K (±100K) (100K/Step) (Can be customized CCT range)
CRI: 2800K~3000K>98, 3000K~6800K >95
Luminance: 3.2 cd/m²~ 6400 cd/m² (0lx~20,000lx), 10000 levels dimmable
Lighting Area: 280x210mm
Maximum Chart Size: 360mmX280mm
Uniformity: >99% (Centeral10cmX10cm), >97% (Full Size)
LED Life Time: >20000 Hours
|
|
LE005-W2/LE005-WF2
|
Wide Dynamic Light Box(With Flicker)
|
|
Specification:
|
CCT: 5000K (±200K) (Can be customized CCT)
CRI>96
Luminance: 9.5 cd/m²~ 32000 cd/m² (Surface illuminance 0lx~150,000lx), 10000 levels dimmable.
Flicker：20-1000HZ（LE005-WF2）
Lighting Area: 280x210mm
Maximum Chart Size: 360mmX280mm
Uniformity: >99% (Centeral10cmX10cm), >97% (Full Size)
LED Life Time: >20000 Hours
|
|
LE005-IR2
|
IR Light Box
|
|
Specification:
|
Peak wave: 810nm，850nm or 940nm (Can be customized)
Lighting Area: 280x210mm
Intensity: 10000 levels dimmable
Maximum Chart Size: 360mmX280mm
Uniformity: >99% (Centeral10cmX10cm), >97% (Full Size)
LED Life Time: >20000 Hours
Used to test infrared cameras
|
Common Specification of All LE005 Series
|
Dimension
|
470x 360 x 170 mm （L×W×H）（Not include handle）
|
|
Power
|
220V±10%/110V±10% ,<200 W
|
|
Control Method
|
Manual, USB or WiFi
|
|
Open API
|
Optional
|
|
Control Software
|
Light Control v2.0(Optional)
|
|
Outsides Light Meter
|
Optional
|
|
Inside Light Sensor
|
Optional(Real time measurement and auto calibration)
|
|
Working Condition
|
Indoor，Temperature：15-25°C，Humidity 30%-50%
|
Recommended Test Chart：
|
36 Patches Dynamic Test Chart
|
|
Test Noise，Dynamic Range（50dB、100dB、150dB）
Material：LVT transmission film
|
|
36 Patches Dynamic Test Chart「Support visble light and infrared light」
|
|
Support visble light and infrared light to test Noise，Dynamic Range(150dB)
Material：Transmission glass
|
|
ISO 15739 Test Chart
|
|
Test noise,OECF and Dynamic Range
Material：LVT transmission film
|
|

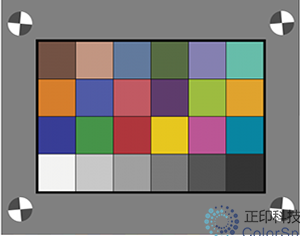

ColorChecker
|
|
Test color accuracy,white balance,noise, etc
Material:LVT transmission film
|
|
SFRPlus Test Chart
|
|
Test resolution,distortion,FOV,color accuracy,white balance etc
Material：LVT transmission film
|
|
eSFR ISO Test Chart
|
|
Test resolution,distortion,FOV,color accuracy,white balance etc
Material:LVT transmission film
|
Please contact us:
For Sales:sales@colorspace.com.cn
|
∷
