Grayscale Test Charts

ISO 14524 Camera Contrast Test Chart (12-Step)

Brand:ColorSpace
Model：CS-TC003-12
Product description: The ColorSpace ISO 14524 OECF Test Chart (CS-TC003-12) features 12 neutral gray steps for OECF testing of electronic still-picture cameras and digital imaging systems, with applications in image noise
INQUIRY

ISO 14524 Camera Contrast Test Chart (12-Step)

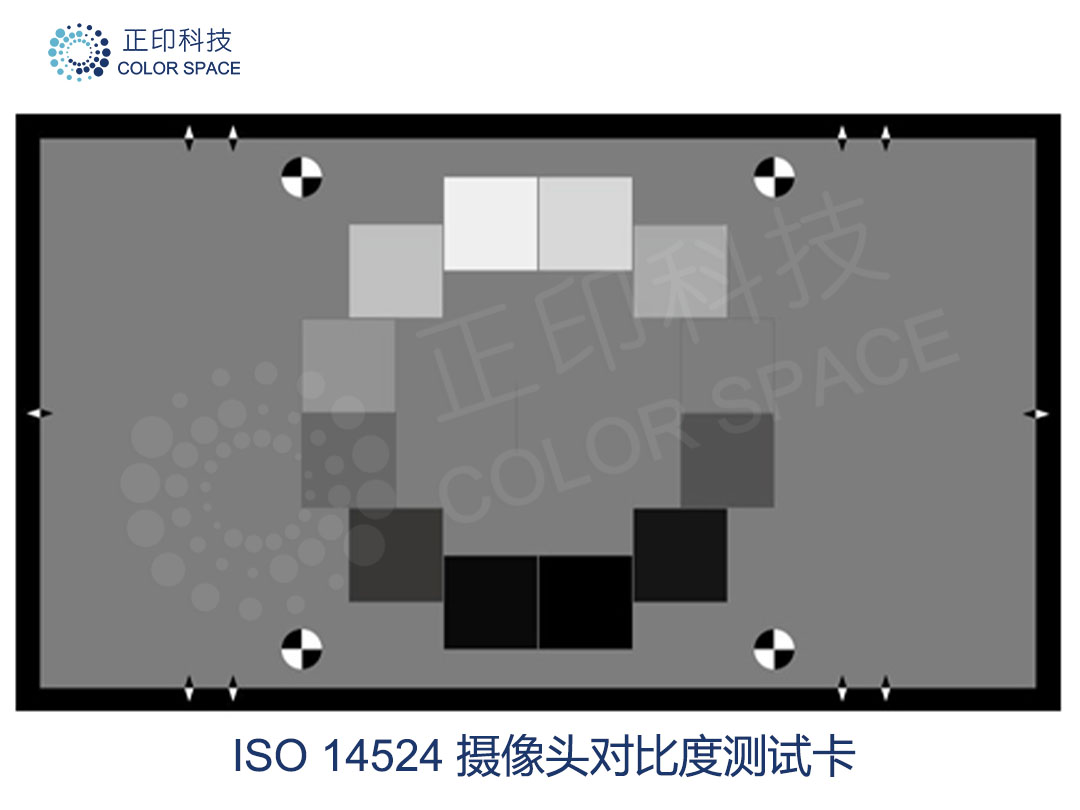

The ISO 14524 Camera Contrast Test Chart (12-Step) is a reflective grayscale test chart designed with reference to the relevant requirements of ISO 14524:2009. It is intended for opto-electronic conversion function (OECF) testing of electronic still-picture cameras and other digital imaging systems, and can also be used for image noise-related analysis.

ISO 14524:2009 specifies methods for measuring the opto-electronic conversion function (OECF) of electronic still-picture cameras. OECF describes the relationship between scene luminance or focal-plane exposure and the digital output levels of an imaging system.

The CS-TC003-12 features 12 neutral gray patches with different optical densities. By capturing the chart under controlled illumination and analyzing the digital output of each gray patch, the test system can obtain grayscale response data for OECF-related measurement and analysis.

The chart is designed with an 80:1 contrast ratio and a gray density range of 0.10 to 2.00. It is suitable for image quality testing of cameras, camera modules, and other digital imaging devices.

ISO 14524摄像头对比度测试卡（12阶）

Specification

Parameter	ISO 14524 Camera Contrast Test Chart (12-Step)
Model	CS-TC003-12
Overall Size	514mm × 295mm
Active Area	494mm × 278mm
Number of Gray Steps,	12 Step，Gray Patch Size：46mm × 46mm
Gray Patch Density	0.10、0.19、0.30、0.41、0.52、0.66、0.81、0.96、1.17、1.38、1.67、2.00
Background Density	0.74
Contrast Ratio	80:1
Type	Reflective
