Resolution Test Charts

  • MultiBurst SquareWave
MultiBurst SquareWave

MultiBurst SquareWave

  • Brand：DSC Labs
  • Model：CS-MBSQ
  • Product description: The MultiBurst SquareWave chart features horizontal/vertical gratings, corner targets, and zone plates from 50 to 1200 TVL/PH, ideal for resolution and aliasing tests.
  • INQUIRY

MultiBurst SquareWave

  • · Central horizontal and vertical resolution gratings.
  • · Resolution blocks from 50 to 1200 TV LPPH
  • · Corner gratings – useful for checking lens performance.
  • · Zone plates – helpful in identifying aliasing.

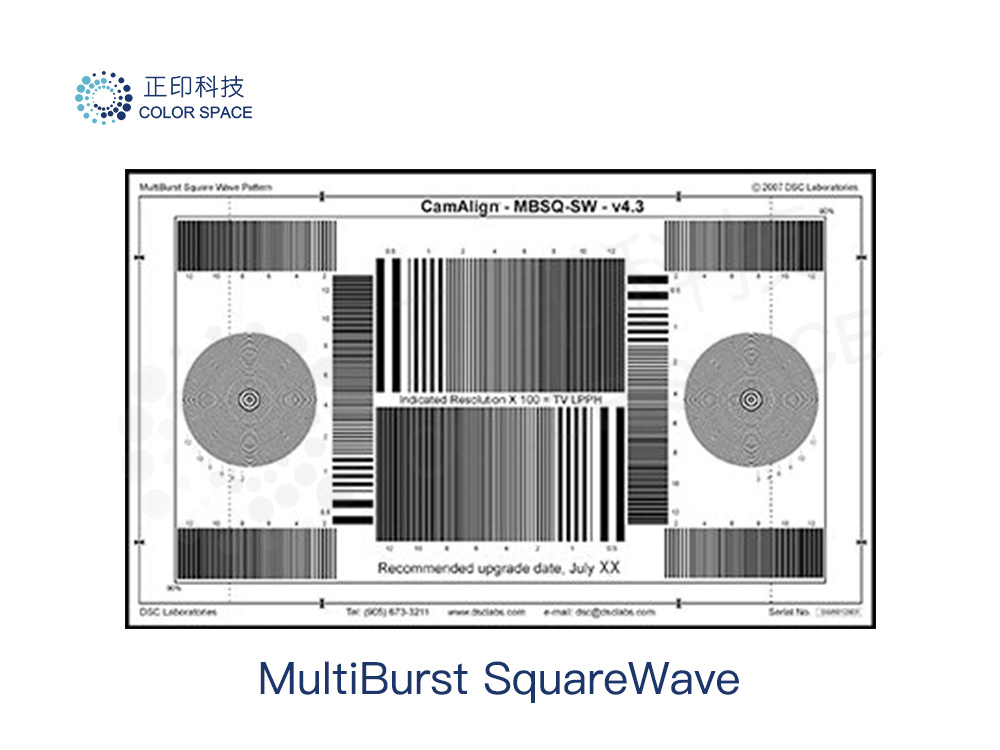

MultiBurst SquareWave_DSC Labs


Specifications：

Model
 Size
CS-MBSQ(29)-JW 17×10''（43.18 cm × 25.4 cm）
CS-MBSQ(29)-SW
 21.3×13''（54.10 cm × 33.02 cm）
CS-MBSQ(29)-SRW
 24×14.7''（60.96 cm × 37.34 cm）
CS-MBSQ(29)-XW
 40×24''（101.6 cm×60.96 cm）
CS-MBSQ(29)-SXW
 51.5×3.5''（130.81cm×77.47 cm）


【Reserve a Lab】For more information about related products and testing services, please contact：sales@colorspace.com.cn
