Angular Resolution & Depth of Field Test Chart

Angular Resolution & Depth of Field Test Chart

  • Brand：ColorSpace
  • Model：CS-ECTS-TC38
  • Product description: The CS-ECTS-TC38 Angular Resolution and Depth of Field Test Chart is designed for medical and industrial endoscope image quality evaluation. It complies with JB/T 9328-1999 resolution chart requiremen
  • INQUIRY

CS-ECTS-TC38 Angular Resolution and Depth of Field Test Chart For Endoscope Image Quality Evaluation

ColorSpace, in response to the needs of medical and industrial endoscope imaging systems, has developed and introduced the CS-ECTS-TC series of endoscope test chart. The CS-ECTS-TC38, an angle resolution test charts, adheres to the JB/T 9328-1999 standard for resolution test plates and the YY0068.1 standard for testing requirements, making it suitable for use in angle resolution and depth of field testing.

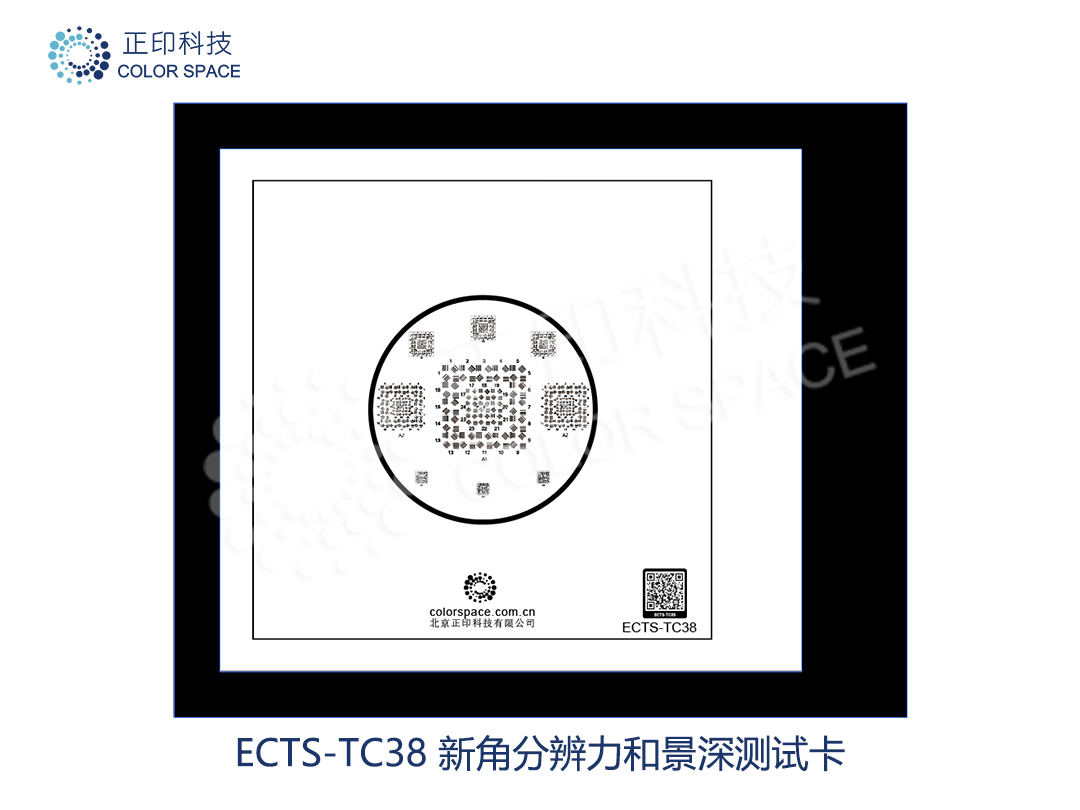

CS-ECTS-TC38新角分辨力和景深测试卡_正印科技

Chart Specifications Parameters：

Parameter Angular Resolution & Depth of Field Test Chart
Line Pair Configuration

· A1 ×1 group

· A2 ×2 groups

· A3 ×3 groups

· A4 ×3 groups

Model CS-ECTS-TC38
Chart Size 160mm × 134mm
Chart Type
Film test chart on glass substrate (reflective version available)
Applicable Standards

· JB/T 9328-1999 Standard Resolution Test Plate

· YY0068.1-2008-Medical endoscopes-rigid endoscopes-part 1: Optical Properties and test methods


Use 直接固定到CS-ECTS测试系统上使用


【Reserve a Lab】For more information about related products and testing services, please contact：sales@colorspace.com.cn
