  •  Highly accurate automatic spherometer
 Highly accurate automatic spherometer

Highly accurate automatic spherometer

  • Brand: Trioptics
  • Model:SpheroMeter
  • Product description: The Trioptics SpheroMeter is a highly accurate, fully automatic contact spheroid gauge for high precision measurements of radii of curvature on convex or concave surfaces.
  • INQUIRY

SpheroMeter - Highly accurate & fully automatic contact spheroid gauge

The Trioptics SpheroMeter is a highly accurate, fully automatic contact spheroid gauge for high precision measurements of radii of curvature on convex or concave surfaces.


Product features:

1. The main structure is made of heavy stainless steel and has a concentricity of better than 1μm (0.00004") with the detector head
2. Measuring rings made from heat-treated stainless steel with ultra-high precision machining, each with calibration data and directly traceable to NIST international standards
3. The support balls are made of ruby or tungsten carbide to avoid thermal or mechanical deformation and are also concentrically positioned to better than 1μm (0.00004")
4. The software is easy to use and the results can be measured in millimetres or inches
5. The software automatically identifies concave or convex surfaces and automatically records the measurement results


Product Application:

· Measurement of the radius of curvature of convex or concave surfaces

SPHEROCOMPACT 紧凑型球径仪

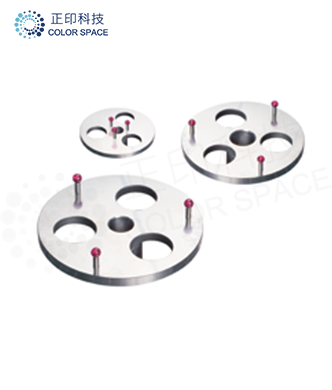

高精度红宝石球环

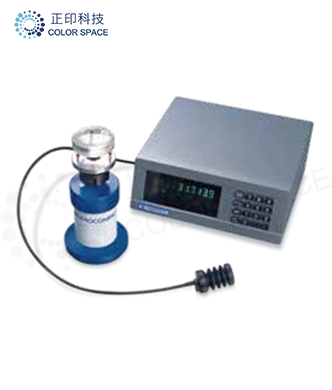

SPHEROCOMPACT Compact Spherometer
Compact Spherometer with High-Precision Ruby Ball Ring


Model and technical parameters:

产品型号 SpheroCompact
SuperSpherotronic UltraSpherotronic
Curvature Range (Convex) 2.5mm... +2mm... +2mm...
Curvature Range (Concave)
- 4mm... - 4mm... - 4mm...
Linear Encoder Travel ± 12.5mm ± 30mm ± 30mm
Sample Diameter Range 6mm...500mm 4mm...500mm
Linear Encoder Resolution 0.1μm 0.1μm 0.02μm
Linear Encoder Absolute Accuracy ±0.5μm ±0.5μm ±0.1μm
Measurement Accuracy ±0.05% ±0.01% ±0.005%
Precision Ball Ring Material Other ball ring sizes customizable upon request Ruby Tungsten Carbide Tungsten Carbide
Standard Ball Ring Sizes 12.5mm,25mm,50mm,75mm,100mm,125mm 7.8mm,14mm,20mm,28mm,38mm,60mm,90mm,120mm
Optional Ball Ring Sizes 6mm,20mm,38mm,150mm 12mm,48mm,75mm,150mm 12mm,48mm,75mm,150mm
Standard Reference Flats Ф30mm @ λ/10;Ф50mm @ λ/10;Ф100mm @ λ/5;Ф150mm @ λ/3
Optional Reference Flats Ф250mm @ λ/2
Device Height 140mm 289mm 289mm
Device Diameter 90mm 185mm 185mm
Weight 1.5kg 6.5kg 6.5kg
Device Type Benchtop Device Benchtop Device Benchtop Device
① Measuring samples with a radius ≤ 4 mm requires replacing the ruby probe with a smaller one and using a 3.5 mm precision ball ring.
② The achievable maximum measurement accuracy depends on the curvature radius of the sample and the ball ring used. For details regarding special measurements, please contact us.
