Advanced MTF Measurement Instrument for AR Lens and Waveguide R&D

Brand: Trioptics
Model：ImageMaster® Lab AR Flex
Product description: ImageMaster® Lab AR Flex is a high-precision MTF tester for AR lenses and waveguides, supporting RGB source, ±50° FOV, and transmission/reflection modes.
INQUIRY

ImageMaster® Lab AR Flex – Advanced MTF Measurement Instrument for AR Lens and Waveguide R&D

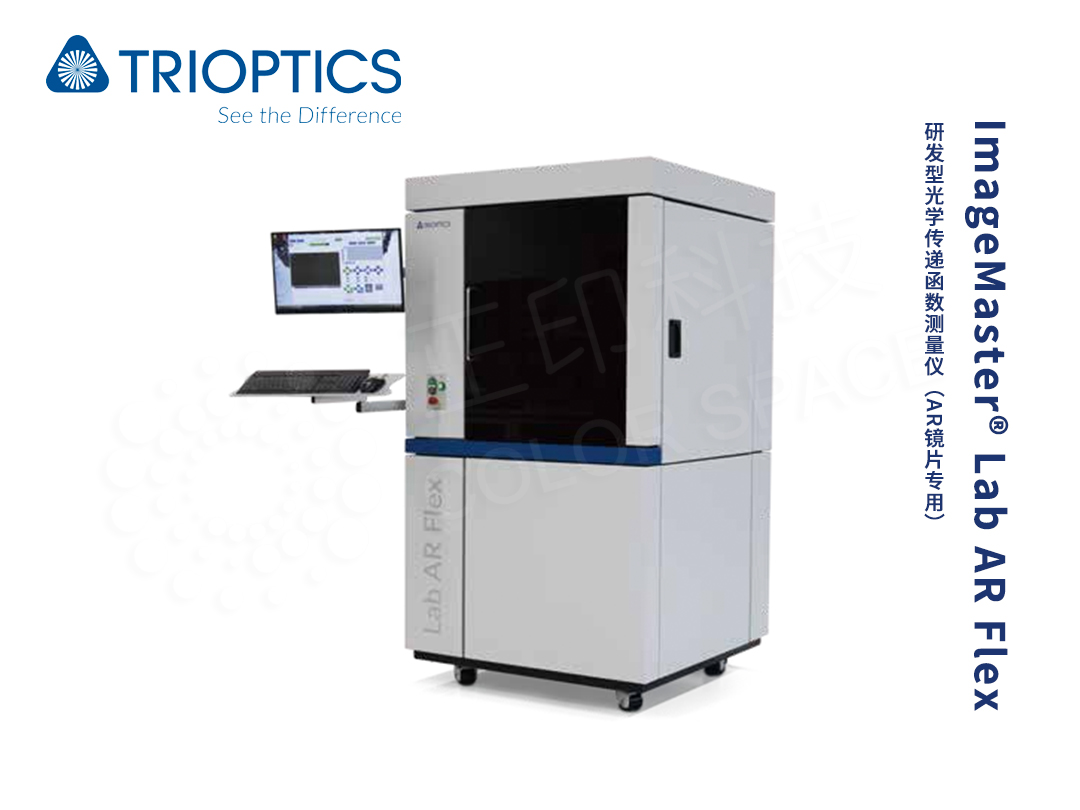

ImageMaster® Lab AR Flex is a precision optical tester developed by TRIOPTICS for AR lenses, waveguides, and optical modules. It is ideal for image quality testing and MTF analysis in augmented reality applications.

Key Features：

· High-accuracy testing for waveguides, collimation lenses, and projection optics

· Adjustable pupil distance and aperture

· Automatically switchable RGB light source

· Supports both transmission and reflection testing modes

· ±50° field of view

· Linear eyebox scanning

Measurement Parameters：

· On-axis MTF	· Effective Focal Length EFL
· Off-axis MTF	· Distortion
· Defocused MTF	· Eyebox
· Luminance (optional)	· Chromaticity (optional)
· Chromatic Aberration	· Chief Ray Angle (CRA)
