Fluorescence Uniformity Test Chart

Brand：ColorSpace
Model：CS-ECTS-TC29
Product description: CS-ECTS-TC29 is designed for NIRF endoscopic imaging in the 700–800 nm range. The DIN A4 chart with a structured dot matrix ensures accurate and repeatable uniformity evaluation.
INQUIRY

CS-ECTS-TC29 Fluorescence Uniformity Test Chart for Endoscope Imaging Quality Evaluation

ColorSpace in response to the needs of medical and industrial endoscope imaging systems, has developed and introduced the CS-ECTS-TC series of endoscope test chart. The CS-ECTS-TC29 Fluorescence Uniformity Test Chart is specifically designed for NIRF (Near-Infrared Fluorescence) endoscope imaging systems and is used to evaluate illumination and imaging uniformity within the 700 nm (MB) to 800 nm (ICG) wavelength range.

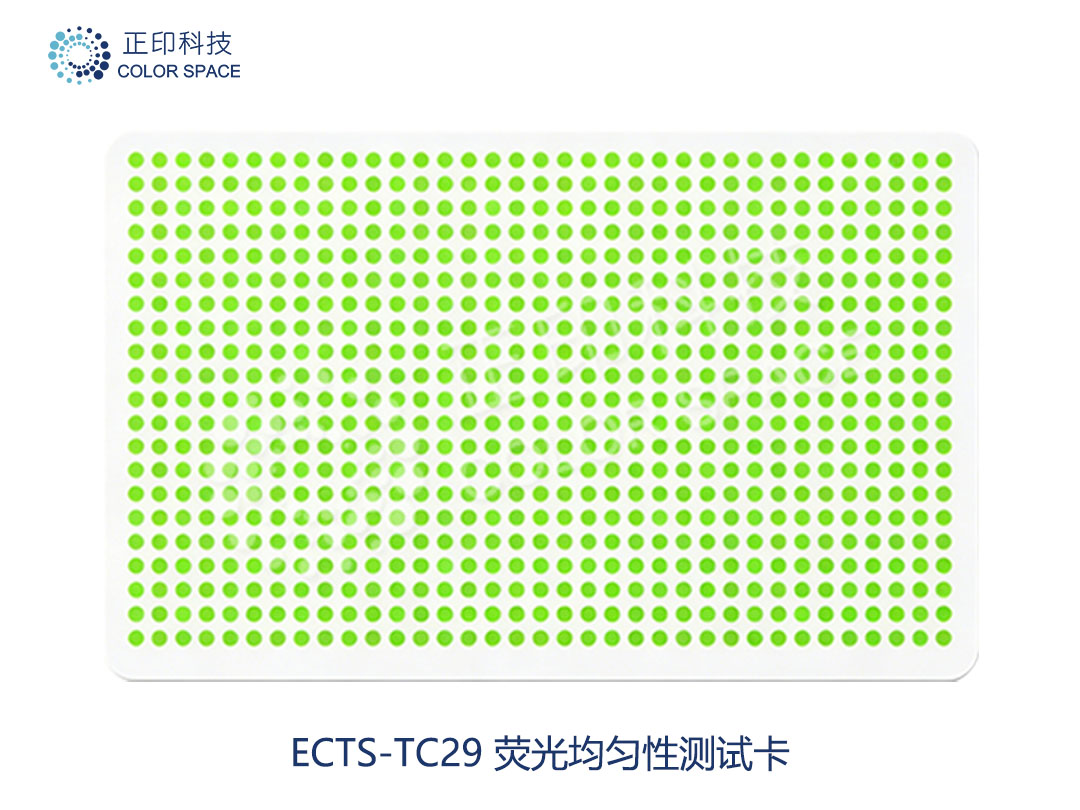

The CS-ECTS-TC29 is manufactured in DIN A4 standard size and features a high-precision structured dot matrix with a resolution of 10 dots/cm, printed on a specialized substrate. Under fluorescence excitation and near-infrared imaging conditions, this structured pattern clearly reveals the system’s brightness distribution and uniformity characteristics. The chart is spectrally optimized for NIRF imaging to ensure stable and repeatable results across the 700–800 nm band.

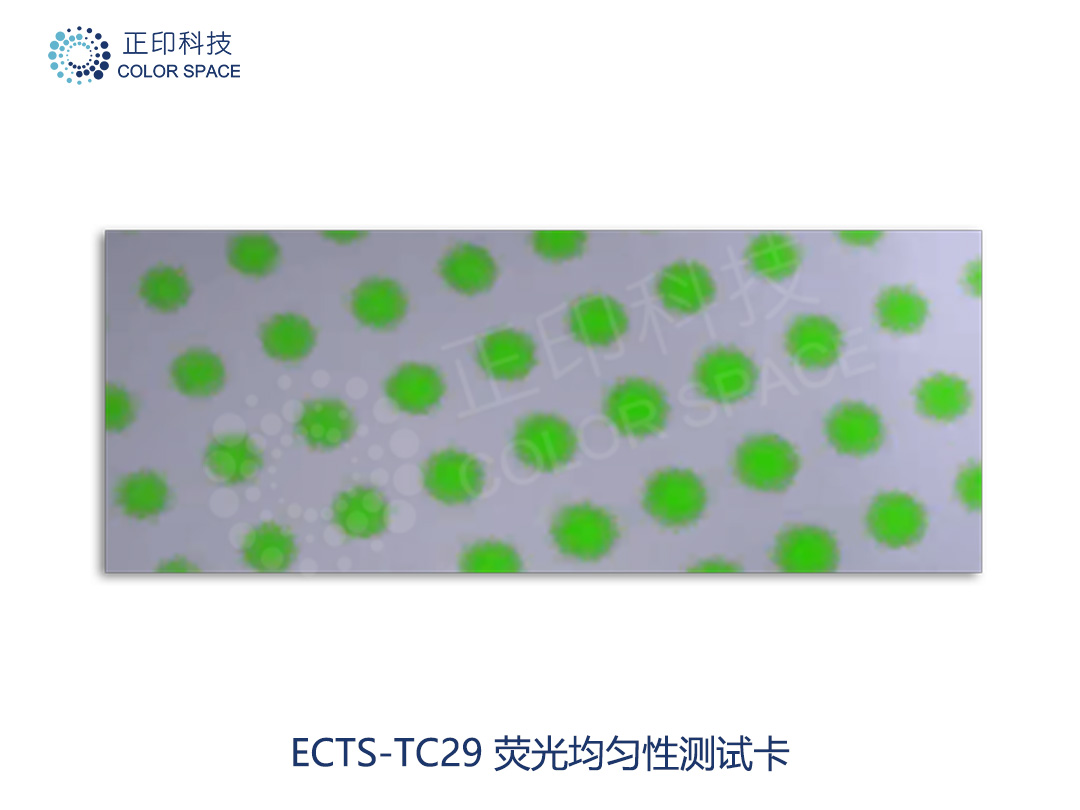

CS-ECTS-TC29 Fluorescence Uniformity Test Chart

Chart Specifications Parameters：

Parameter	Fluorescence Uniformity Test Chart
Model	CS-ECTS-TC29
Size	DIN A4
Chart Type	NIRF-optimized fluorescent material
Test Wavelength Range	700nm（NB）~800nm（ICG）
Usage	Directly mounted on the CS-ECTS testing system for use.
