Field of View Test Chart

Brand：ColorSpace
Model：CS-ECTS-TC13
Product description: ColorSpace has developed a series of endoscope test chart specifically for medical and industrial endoscopic imaging systems. The CS-ECTS-TC13 Field of View Test Chart is designed for calibrating and
INQUIRY

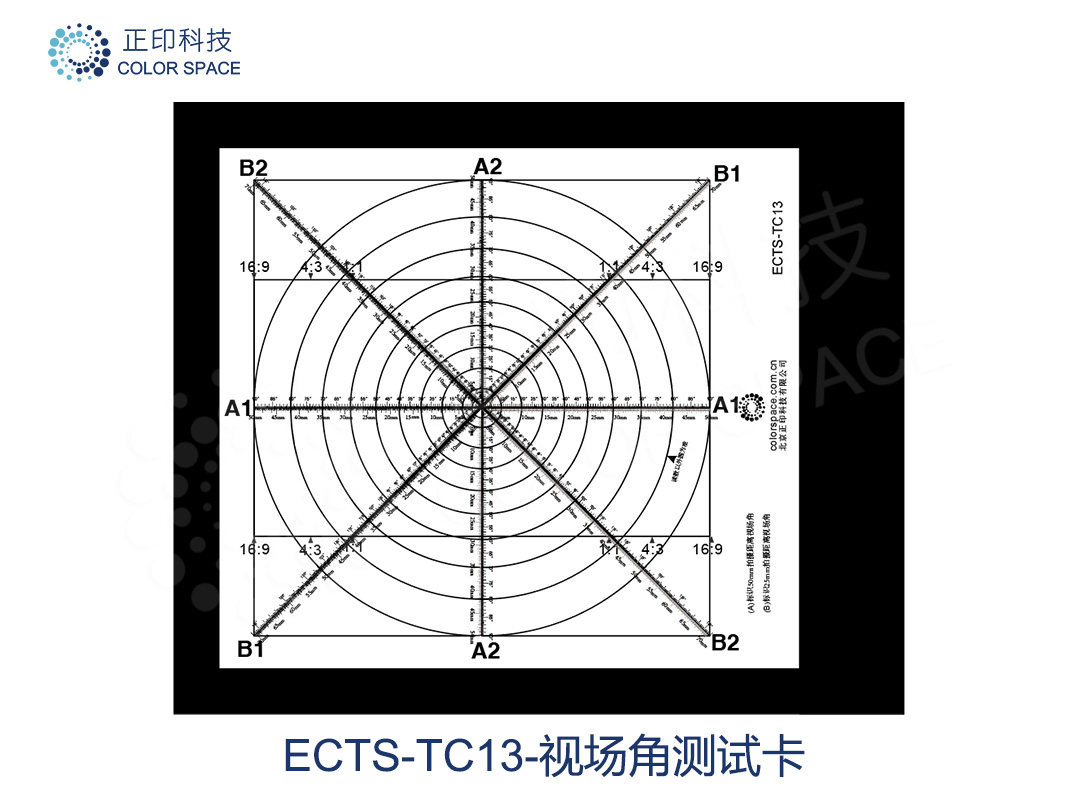

CS-ECTS-TC13 Field of View Test Chart for endoscope imaging quality testing

ColorSpace in response to medical and industrial endoscopic imaging systems, has developed and launched the CS-ECTS-TC series of endoscope test chart . The CS-ECTS-TC13 Field of View Angle Test Chart can be used to calibrate and test the field of view of inspection equipment. It ensures that the equipment's image is parallel to the test chart and that the camera's view is directly centered on the light source. It also facilitates the analysis of uniformity within the field of view. Customization options are available for different aspect ratios, such as 4:3 or 16:9.

CS-ECTS-TC02入瞳视场角测试卡Chart

Chart Specifications Parameters：

Parameters	Field of View Test Chart
Model	CS-ECTS-TC13
Size	160mm × 134mm
Chart Type	Glass Material Transmission Chart.
Use	Directly mounted on the CS-ECTS testing system for use.
