Automatic Inspection System for Painting Defects in Automobile Production Line

  • 品牌:EINES
  • 型号:EINES
  • Product description: Discover the EINES automatic paint defect detection system, an advanced automated vision inspection equipment designed specifically for the automotive painting industry. This system meets the high sta
  • INQUIRY

、Characteristics and Needs in the Development of the Automotive Paint Industry

Automotive painting is a crucial part of the automobile production process, affecting not only the vehicle's appearance but also its corrosion resistance and durability. With the continuous development of the automotive industry, consumer demands for paint quality have become increasingly stringent. Modern automotive painting processes need to balance high efficiency, high quality, and environmental protection. Consequently, the development of the automotive painting industry exhibits the following characteristics:

  1. High-efficiency Automation: Traditional manual painting can no longer meet the demands of large-scale production, making automated painting equipment the mainstream choice.
  2. Refined Management: To ensure the quality of paint on every vehicle, refined management and real-time monitoring are becoming increasingly important.
  3. Environmental Requirements: With increasingly stringent environmental regulations, low-pollution, low-energy-consumption painting processes and equipment are the direction for industry development.
  4. Drawbacks of Manual Visual Inspection: Traditional manual visual inspection has many drawbacks, such as low efficiency, susceptibility to fatigue and subjective errors, and inability to operate around the clock. These drawbacks make automated and intelligent visual inspection systems an urgent need.

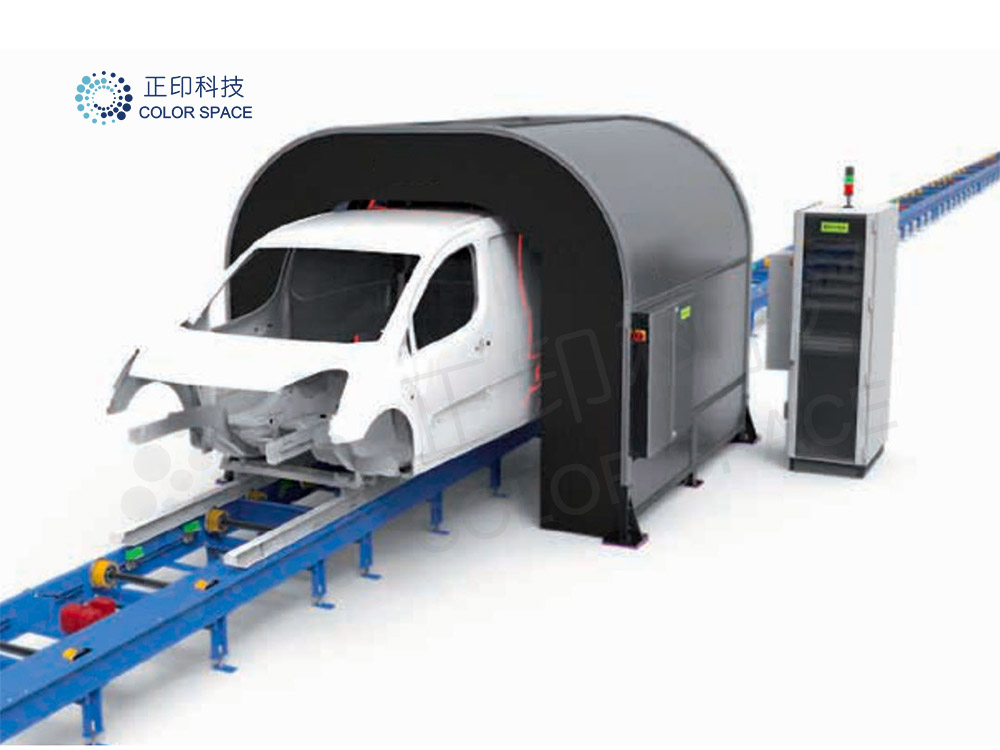

汽车产线涂装瑕疵自动检测系统


二、Functions Achieved by Automated Paint Visual Inspection Solutions

The EINES automated paint defect inspection system is an advanced piece of equipment designed to meet the aforementioned needs. Utilizing the latest technology to accurately scan the car body's curves, it achieves the following functions:

  1. Defect Detection: Precisely detects minute defects on the paint surface, including wrinkles, pinholes, and other small paint flaws.
  2. Dent and Protrusion Detection: In addition to paint defects, it can detect dents and protrusions on the car body surface, ensuring overall flatness.
  3. Multi-color Scanning: Capable of scanning bi-color car bodies and automatically recognizing new colors.
  4. Seamless Integration: Can be installed using existing conveyor belts, movable platforms, or lifts, without the need for additional spending on modifying conveyors.



三、Advantages and Product Features

The EINES system has significant advantages and unique product features in the industry:

  1. Efficiency: Short-cycle scanning on the assembly line without interrupting production, significantly increasing production efficiency. The system can process over 60,000 images per vehicle in a few seconds.
  2. High Adaptability: Small footprint, lightweight aluminum structure design, flexible installation locations, and adaptable to various car body sizes and shapes.
  3. High Reliability: No moving parts within the system, reducing wear and maintenance costs, and no need for safety measures.
  4. Good Expandability: Interfaces reserved for future automated paint repair systems, providing necessary information on defect types and locations.
  5. Labor and Resource Savings: Due to the high efficiency of automated inspection, companies can reduce reliance on manual inspection, lowering labor costs and material waste caused by human errors.Value Brought to Automotive Production Lines

四、The EINES automated paint defect inspection system brings significant value to automotive production lines, manifested as follows:

  1. Enhanced Quality Control: Through precise detection, ensuring each vehicle's paint quality meets standards, reducing rework rates and customer complaints, and improving customer satisfaction.
  2. Reduced Production Costs: Automated inspection reduces manual intervention, lowering labor costs and losses due to human errors. The design that requires minimal maintenance also significantly reduces operational costs.
  3. Increased Production Efficiency: High-speed scanning and real-time detection ensure production cadence is unaffected, significantly improving overall production line efficiency.
  4. Data Traceability: The system records paint inspection data for each vehicle, facilitating quality traceability and improvement, helping to continuously optimize production processes.


五、More Advanced Technical Features

1、Advanced 3D Technical Details

The EINES automated paint defect inspection system employs advanced 3D technology, with all cameras calibrated in 3D space, allowing defects to be precisely located with six degrees of freedom (including pointing vector). The system can flexibly inspect various car models, variants, and colors, and scan bi-color cars within a single cycle.



2、Human-Machine Interface Functions

The system's human-machine interface is designed to be simple and intuitive. Operators can view inspection results in real-time via monitors, tablets, or smartphones, conducting paint repairs without affecting production progress. Additionally, operators can receive feedback through smartwatches and fixed HMI stations, ensuring the entire operation process is efficient and smooth.



3、Advanced Reporting Tools

The EINES® system is equipped with advanced reporting tools that can generate detailed distribution analysis reports and executive summary reports. Users can query all quality data recorded for a vehicle by inputting the VIN (Vehicle Identification Number) for in-depth analysis or quality inspections. The big data analysis feature helps companies identify trends in the production process, facilitating predictive and preventive maintenance.



4、Network Services

The system supports network services, allowing users to generate reports on office computers using standard Windows web browsers, making remote monitoring and management convenient. The networking capabilities enable the system to seamlessly integrate with customers' existing production lines and systems, accommodating diverse customer needs.


5、Other Advanced Features

The EINES system is compact, occupying a small area, easy to move, and environmentally friendly, reducing initial investment and maintenance costs. Its high cost-effectiveness and quick return on investment make it an indispensable tool in modern automotive manufacturing, capable of achieving rapid payback by enhancing efficiency and productivity.

In summary, the EINES automated paint defect inspection system, with its advanced technology and significant advantages, is bringing a revolutionary change to the automotive paint industry. It not only improves paint quality and production efficiency but also brings substantial economic benefits and market competitiveness to enterprises, making it an indispensable tool in modern automotive manufacturing.
