ISO Test Charts

ISO-16505 Test Charts

Brand: ColorSpace/Imatest
Model: CS-TC038
Product description: This set of targets is for use with ISO16505 testing of Camera Monitor Systems (CMS) to replace mandatory inside and outside rearview mirrors for road vehicles. This International Standard outlines g
INQUIRY

ISO16050 Chart-Compliance with ISO 16505 Road vehicles - Ergonomic and performance aspects of Camera Monitor Systems - Requirements and test procedures

The iso 16505 series of test charts can be used for testing and evaluating the performance of the imaging system in terms of various parameters: grey scale, white balance, aberration, magnification, colour reproduction, etc. Analyses can be performed using imatest software.

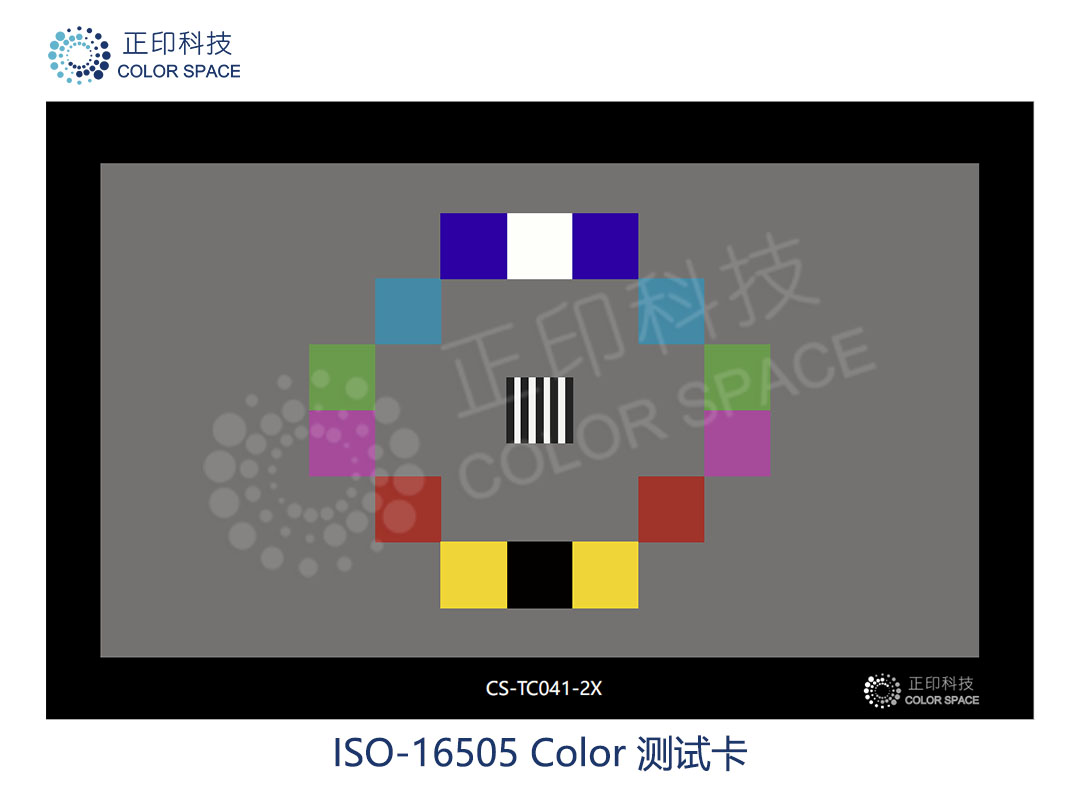

· ISO-16505-Color – This color chart uses eight colors (R, G, B, Ye, Cy, Mg, black, and white) based on the X-rite “ColorChecker” chart as specified. The color patches are arranged to keep an even distance from the image center with complementary colors on the opposite side. The background is a diffuse ~18% gray.

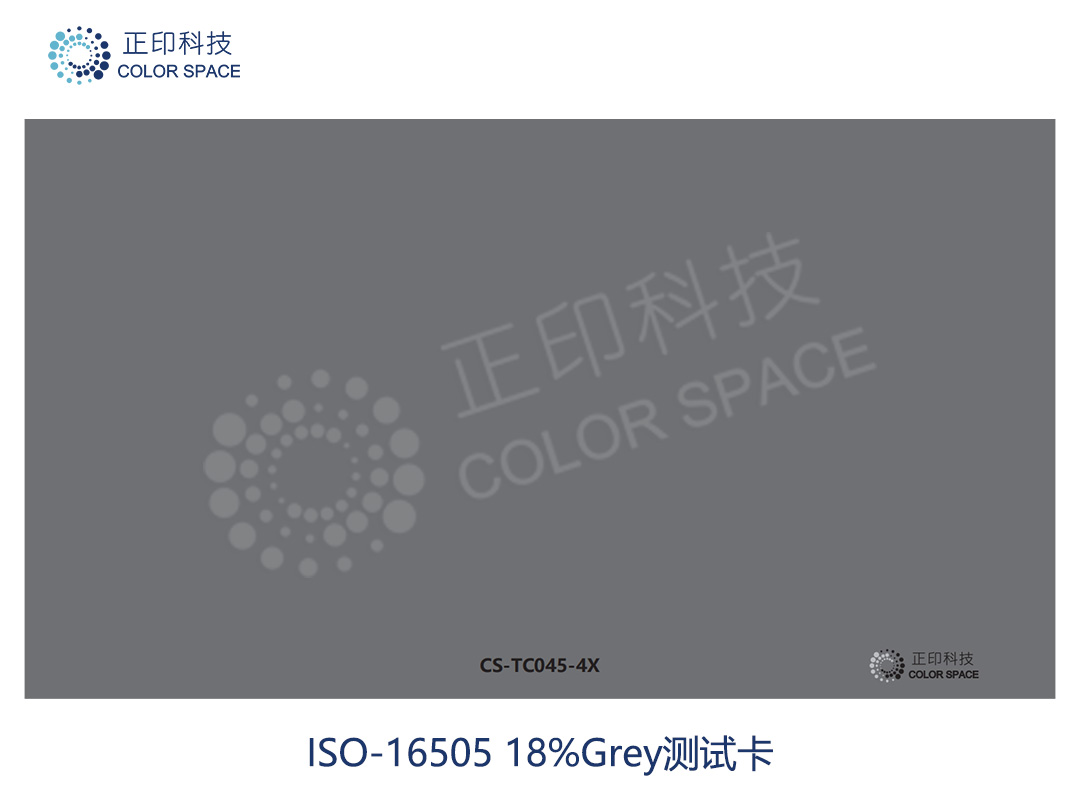

· ISO-16505-Gray18 – This 18% gray chart design is a single tone gray chart with >98% uniformity.

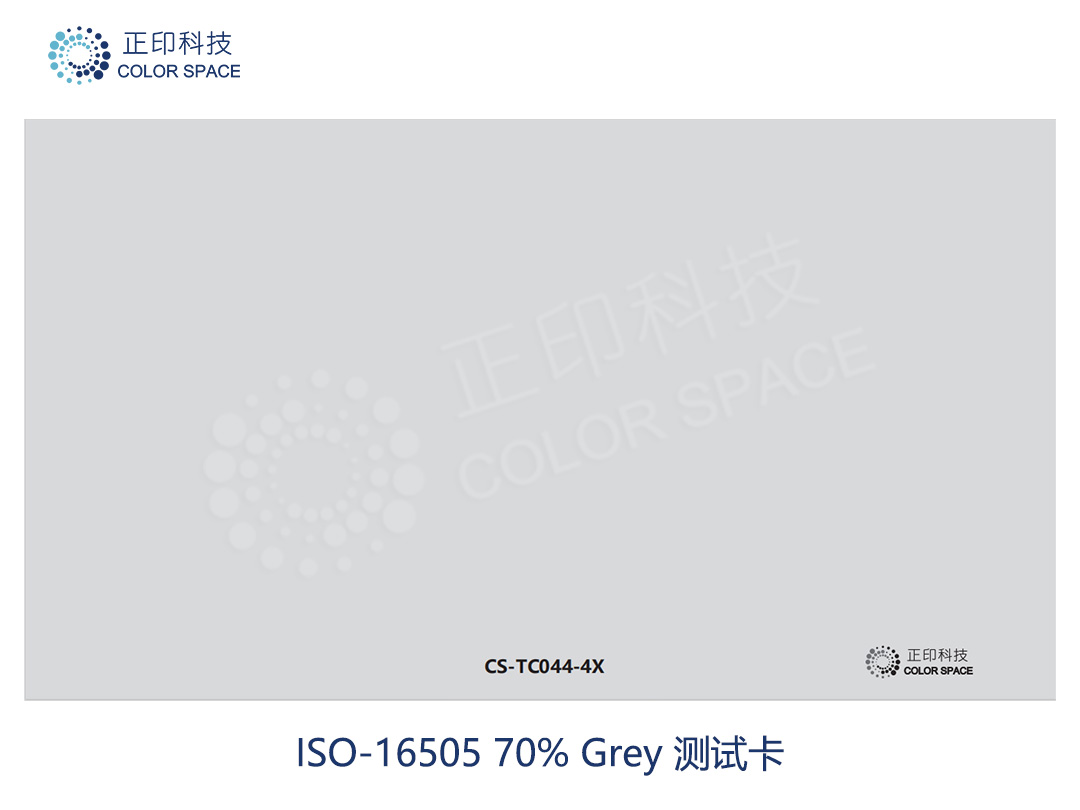

· ISO-16505-Gray70 – This 70% gray chart design is a single tone gray chart with >98% uniformity.

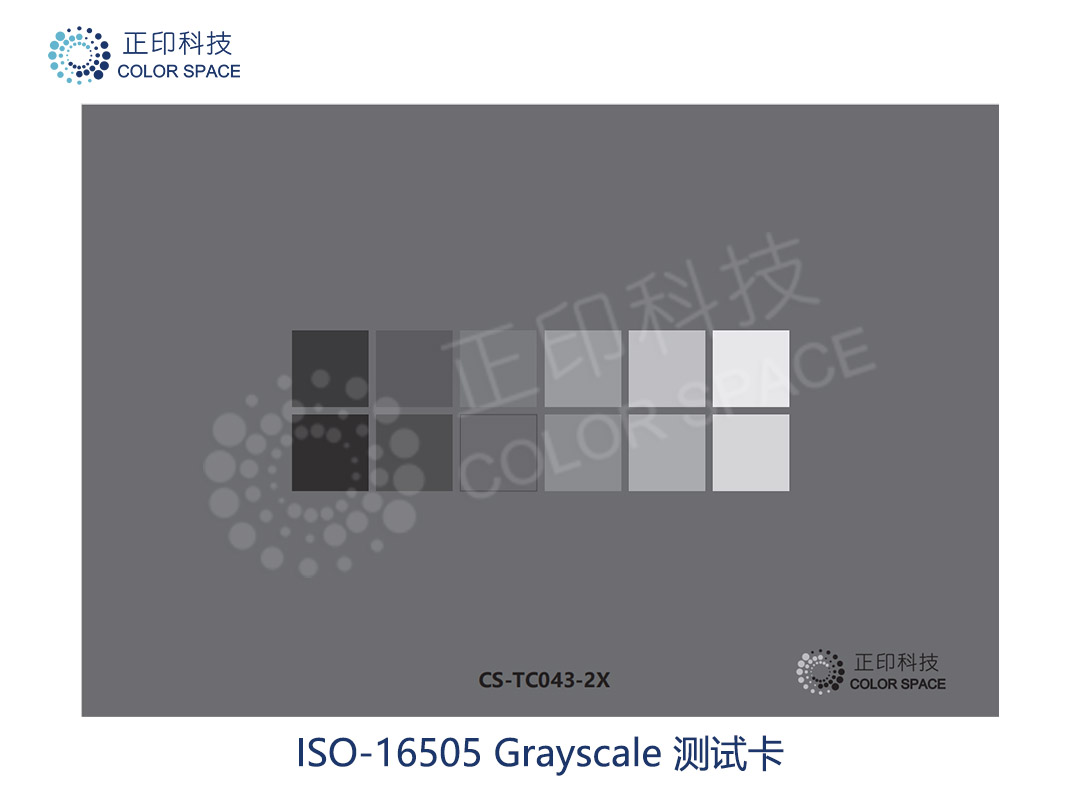

· ISO-16505-Grayscale – The grayscale chart is outlined in an earlier version of the standard for luminance measurements. It can be analyzed by the stepchart module.

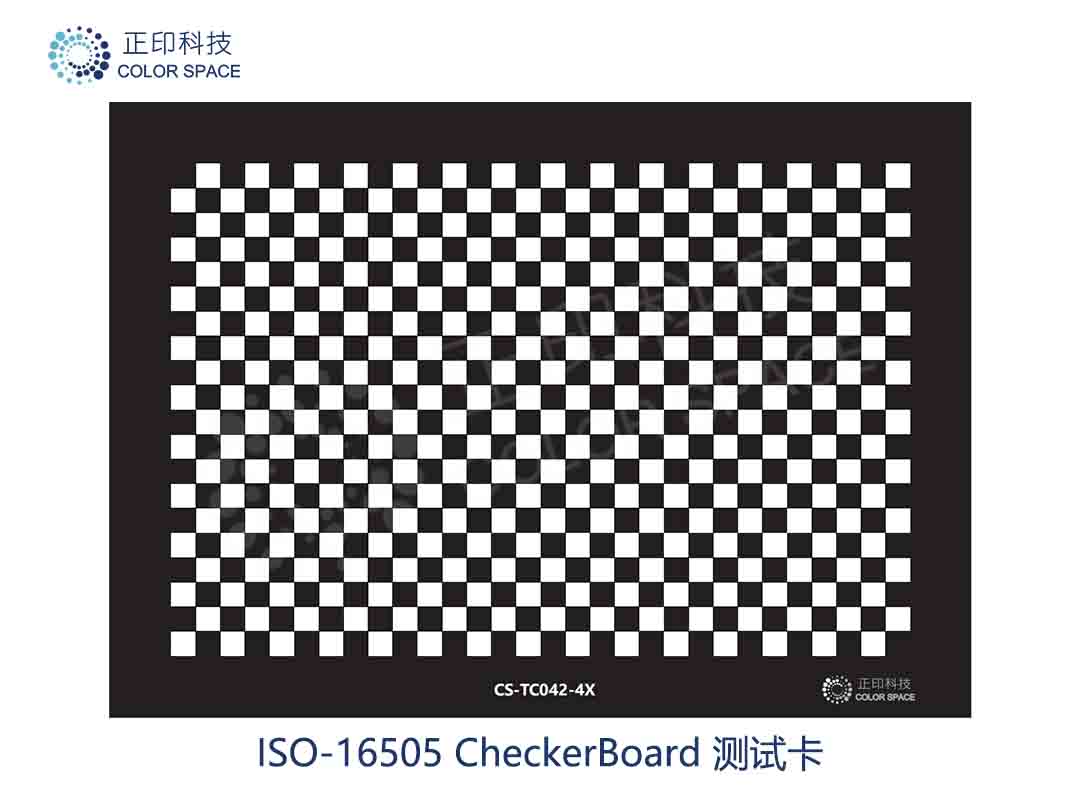

· ISO-16505-CB – This high contrast ‘chessboard’ (checkerboard) target is for measuring distortion and magnification according to the specifications outlined in the standard.
· ISO-16505-SFR – The SFR chart is made up of five high contrast slanted squares designed for measuring MTF of the system.

Product Parameter：

Product Pictures	Chart	2x (mm)	4x (mm)	5.5x (mm)
	ISO-16505-Color	24” × 15.75” 610 × 400	48” × 31.5” 1219 × 800	66” × 43.31” 1676 × 1100
	ISO-16505-Gray18	36” × 24” 914.4 × 610	36” × 24” 914.4 × 610	36” × 24” 914.4 × 610
	ISO-16505-Gray70	24” × 15.75” 610 × 400	48” × 31.5” 1219 × 800	66” × 43.31” 1676 × 1100
	ISO-16505-Grayscale	24” x 15.75” 610 x 400	48” x 31.5” 1219 x 800	66” x 43.31” 1676 x 1100
	ISO-16505-CB	24” × 15.75” 610 × 400	48” × 31.5” 1219 × 800	66” × 43.31” 1676 × 1100
	ISO-16505-SFR	24” × 15.75” 610 × 400	48” × 31.5” 1219 × 800	66” × 43.31” 1676 × 1100
