imatest Test Equipment

OSCM10120 10° Collimator

Brand：imatest
Model：OSCM10120
Product description: imatest OSCM10120 Collimator, simulates a test distance from 1 meter to infinity in a confined laboratory space. Suitable for testing long-focus camera systems, offering flexible lighting options and
INQUIRY

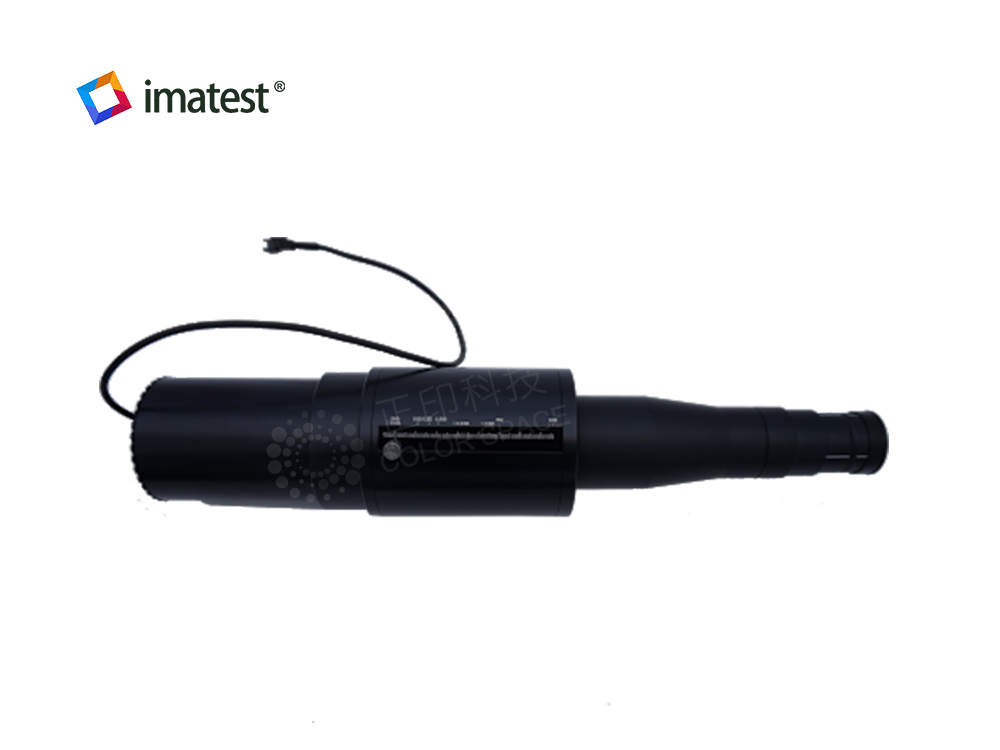

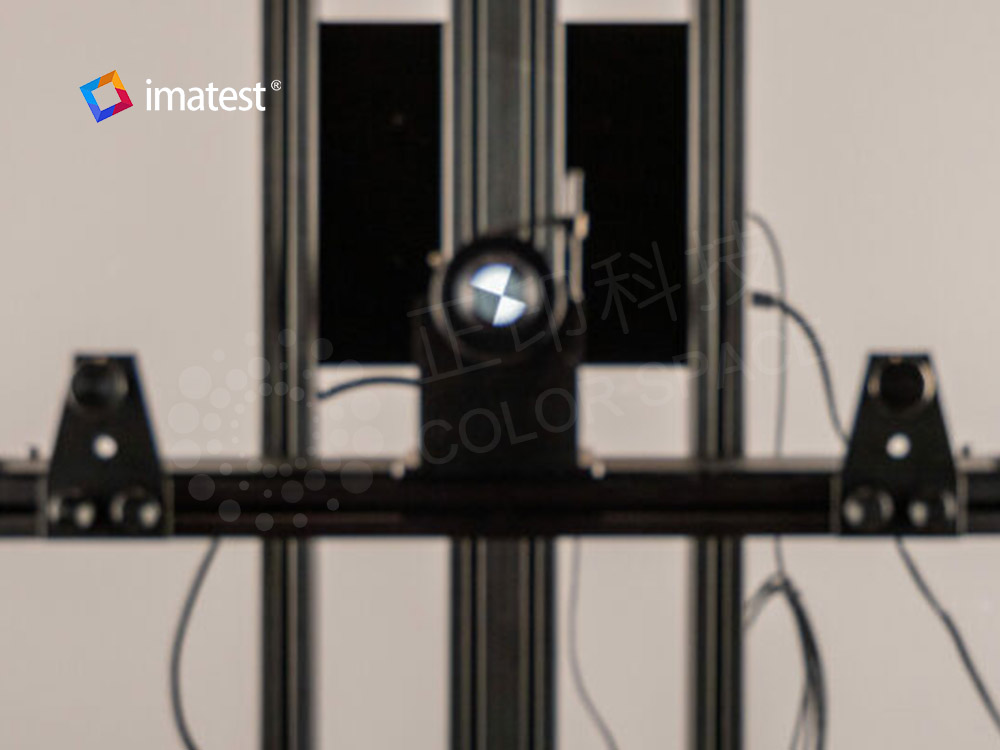

OSCM10120 10° Collimator - High-Precision Long-Distance Testing Solution

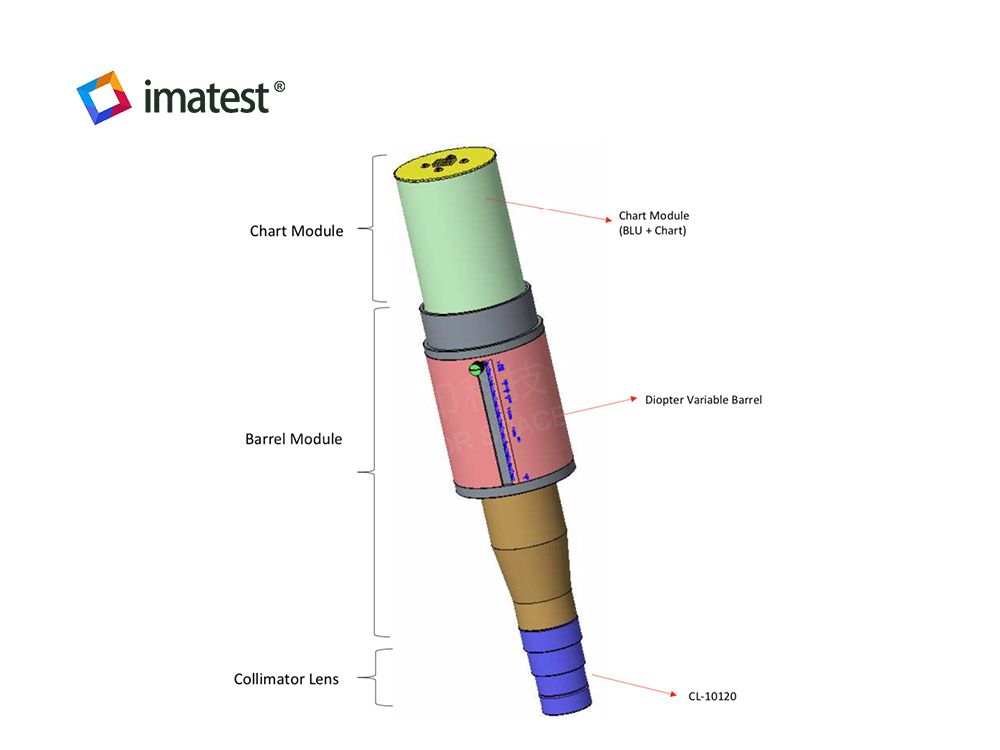

The imatest OSCM10120 Collimator is a high-precision device specifically designed for long-distance testing. It can simulate a test distance from 1 meter to infinity in a confined laboratory or production environment. With its high-resolution black and white LVT film Reg target lines, the OSCM10120 Collimator can project a 10º detectable field of view (FOV), providing accurate testing conditions for camera systems.

A complete CM10120 system requires an LED controller (available with 5, 8, or 13 channels).

OSCM10120 10°准直器

Features:
1. Simulated Distance: From 1 meter to infinity, manually adjustable, solving the challenge of long-distance testing.
2. Target Lines: High-resolution black and white LVT film Reg target, high-precision target projection, ensuring the accuracy of test results.
3. Compatibility: Suitable for a variety of camera systems.
Application Scenarios: Laboratory testing, production line quality control, testing of long-focus camera systems.

OSCM10120 Collimator Product Specifications:

Parameters	OSCM10120 Collimator
Model	OSCM10120
Effective focal length	323.9mm
Exit pupil size	ø 4.5 mm
VIS LED color temperature	6500K±500K（LED）
NIR LED wavelengths	850nm or 940nm
Target reticle diameter	60.2mm
Inspectable FOV	10°
Overall dimensions	376.5mm × 77.4mm（L× Diameter）
Shipping Weigh	2.08Kg（Collimator Weigh：1.08Kg）
HTS Code	9002.19-9000

Controller Specifications:

Overall dimensions:	200mm × 170mm × 340mm（WHC）
Input Voltage	AC110~220V（50Hz/60Hz）
Shipping dimensions	47cm × 35cm × 34cm
HTS code	9002.19-9000
Weight	5 Channel	8 Channel	13 Channel
Net Weight	4.55Kg	5.95Kg	6.42Kg
Shipping Weight	5.55Kg	7.1Kg	7.42Kg
