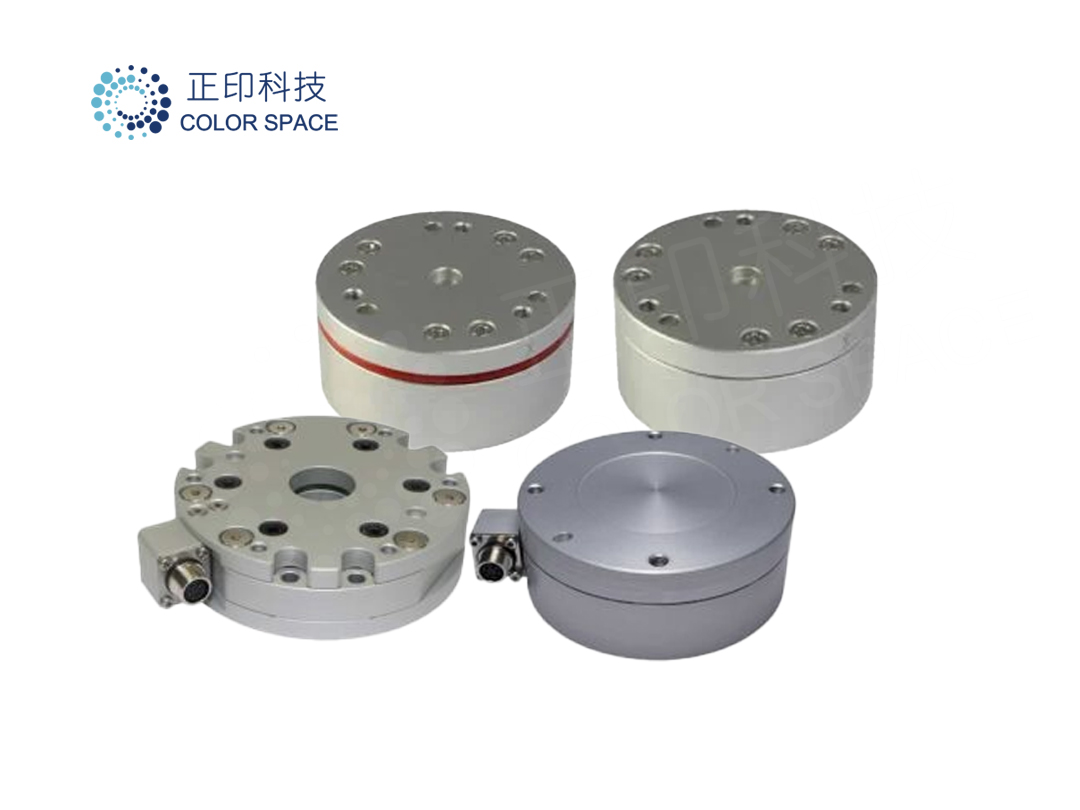

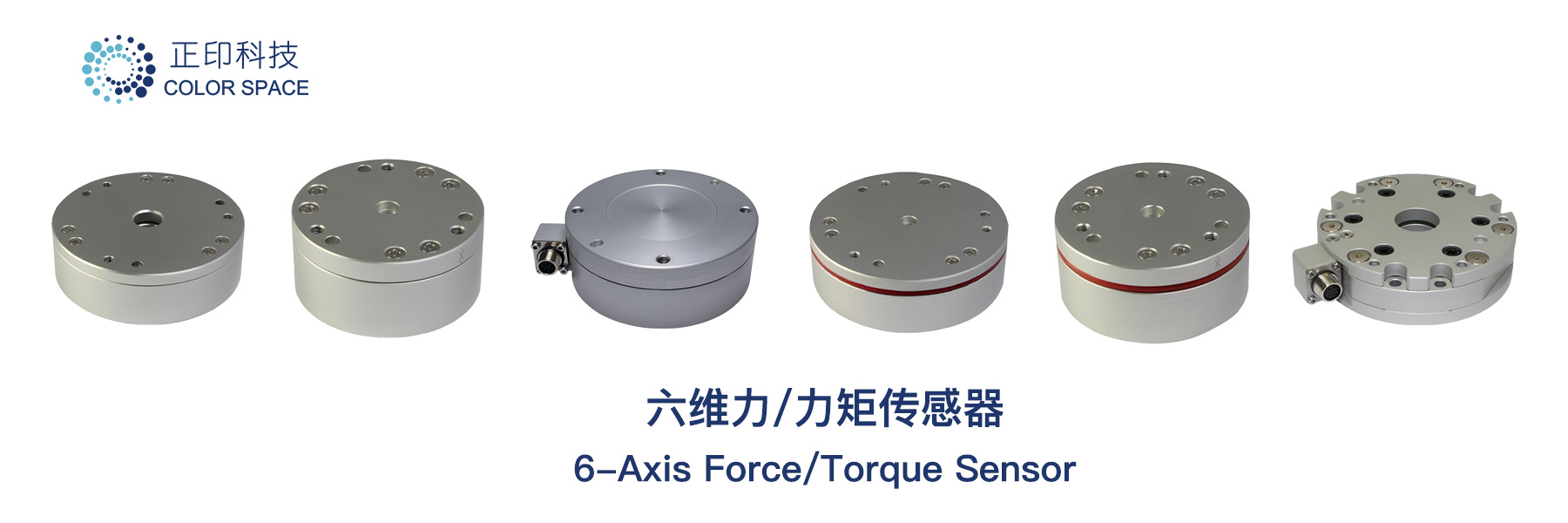

The 6-Axis Force Torque Sensor is a high-precision multi-axis force measurement device capable of simultaneously detecting forces along the X, Y, and Z axes, as well as moments around the roll, pitch, and yaw axes. It is widely used in applications such as robotic gripping, display touch force testing, VR human-computer interaction, automotive center console touch force measurement, and medical device load validation.
This product series features high sensitivity, excellent rigidity, stable linear output, and zero-point stability. It supports multiple industrial communication protocols, making it easy to integrate into automated testing platforms.
Issues with Traditional Manual Methods· Traditional single-axis force sensors cannot reflect complex multi-dimensional force scenarios
· Dynamic mechanical testing for products like touchscreens, center consoles, and VR devices lacks real-time feedback
· Force measurement and image data are isolated, leading to low testing efficiency and poor traceability
· Test data cannot be linked with industrial automation inspection platforms
Core Problems Solved
· Real-time six-axis synchronized force measurement, fully capturing dynamic load conditions
· Integrates with automated capture robots for combined “force control + imaging” testing
· Abnormal torque conditions can trigger multi-angle image capture in real time, recording the entire test process
· Compatible with EtherCAT/CAN industrial networks, easily integrated into multi-device automation systems
Key Features
· Hollow-through design / sealed dustproof structure
· Select models equipped with temperature compensation
· Optional built-in EtherCAT communication module
· Compatible with collaborative robots and industrial robots
· Capacitive 6-axis force/torque sensor offering high stability and excellent cost-performance ratio
· Multiple interface options: CAN, RS232, RS422, USB, EtherCAT
Product Specifications
Item | Unit |
RFT40 -SA01 |
RFT44 -SB01 |
RFT60 -HA01 |
RFT64- SB01 |
RFT64- 6A01 |
RFT80- 6A02 |
RFT80- 6A02 |
|
Dimension | Diameter | mm | 40 | 44 | 60 | 64 | 64 | 80 | 80 |
Height | mm | 18.5 | 20 | 18.5 | 20 | 30 | 22 | 30 | |
Data Rate | Max | Hz | 200 | 200 | 1000 | 1000 | 1000 | 1000 | 1000 |
Load Capacity | Fx、Fy | N | 100 | 100 | 150 | 150 | 200 | 400 | 400 |
Fz | N | 150 | 150 | 200 | 200 | 200 | 400 | 400 | |
Tx、Ty、Tz | Nm | 2.5 | 2.5 | 4 | 4 | 10 | 20 | 20 | |
Resolution |
Fx、Fy |
mN | 200 | 200 | 100 | 150 | 80 | 100 | 80 |
Fz |
mN | 200 | 200 | 150 | 200 | 80 | 100 | 100 | |
Tx、Ty、Tz |
mNm | 8 | 8 | 5 | 5 | 4 | 5 | 4 | |
Overload Capacity |
Fx、Fy |
% | 150 | 150 | 150 | 150 | 300 | 150 | 300 |
Fz+(Fz-) |
% | 150(300) |
150(300) |
150(300) |
150(300) |
300(300) |
200(400) |
300(300) |
|
Tx、Ty、Tz |
% | 150 | 150 | 150 | 150 | 300 | 200 | 300 | |
Hysteresis |
Fx、Fy |
%FS | 2 | 2.5 | 2.5 | 3 | 1 | 2.5 | 1 |
Fz |
%FS |
0.5 | 1 | 1 | 2 | 1.5 | 1 | 1.5 | |
Tx、Ty、Tz |
%FS |
1 | 3 | 1 | 2 | 2 | 1 | 2 | |
Cross Talk |
Fx、Fy |
%FS |
3 | 3 | 3 | 3 | 3 | 3 | 3 |
Fz |
%FS |
3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Tx、Ty、Tz |
%FS |
3 | 3 | 3 | 3 | 3 | 3 | 3 | |
Weight(w/o cable) |
g | 60 | 70 | 120 | 140 | 175 | 226 | 294 | |
Power Requirement | W,VDC |
0.5W @5VDC (1.5W@5VDC for EtherCAT models) |
|||||||
Output Interface | optional |
CAN | RS232 | RS422 | USB | EtherCAT |
