Soft Proofing Viewing Booth CS-DSPL-D2

品牌：ColorSpace
Model: CS-DSPL-D2
Product description: The CS-DSPL-D2 provides a controlled viewing environment for print, packaging, and color-critical applications, with D50/D65 lighting and adjustable illuminance from 0–2000 lux.
INQUIRY

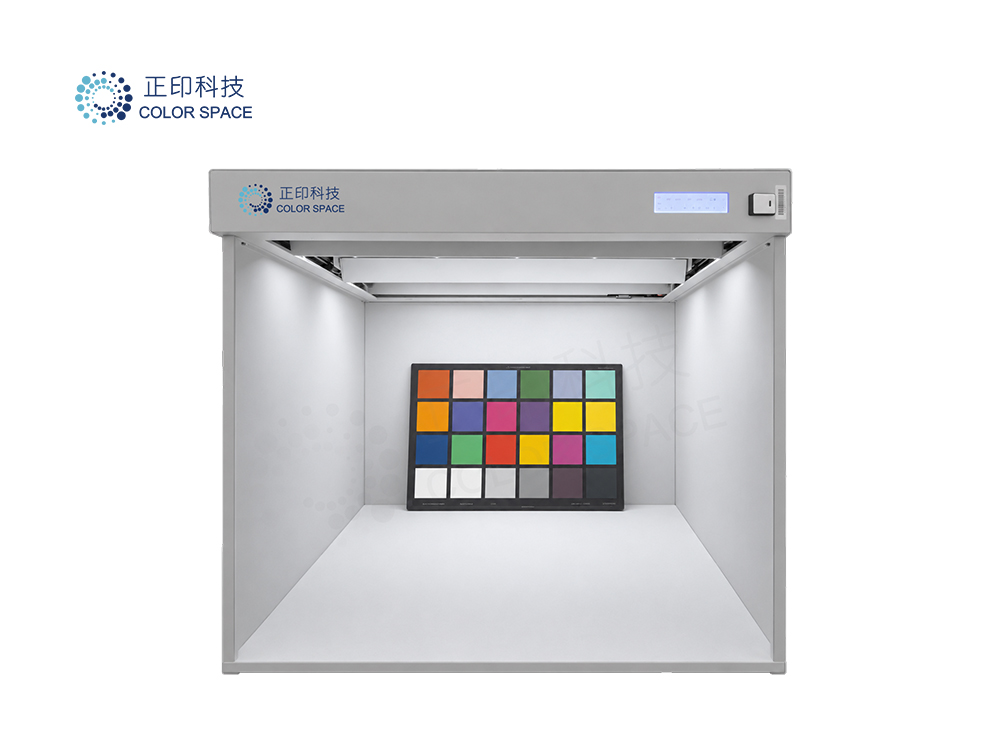

CS-DSPL-D2 Soft Proofing Viewing Booth--Standardized Viewing Conditions for Print and Packaging Color Evaluation

The CS-DSPL-D2 Soft Proofing Viewing Booth is designed for printing, packaging, photography, advertising, and other color-critical applications. It provides a stable and controlled viewing environment with consistent lighting conditions for print proof evaluation, sample inspection, and visual color assessment.

The system supports quick switching between D50 and D65 lighting and provides continuously adjustable illuminance from 0 to 2000 lux. Combined with a neutral-gray viewing surround, it helps minimize the influence of ambient light and surrounding colors on visual judgment, supporting more stable and repeatable color evaluation.

The product is designed with reference to standardized viewing principles used in graphic technology and image evaluation. It can be used for the visual evaluation of print proofs, packaging samples, and other color-critical materials. For applications requiring viewing conditions related to ISO 3664:2025, the lighting configuration and performance can be selected and verified according to the applicable viewing condition and measurement requirements.

Note: ISO 3664:2025 specifies viewing conditions for images. Whether a specific product meets a particular viewing condition should be determined through appropriate testing and verification of the applicable lighting, spectral characteristics, illuminance, viewing surround, and other relevant requirements.

CS-DSPL-D2S 四开软打样光源箱

Key Features

· D50 / D65 Dual Lighting：Supports quick switching between D50 and D65 lighting, allowing users to select the appropriate illumination condition according to different print workflows, display matching requirements, and visual evaluation needs.

· High Color Rendering：Features a high color-rendering lighting system with a Color Rendering Index Ra > 97 for the standard model, subject to the applicable product specifications and measurement conditions, helping provide accurate visual reproduction of sample colors and details.

· Continuously Adjustable Illuminance：Provides continuously adjustable illuminance from 0 to 2000 lux, allowing the viewing condition to be adjusted according to sample inspection, color evaluation, and different working environments.

· Neutral-Gray Viewing Surround：Features an N7 neutral-gray interior, with darker-gray options available, to help reduce the influence of surrounding colors on visual adaptation and color judgment.

· Light Stability and Closed-Loop Correction：An optional light-source monitoring and closed-loop automatic correction function is available to continuously manage lighting performance and help maintain stable and consistent viewing conditions.

· Software-Based Light Management：The upgraded CS-DSPL-D2S provides a software control interface and can be integrated with lightQualityCheck for light-source performance analysis, test report generation, and measurement data traceability.

Applications

· Printing and Packaging：For the visual evaluation and comparison of print proofs, production samples, packaging samples, and other color-critical materials.

· Soft Proofing Review：Can be used together with a properly color-managed and calibrated display system for visual comparison and review between on-screen soft proofs and physical print samples.

· Photography and Advertising：Suitable for color review of photographic works, advertising images, and other visual output materials.

· Industrial Product Color Evaluation：For visual color inspection and confirmation of product samples, material samples, and surface finishes.

· Design and CMF Review：Suitable for color review during the design stage and can be integrated with standard viewing light booths, professional displays, and CMF color management platforms to support an integrated color workflow from design and display evaluation to physical sample inspection.

· Standardized Color Evaluation and Management：In printing, packaging, and other color-critical applications, the viewing environment can directly affect visual color judgment. Controlling the lighting, illuminance, and viewing surround helps reduce variations caused by different observation conditions.The CS-DSPL-D2 provides a controlled foundation for visual color evaluation through standardized lighting, adjustable illuminance, and a neutral-gray viewing surround.For printing and packaging applications, D50 lighting can be configured according to the intended viewing condition and project requirements. The actual lighting performance can be measured and verified using appropriate spectroradiometric and photometric instruments.

Specifications

Parameter	CS-DSPL-D2 Soft Proofing Viewing Booth — Standard	CS-DSPL-D2S Soft Proofing Viewing Booth — Advanced
Enclosure Dimensions	712mm × 651.04mm × 538.36mm	712mm × 651.04mm × 538.36mm
Correlated Color Temperature	D65/D50	D65/D50
Color Rendering Index	Ra > 97	Ra > 96
Illuminance Range	0-2000 lux	0-2000 lux
Control Method	Manual	Manual, with software control interface
Light Stability	Optional closed-loop automatic correction	Optional closed-loop automatic correction
Interior Color	N7, darker-gray option available	N7, darker-gray option available
Maximum Sample Size	Approx. 420 mm × 570 mm	Approx. 420 mm × 570 mm
UV Fluorescence Inspection	-	Integrated UV light source for inspection of optical brighteners and fluorescent features in paper
Light Management Software	-	Compatible with light Quality Check for light-source performance analysis, test report generation, and data traceability
