SFRreg Resolution Test Chart

Brand:Imatest
Model:CS-TC017
Product description: CS-TC017 SFRreg Resolution Test Chart is designed for ultra wide-angle lenses and panoramic cameras. Compatible with Imatest software, it supports resolution, sharpness and edge performance evaluation
INQUIRY

CS-TC017 SFRreg Resolution Test Chart

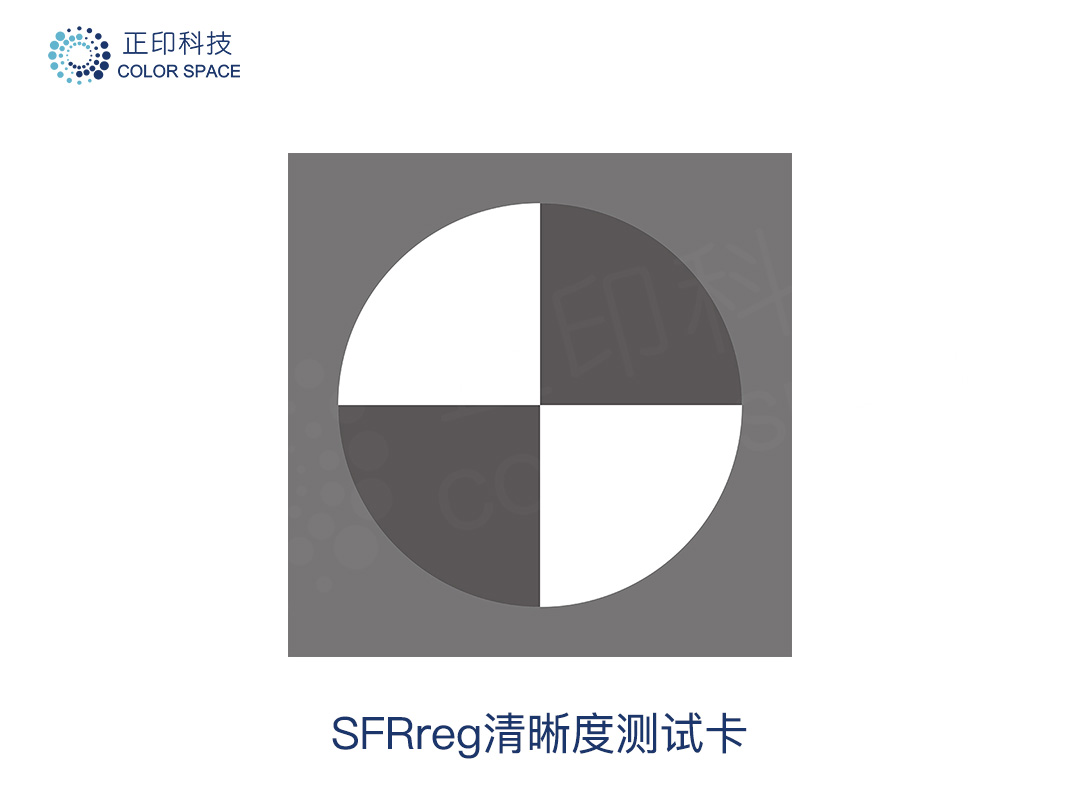

CS-TC017 SFRreg Resolution Test Chart is a professional optical imaging test chart designed for resolution and sharpness evaluation of ultra wide-angle lenses, panoramic cameras and large field-of-view imaging systems.

For imaging systems with viewing angles above 170°, image quality evaluation becomes more challenging due to increased distortion and reduced edge detail reproduction. The SFRreg test pattern enables objective evaluation of image sharpness performance across different image areas, supporting lens development, image quality assessment and product validation.

The chart is also suitable for long-distance imaging tests and can be customized according to different testing distances, lens parameters and application requirements.

SFRreg Resolution Test Chart

Product Specifications:

Parameter	CS-TC017 SFRreg Resolution Test Chart
ISO Chart Magnification	1X	2X	4X
Chart Size	100mm × 100mm	200mm × 200mm	400mm × 400mm
Chart Type	Reflective Type
Contrast Ratio	10:1 (4:1Optional)
