Distortion&Pre-Distortion Test Charts

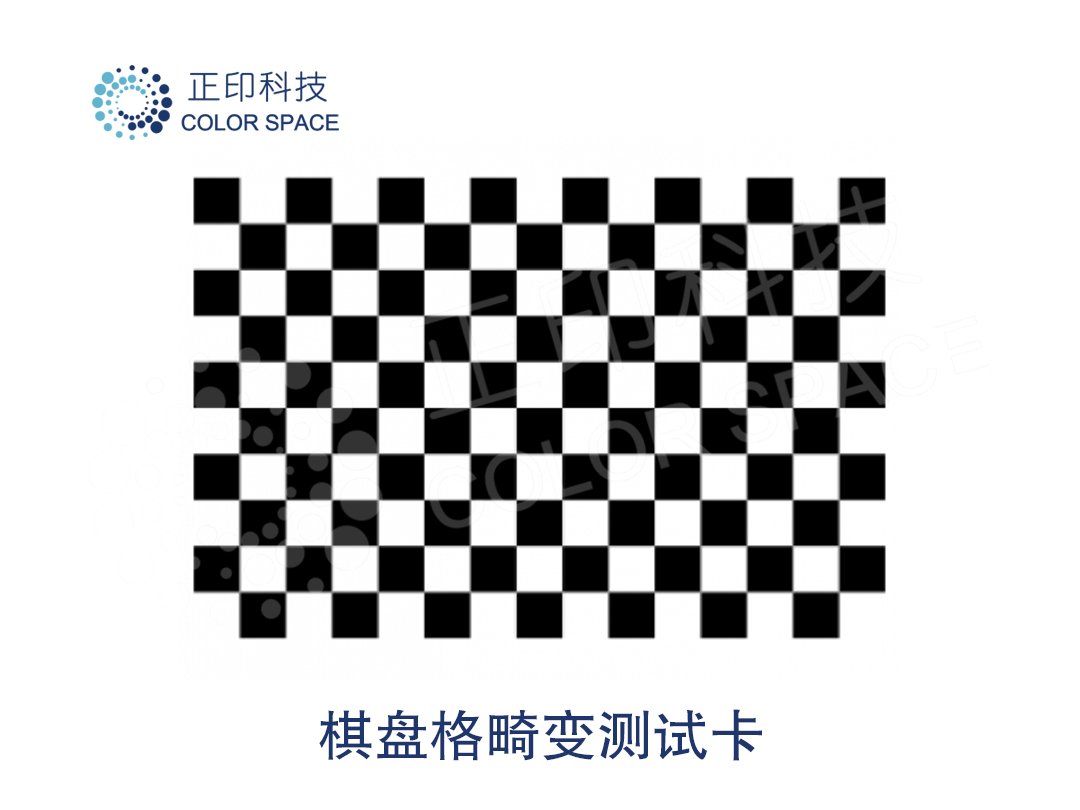

Checkerboard distortion test chart

Brand：ColorSpace
Model：CS-TC006
Product description: Checkerboard test chart is produced by a high-precision printer on non-glossy paper with checkerboard grid square size and customisable contrast. It can be imported into the imatest software Checkerb
INQUIRY

Checkerboard test chart - can be used to test parameters such as distortion, sharpness, etc. of imaging systems

This test chart is produced by a high-precision printer on non-glossy paper with checkerboard grid square size and customisable contrast. It can be imported into the imatest software Checkerboard module for analysis.

棋盘格测试卡

Test Chart Specifications

Parameter	CS-TC006 棋盘格测试卡
Model	CS-TC013/T
Dimensions	ISO Chart Scale	Model	Dimensions	Checker Size
	1X	CS-TC006-1X	100mm × 178mm	125mm × 200mm
	2X	CS-TC006-2X	200mm × 356mm	259mm × 400mm
	4X	CS-TC006-4X	400mm × 711.1mm	500mm × 800mm
Checker Pattern	12 Rows × 18 Columns
Chart Type	Reflective
Material	Matte Paper
Checker Square Size	Visible Light
