Camera Special Test Equipment

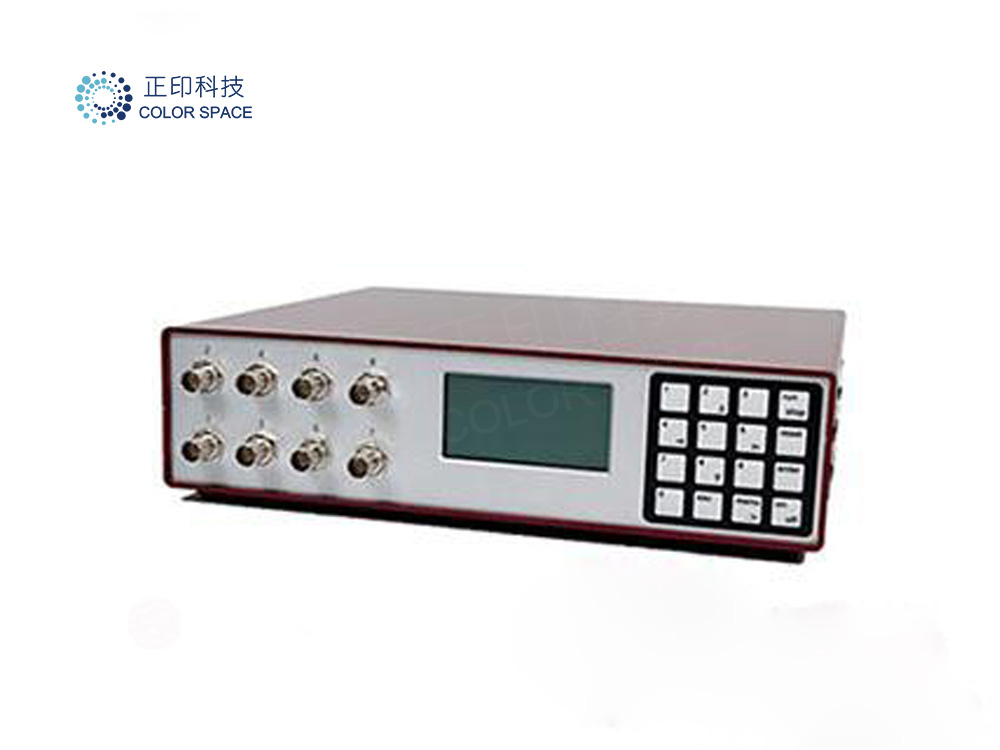

Flash test monitor / phone / tablet

Brand: IQL
Model: IQL-FTS
Product description: This test equipment can test from the system level to the module level, supporting LED lighting and Xenon lamp lighting. The standard configuration of this system includes 8 calibrated probes, which c
INQUIRY

Introduction of Flash Test Monitoring System for Mobile Phone/Tablet

Flash test monitoring/mobile phone/Tablet is provided by Image Quality Labs Company with a perfect flash measurement system for testing the intensity and uniformity of the flash system. This test tool can test from system level to module level, supporting LED and Xenon light. The standard configuration of the system includes eight calibrated probes, which can be adsorbed on a smooth metal plate surface by magnets to facilitate flexibility in testing.

Specifications

Input voltage	6.5-7.5 VDC/1A
Sensor interface	8 BNC
Slot Trigger	CMOS (0/5V) BNC, 10K, 5V
Analog output	±2.5V (max.±5V)
Input Resistance (Ri)	100R
Maximum current	2mA
BNC interface Data port	RS232-600-57600Baud, 8 bits, 1 stop position, No parity
Connector	DSUB 9-pin female
Measuring Function	flashlight mode - Lux
Pulse Mode	- Lux second
Operating Temperature	5-40°C
Storage Temperature	-10 to 50 °C
Dimensions	280mmX250mmX70mm/1Kg

For more information about the lighting system and its many options, please contact us. If you would like to learn more about a complete lab setup, please visit our Image Quality Lab Setup page.
