Computar M1224-MPW2 Industrial lens

Brand：Computar
Series：MPW2
Model：M1224
Product description: ColorSpace focuses on the imaging industry and can provide computar MP2 series industrial lens M1224, which is suitable for industrial cameras such as HIKROBOT/DAHENGIMAGING
INQUIRY

computar MPW2 series industrial lens M1224——which is suitable for industrial cameras such as HIKROBOT/DAHENGIMAGING

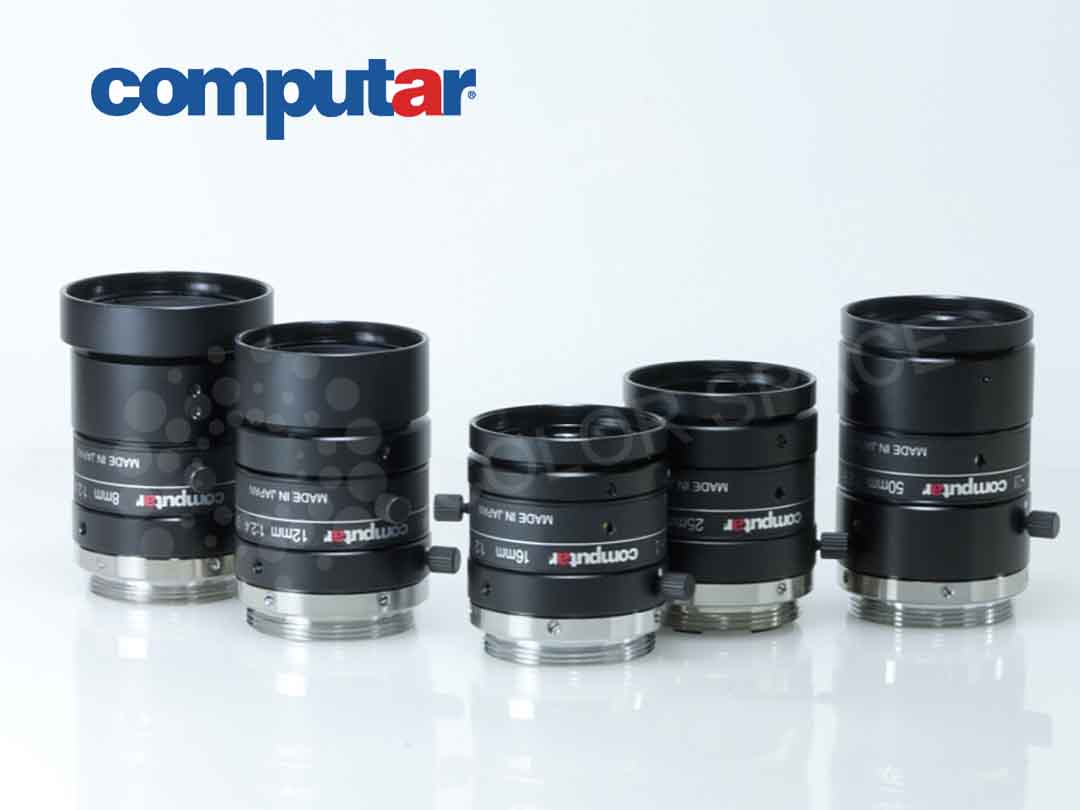

Computar MPW2 series: 2/3" 5 megapixel fixed focal length lens, 6 models, ultra low aberration (optical distortion 0.1% or less) high relative illumination with focus, aperture locking screw, various diameters available.

Computar可变焦工业镜头

M1224-MP2 parameter description：

Specifications		M1224-MPW2
Focal length		12mm
Maximum aperture ratio		1：2.4
Max. screen size		8.8mm * 6.6mm （Φ11mm）
Range of work	Aperture	F2.8-F16.0
	Spotlight	0.1 m - Inf.
Control	Aperture	Manual
	Spotlight	Manual
FOV	Diagonal	2/3”	48.6°	1/1.8”	39.1°	1/2”	36.5°
	Horizontal		39.8°		31.7°		29.5°
	Vertical		30.4°		24.0°		22.3°
Distortion		2/3”	-0.05%（y=5.5）	1/1.8”	-0.34%（y=4.32%)	1/2”	-0.35%(y=4.0)
Back focal length		14.4mm（WD=300mm）
Length of rear flange		17.526 mm
Interface		C-接口
Filter size		M30.5 P=0.5mm
Physical dimension		Φ29mm * 42.68mm
Weight		72g
Temperature		-10℃ ~+50℃

Working distance	Optical Release Large magnification	Extension ring	FOV
Working distance		Extension ring	2/3”		1/1.8”		1/2”
（mm)		（mm)	Horizontal	Vertical	Horizontal	Vertical	Horizontal	Vertical
900	0.0131	-	671.2	503.7	527.5	395.5	488.4	366.1
850	0.0138	-	634.6	476.2	498.7	373.9	461.8	346.1
800	0.0147	-	598.0	448.7	469.9	352.3	435.1	326.1
750	0.0157	-	561.4	421.2	441.1	330.7	408.4	306.1
700	0.016	-	524.7	393.7	412.3	309.1	381.8	286.1
650	0.018	-	488.1	366.2	383.5	287.5	355.1	266.1
600	0.019	-	451.5	388.7	354.7	265.9	328.4	246.1
550	0.021	-	414.8	311.2	325.9	244.3	301.7	226.1
500	0.022	-	378.2	283.7	297.2	222.7	275.1	206.2
450	0.026	-	341.6	256.2	268.4	201.1	248.4	186.2
400	0.029	-	305.0	228.7	239.6	179.5	221.8	166.2
350	0.033	-	268.3	201.2	210.8	157.9	195.1	146.2
300	0.038	-	231.7	173.7	182.0	136.3	168.4	126.2
250	0.045	-	195.1	146.2	153.2	114.7	141.8	106.2
200	0.056	-	158.5	118.7	124.4	93.1	115.1	86.2
150	0.073	-	121.8	91.2	95.6	71.5	88.4	66.2
100	0.104	-	85.2	63.7	66.8	50.0	61.8	46.2
