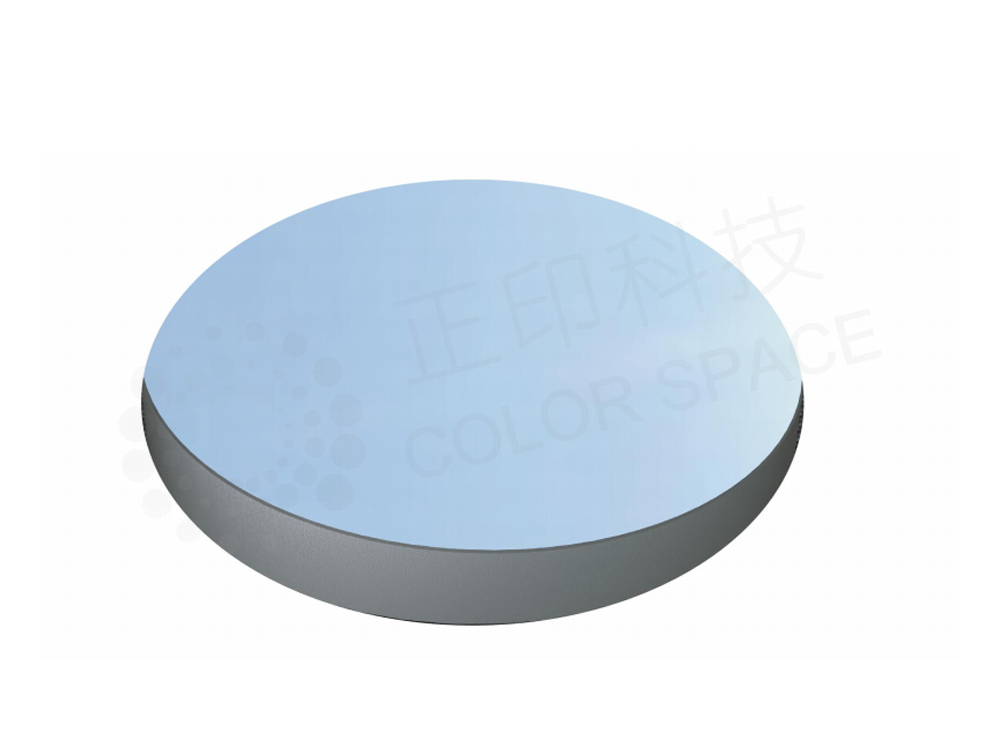

Coaxial Parabolic Mirror
A parabolic mirror is a precision reflective optical component designed to collimate or focus light beams with high efficiency. Due to its reflective optical design, it provides broad spectral compatibility and eliminates chromatic aberration, making it suitable for a wide range of optical applications.
Coaxial parabolic mirrors are widely used in astronomical observation systems, spectroscopy equipment, laser beam expansion systems, infrared imaging systems, solar concentration systems, projection systems, and optical transmitting/receiving devices.
Specifications
|
No. |
Clear Aperture (mm) |
Focal Length (mm) |
Surface Accuracy | Coating | ||||
| 1 |
200 |
800 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 2 | 200 | 1000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 3 | 200 | 1200 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 4 |
200 |
1600 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 5 | 200 | 2000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 6 |
|
2000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 7 | 350 | 3000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 8 |
400 |
4000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
| 9 | 500 | 5000 |
Better than RMS λ/30 @632.8nm |
Gold / Silver / Aluminum Optional |
||||
