Transmission Collimator

Product description: The Transmission Collimator is an optical instrument designed to generate parallel light beams, widely used in optical bench systems for focal length and optical parameter measurements in research, pr
INQUIRY

Transmission Collimator

The Transmission Collimator is a fundamental optical instrument used to generate high-quality parallel light beams. It serves as a core reference component in optical bench systems.

When integrated with various accessories, it enables a wide range of optical parameter measurements and system evaluations.

This instrument is widely applied in optical system development, production testing, and educational laboratories, helping establish stable and repeatable measurement conditions.

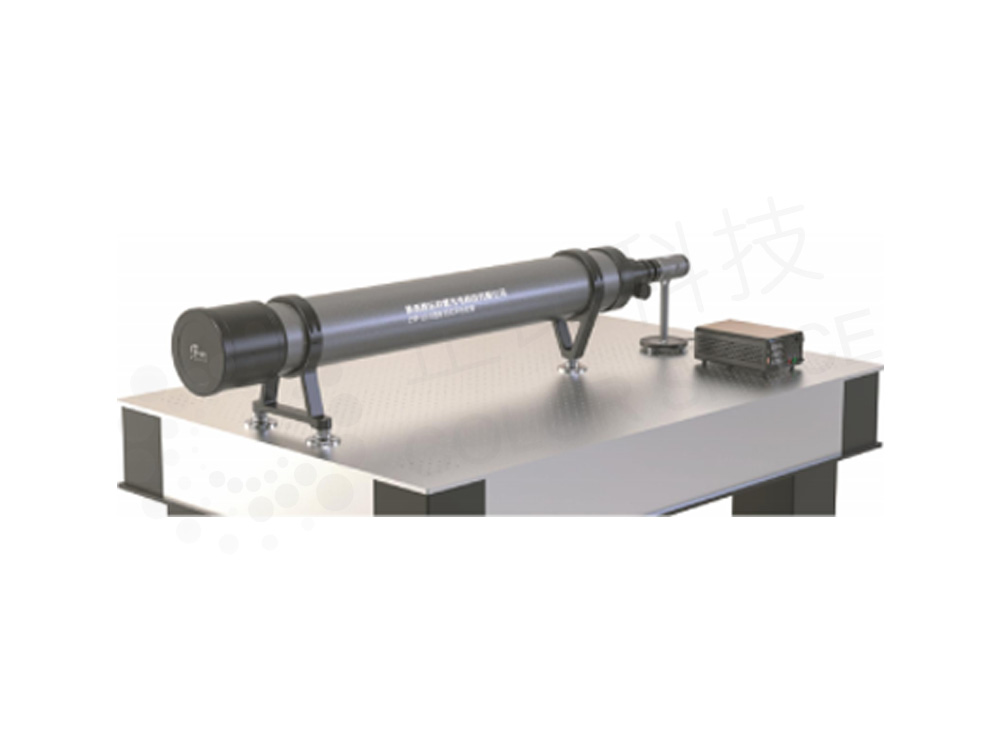

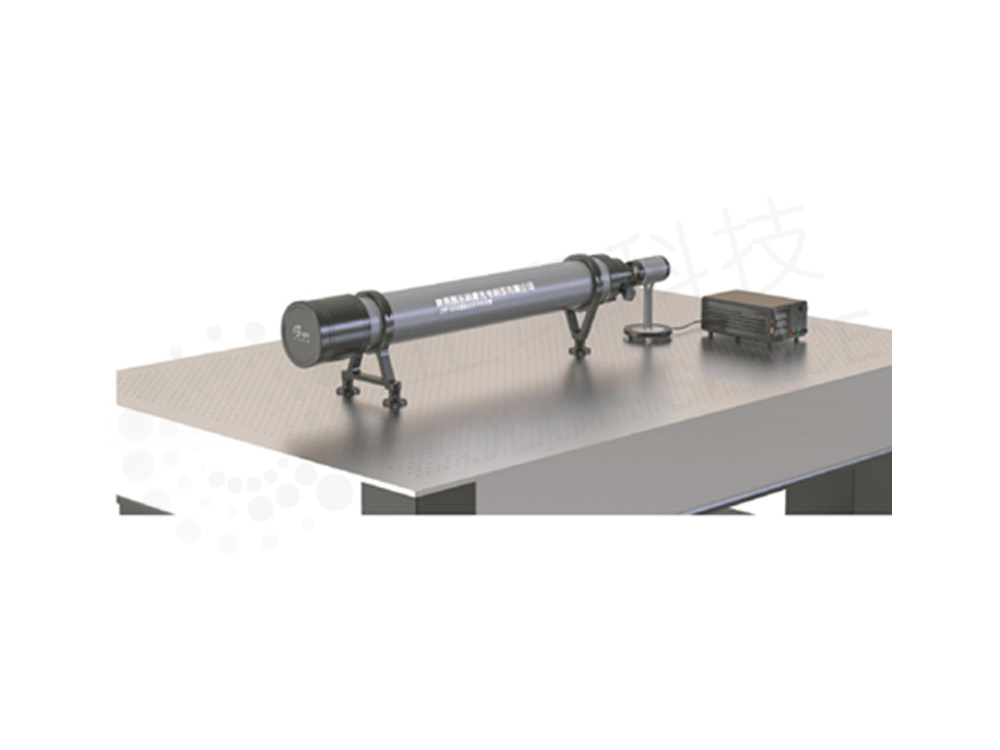

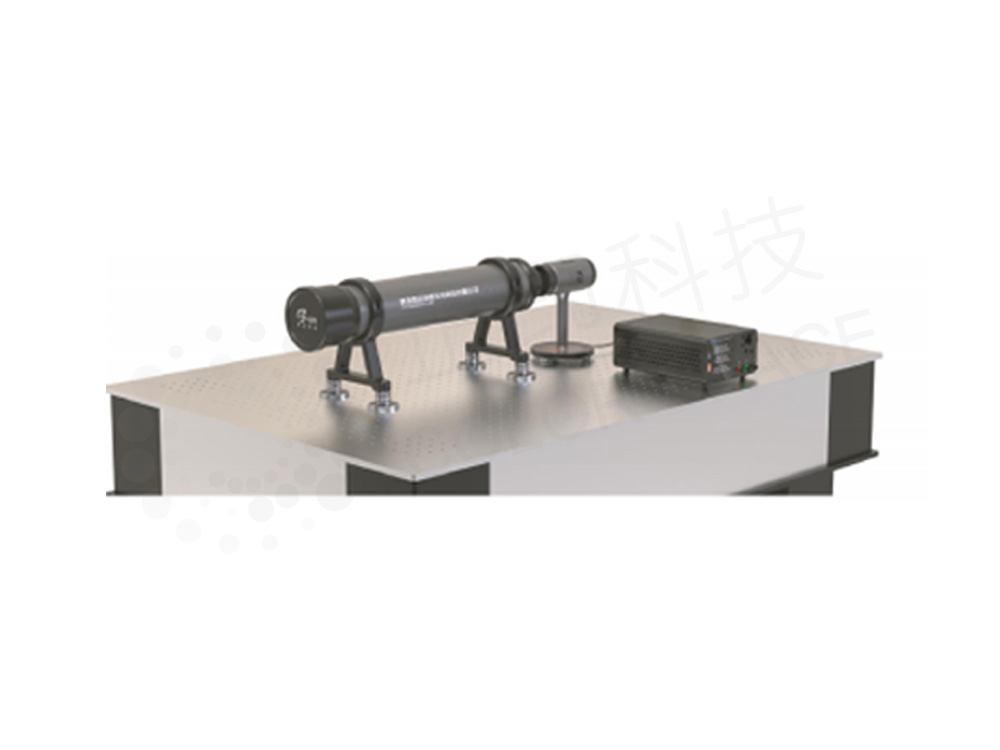

0508 Type	1010 Type	1313 Type

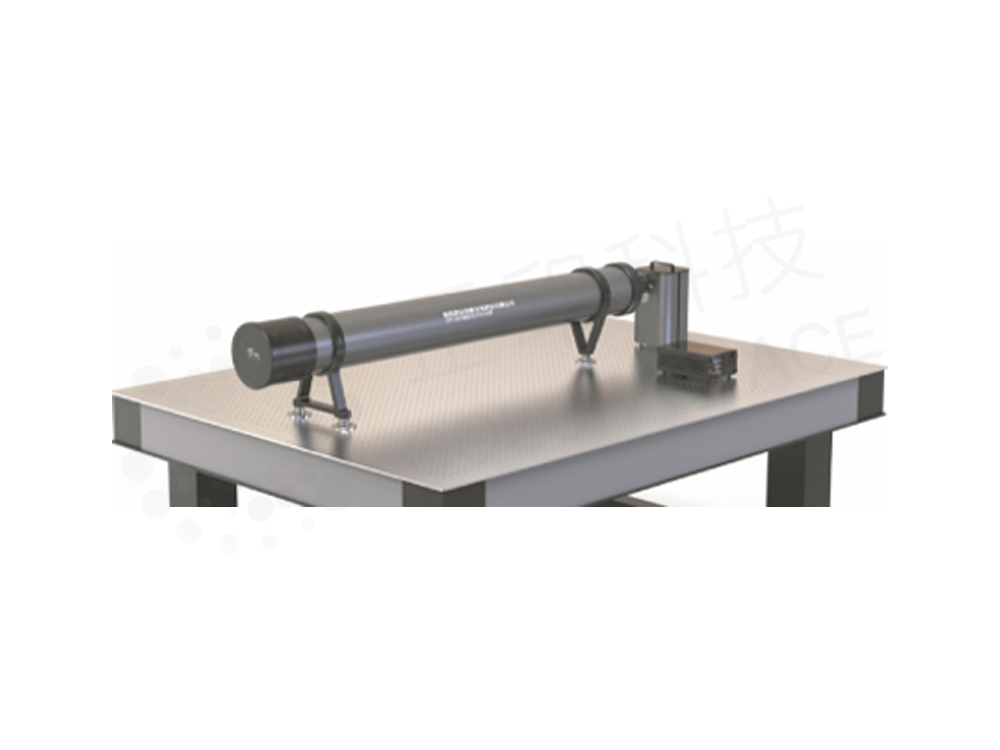

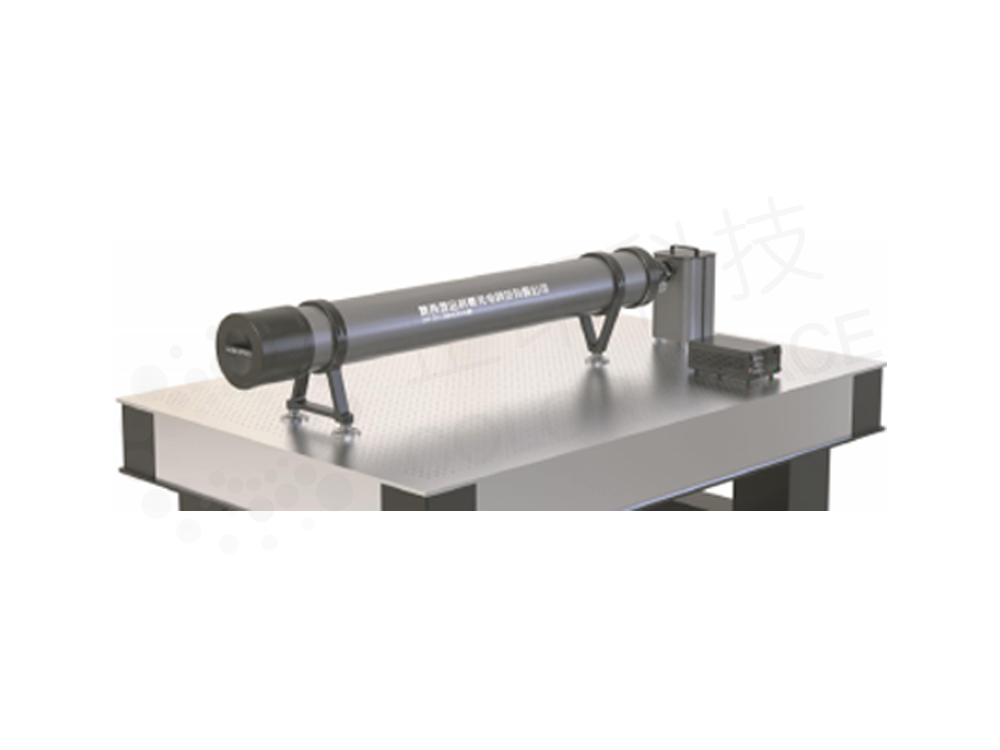

1515 Type	1615 Type	2020 Type

Parameter

Parameter	0508 Type	1010 Type	1313 Type	1515 Type	1615 Type	2020 Type
Optical System	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission
Effective Aperture	Ø 80mm	Ø 100mm	Ø 130mm	Ø 150mm	Ø 148mm	Ø 200mm
Resolution	≤1.8''	≤1.3''	≤1''	≤0.9''	≤0.9''	≤0.65''
Working Band	380-780nm	380-780nm	380-780nm	380-780nm	380-780nm	380-780nm
Focal Length	500mm	1000mm	1300mm	1500mm	1600mm	2000mm
Field of View	≥3°	≥1°36'	≥1°14'	≥1°4'	≥1°	≥0.8'
Parallelism	≤10''	≤10''	≤10''	≤10''	≤10''	≤10''
Weight	8KG	16KG	17KG	40KG	50KG	90KG
